Overview
The B011-000 PS/2 to SUN interface converter allows you to
control a SUN workstation from a PS/2 keyboard, PS/2 mouse
and PC monitor by translating their signals to SUN keyboard,
mouse, and monitor signals. In addition, the B011-000 fully sup-
ports Tripp Lite’s existing KVM switches, so you can use them to
easily integrate SUN workstations into your KVM network.
Features
M Hot Plug Support for PS/2 Keyboard and Mouse
M DIP Switch Selectable Display Resolution
M DIP Switch Selectable Screen Saver
M DIP Switch Selectable Mouse Speed
M No Power Adapter Necessary
Installation
1. Plug the cables from your PS/2 keyboard and PS/2 mouse
into the mini-DIN 6 pin connectors on the Console side of the
B011-000.
Note: 1. The mouse used with a SUN workstation is a three
button mouse. Use a three button PS/2 mouse to
fully emulate its functions.
2. If connecting to a KVM switch, use a PS/2 KVM
cable kit to connect the B011-000 to your switch.
2. Plug the cable from your PC monitor into the HD15 connector
on the Console side of the B011-000.
3. Use a 13W3 male-to-male cable to connect the SUN
workstation’s Video Out port to the B011-000’s Video In port.
4. Use an MD8 male-to-male and PIN to PIN cable to connect
the SUN workstation’s keyboard and mouse port to the
B011-000’s keyboard and mouse port.
DIP Switch Settings
Select the video resolution, the amount of idle time before the
screen saver comes on, and the mouse speed with the DIP
switch as follows:
Video Resolution SW1 SW2 SW3
1152 x 900 (76Hz) ON OFF OFF
1152 x 900 (76Hz) ON ON OFF
1152 x 900 (66Hz) OFF OFF ON
1280 x 1024 (76Hz) ON OFF ON
1600 x 1280 (76Hz) OFF ON ON
Screen Saver Time Out SW4 SW5 SW6
5 Minutes OFF ON ON
10 Minutes OFF OFF ON
20 Minutes OFF ON OFF
30 Minutes OFF OFF OFF
Monitor Always ON ON X X
Mouse Speed SW7
High ON
Normal OFF
LEDs
There are three LEDs to indicate operating status:
M The ACTIVE LED indicates that PS/2 keyboard or mouse
data is being transmitted.
M The EXTEND LED indicates that the Right Control key (RCtrl)
is active.
M The COMPOSE LED indicates that the Compose key is latched.
Specifications
Function Specification
Power Consumption 50mA (max)
Connectors Video In 13W3 Female
Video Out HD15 Female
Sun KB & Mouse Mini DIN 8 Pin Female
PS/2 KB Mini DIN 6 Pin Female
PS/2 Mouse Mini DIN 6 Pin Female
LEDs Active Green
Extend Yellow
Compose Yellow
DIP Switch 8 bits
Operating Temperature 5 ~ 40 o C
Storage Temperature -20 ~ 60 o C
Humidity 0 ~ 80% (RH)
Housing Plastic
Weight 150g
Dimensions (L x W x H) 100 x 80 x 36 mm

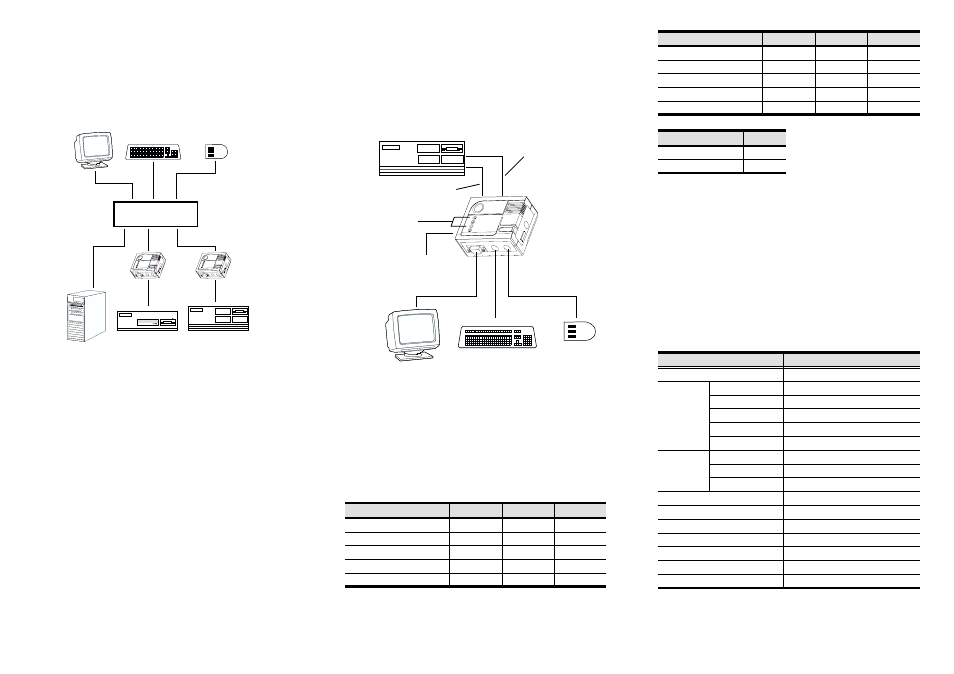

- 2 - - 1 - - 3 -
SUN Station
B011-000 B010-000
KVM Switch
MAC
PC
B011-000
SUN Station
LEDs
MD8
13W3
DIP SW
