Feedback System Design

4-3

Technical Information

operational amplifier (R22, R23, C20, C23, and C24) was eventually reduced
from 400 kHz to 252 kHz to optimize performance; compensation for this is
discussed later. Notice that in Figure 4−8, the switching frequency of each
output is 250 kHz, but the differential frequency is 500 kHz. The poles greater
than 400−kHz from the low-pass filters do not affect the stability because they
are ten times the corner frequency. The phase from a pole starts at the pole
frequency divided by ten. If the pole is ten times greater than the corner
frequency, the phase margin is not affected.

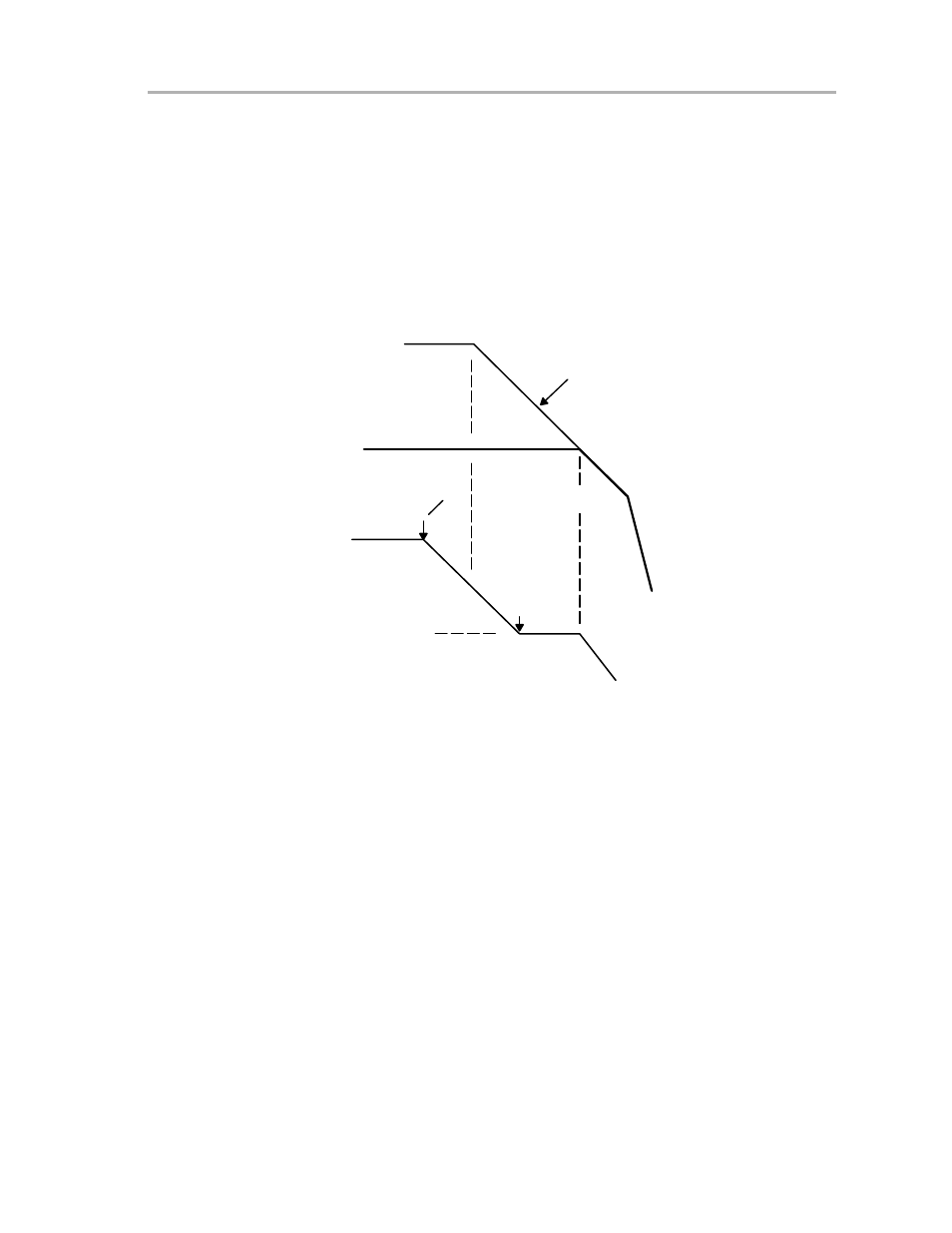

Figure 4−2. Open− and Closed−Loop Frequency Response

Open Loop Gain

Closed Loop Gain

Fc = 40 kHz

0 Degrees

−90 degrees

Phase

Gain − dB

Frequency − Hz

20 dB /

Decade

X

F

P0

F

P0* 10

F

P0

10

X

X

Low Pass

Filters’ Poles

X

Figure 4−2 shows what the open−loop gain and closed−loop gain would look
like if there were no other poles or delays in the system. The integrator pole
causes the open−loop gain to decrease at a rate of 20 dB per decade after the
pole and causes the phase to shift by 90 degrees over a span of two decades
centered at the pole frequency.

Phase Margin

+

180

° )

Phase (at Fc)

(1)

From Equation 1, the phase margin of this system is 90

_

. The device needs

0

_

to 180

_

phase margin for stability, and most designs require 35

_

to 180

_

.

This design would work. However, the TPA2001D1 has an internal feedback
loop with an 80-kHz corner frequency, which adds a pole to the system and
impedes the stability. The added 80-kHz pole drops the phase margin to 45

_

,

which is still acceptable if there were no other delays.

The added delays decrease phase margin; therefore, more phase margin is
needed to ensure stability. A zero is added to cancel the pole, which returns
the overall closed−loop frequency response back to the original design. The
zero can be created by adding a resistor in series with the integrator feedback
resistor. Figure 4−3 shows the effects of the added zero.
