PARTS INFORMATION

[email protected]

Page 17

TPS-260PF

24” & 36” POLE SAW EXTENSION

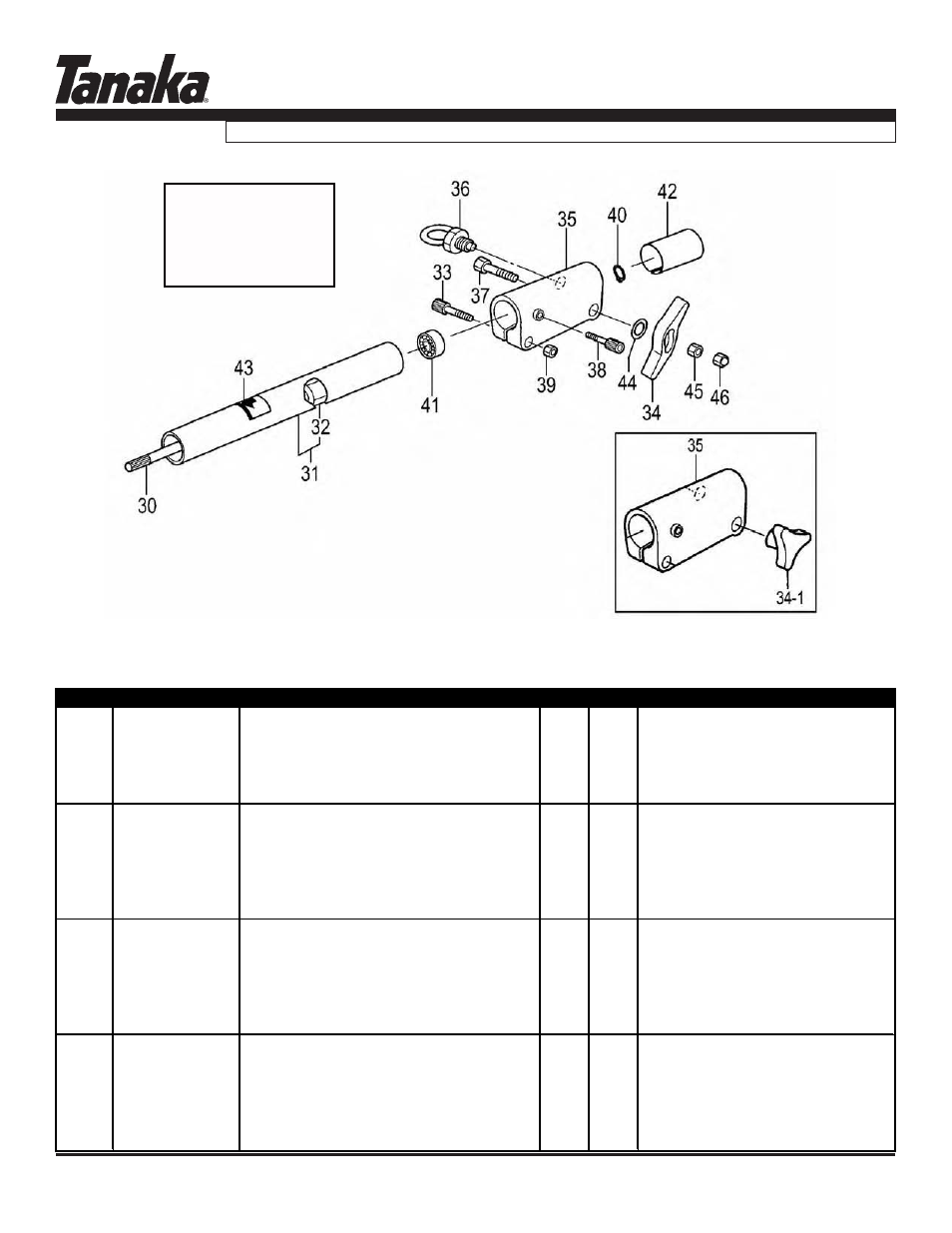

• FIGURE 14

ITEM PART NUMBER

DESCRIPTION

24"

36"

COMMENTS

14 3433233180

SHAFT,DRIVE

1

14 3433003980

SHAFT,DRIVE

1

14 3413230881

PIPE,DRIVE SHAFT

1

~9085369

14 3413230882

PIPE,DRIVE SHAFT

1

9085370~

14 3413003980

PIPE,DRIVE SHAFT

1

14 3473730090

BUSHING ASSY

1

14 3473730090

BUSHING ASSY

2

14 99461050254

BOLT,HEX HOLE,5X25S

1

1

5123370081

KNOB,HANDLE

1

~5004220

14 5123338P20

KNOB,HANDLE

1

1

5004221~

14 2803233122

COUPLING,TPS

1

1

14 3523233180

PIN,LOCK

1

1

14 99021060351

BOLT,6X35

1

~5004220

14 99021060504

BOLT,6X50

1

1

5004221~

14 99051050103

BOLT,HEX.HOLE,5X10

1

1

14 99101050041

NUT,5

1

1

14 99350010002

RING,STOP,C-10 EX

1

1

14 99961690001

BEARING,BALL,#6900ZZ

1

1

14 3483313020

COLLAR,B

1

1

14 92337400200

DECAL,LEVEL

1

1

14 3590210320

WASHER,CLUTCH,B

1

1

14 99101060011

NUT,6

1

1

5004221~

14 99142060012

NUT,CAP 6

1

1

5004221~

748511
748512

14-1
