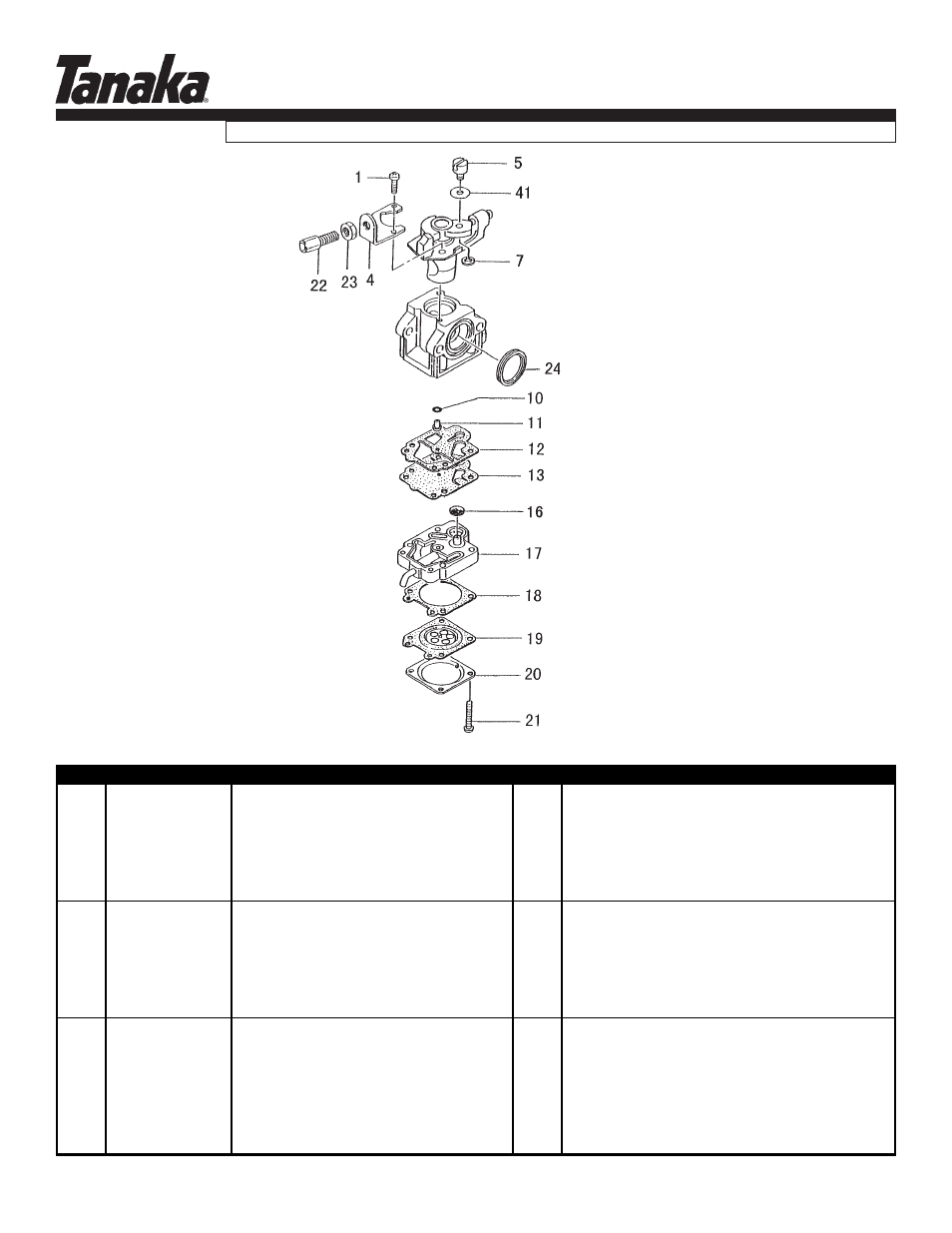

CARBURETOR • FIGURE 6

ITEM PART NUMBER

DESCRIPTION

QTY

COMMENTS

4550099M90

CARBURETOR,ASS'Y

1

6-1

51425001200

SCREW,SET

2

6-4

54425164200

STAY,ADJUST,CABLE

1

6-5

53925120200

SWIVEL

1

Carburetor Repair Kit - 650-25124-900

6-7

48925100200

RING,STOP

1

Gasket/Diaphragm Kit - 652-25124-900

6-10

55025100200

O-RING

1

6-11

5992000W430

JET,MAIN,#43

1

6-12

~ ~ ~

GASKET,PUMP

1

~ Contained in Carb Kits

6-13

~ ~ ~

DIAPHRAGM,PUMP

1

6-16

57825007200

SCREEN,INLET

1

6-17

5752514780

BODY,PUMP ASS'Y

1

6-18

~ ~ ~

GASKET,DIAPHRAGM

1

6-19

~ ~ ~

DIAPHRAGM,METERING

1

6-20

47625004200

COVER,DIAPHRAGM

1

6-21

54825101200

SCREW,SET

4

6-22

61425137200

ADJUSTER,CABLE

1

6-23

99101060013

NUT,6

1

6-24

4310634C200

GASKET,CLEANER

1

6-41

5492516520

WASHER,THRUST

1
