Jus' Print RP-3200 User’s Manual
6

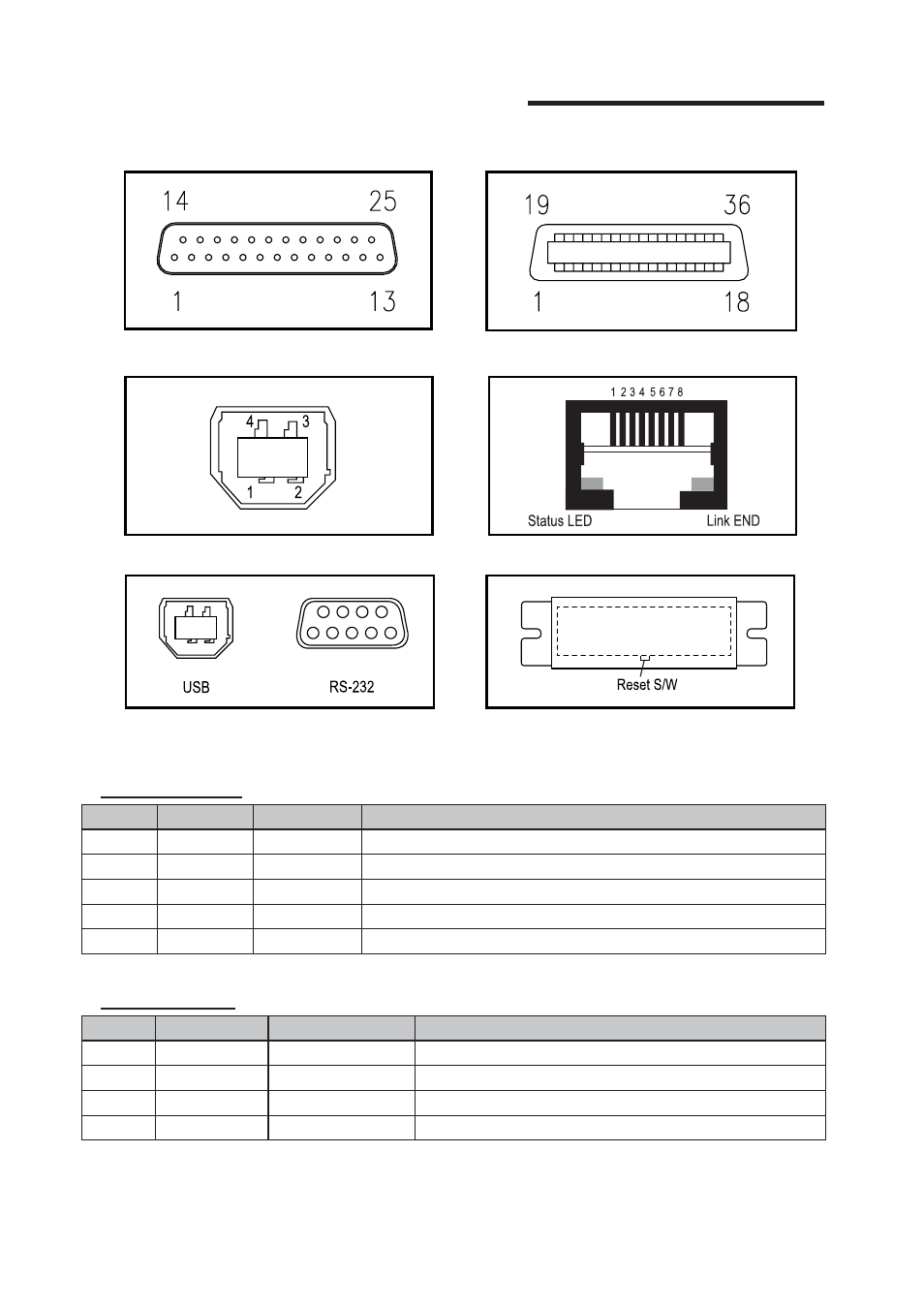

2-2-1. Interface Connector
Serial Interface
PIN
SIGNAL
I/O
DESCRIPTION
2
TXD
Output
Printer transmit data line RS-232C level
3
RXD
Input
Printer receive data line RS-232C level
4, 20
DTR
Output
Printer handshake to host line RS-232C level
6
DSR
Input
Data Send Ready
1, 7
GND
-
System Ground
USB Interface
PIN
SIGNAL
I/O
DESCRIPTION
1
+5V
-
+5V
2
DATA-
-
Printer transmit data line
3
DATA+
-
Printer transmit data line
4
GND
-
System Ground
