Page 3
NATURAL GAS REQUIREMENTS -
Inlet Connection: 1/2" NP with 3/8" NPT reducer adapter.
Supply Pressure: 6" to 14" W.C.
Manifold Pressure: 5" W.C.
PROPANE GAS REQUIREMENTS -
Inlet Connection: 1/2" NP with 3/8" NPT reducer adapter.
Supply Pressure: 11" to 14" W.C.
Manifold Pressure: 10" W.C.

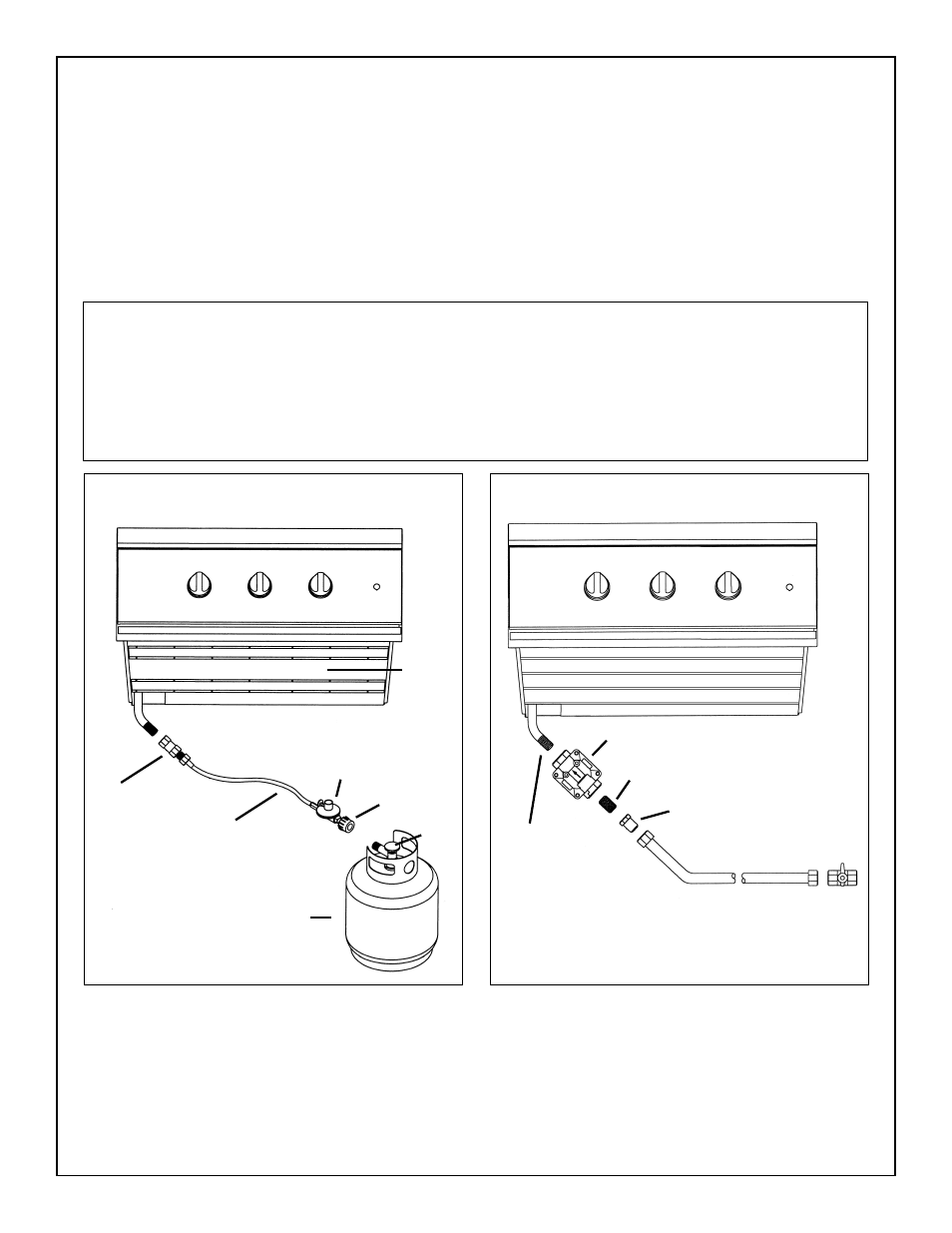

FIGURE 1 – PROPANE HOOK-UP
SECTION 2: GAS REQUIREMENTS
IMPORTANT: Un robinet manuel d'isolement doit étre installé à l’extérieur de l’appareil, dans
un emplacement accessible avec l’unité installée dans la module. Assurez-vous que le robinet est
fermé avant de brancher l’appareil.
▲
!
▲
!
IMPORTANT: A manual gas shut off valve must be installed external to the appliance, in
a location accessible with the unit installed in the enclosure. Make sure the valve is turned
off prior to connecting the appliance.
FIGURE 2 – NATURAL GAS HOOK-UP
Bottom of
unit
➞
Coupling 1/2" NPT fitting
threading compound on
these threads must be
resistant to LP gas
L.P. Regulator hose
assembly 10" W.C.
➚
➚
Type 1 Regulator
Regulator Adapter
➞
➞
➞ L.P. Tank
(Type 1)
➞
Main
Valve
GAS CONSUMPTION
The total gas consumption of the Thermador ® Char Glo ® barbecues with all burners on "HI" is as follows:
CGBD30RX = 52,000 BTU/HR
CGBD36RX = 77,000 BTU/HR
CGBD48RSBX = 107,000 BTU/HR
CGBD48RX = 109,000 BTU/HR
CGBD30RX Shown CGBD30RX Shown
➚
Regulator 5.0" W.C.
1/2" NPT
Close Nipple
Adapter 1/2" NPT
to 3/8" flare fitting
Installer supplied
shut-off Valve must
be easily accessible
Threading compound must
be resistant to L.P. gas
➞
➞
➞
