TL-WN510G/TL-WN550G/TL-WN551G 54M Wireless Adapter User Guide
This utility is available only in PCI solutions.
To run the Troubleshooting Utility:
From the Diagnostic tab, click Troubleshooting to run the Troubleshooting Utility.
OR: Select Action > Troubleshooting from the action menu.
Click Run Test to run the troubleshooting utility tests:
Driver Installation test
Card Insertion test
Card Enable test
Radio test
Association test
Authentication test
Network test

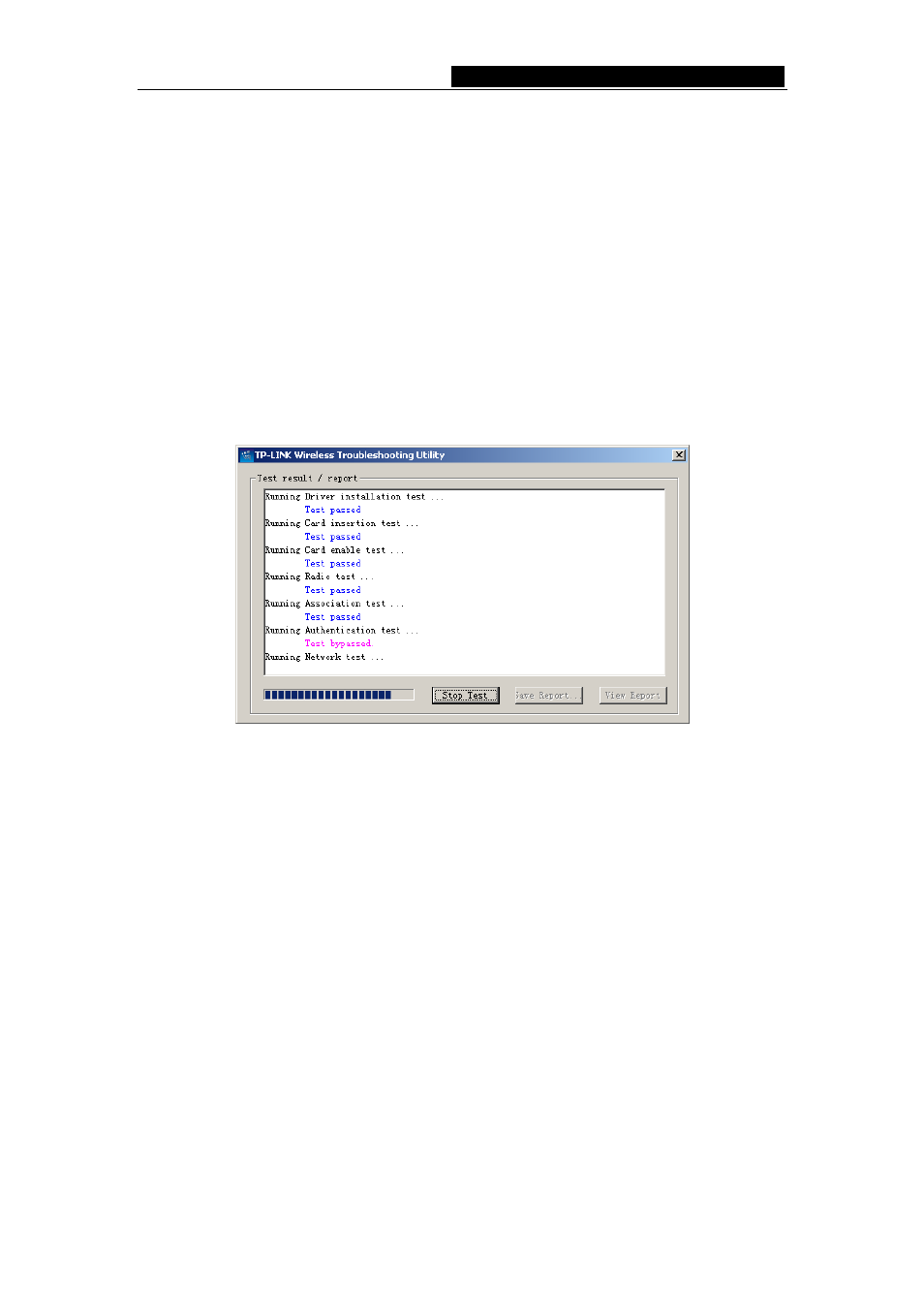

Figure 3-15 Troubleshooting Utility
The utility posts the test results as:
Test passed - Successful test completion
Test failed - The test failed because the wireless adapter is configured improperly to
associate to an access point
Test bypassed - The test was not required for the active profile
To view a report of the tests, click View Report.
To save the report, click Save Report and browse to the directory to save the report
to.
Name the file and click Save.
Click Start Test to re-run the troubleshooting utility.
- 19 -
