8
Targus Universal Notebook Docking Station with Video
• Green Tx light illuminates when connected to a
network and the yellow Rx light flashes when data is
transmitting to or from the network.
NOTE: T HE DOCKING STATION SUPPORTS HOT SWAPPING OF THE NETWORK
CABLE .
• USB lights will glow when the docking station is
connected to your computer.
• Always On LED glows green when button is depressed.

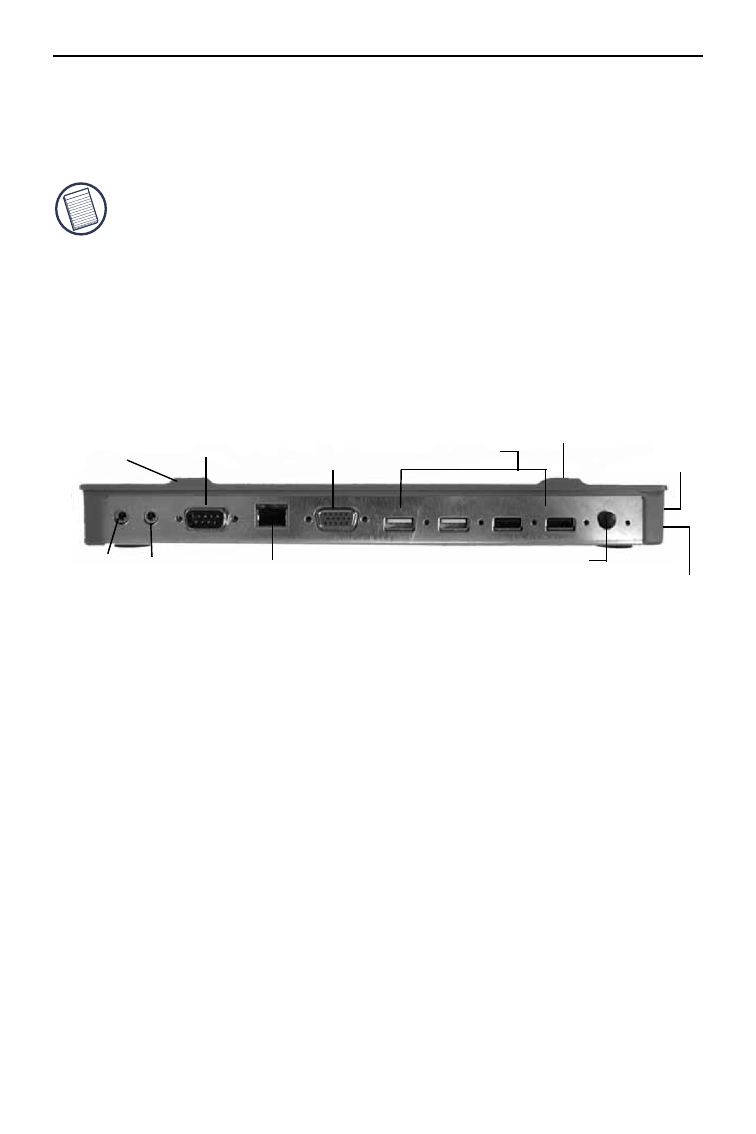

Docking Station Ports
Connecting New Devices
To avoid possible damage when connecting a new
device, do not force the cable connector into the port on
the docking station. If the cable connector does not
attach smoothly, turn the connector over and try attaching
it again.
Connecting a Serial Mouse
To connect a serial mouse, attach the cable connector to
the serial port on the docking station.
USB Ports Serial
Audio Audio
In Out
VGA
Always On
AC Adapter
Laptop
USB to PC
Network
Connection
Laptop Support Pad
Support
Pad
