INSTALLATION / OPERATION INSTRUCTIONS
INSTALLATION OF CASTORS

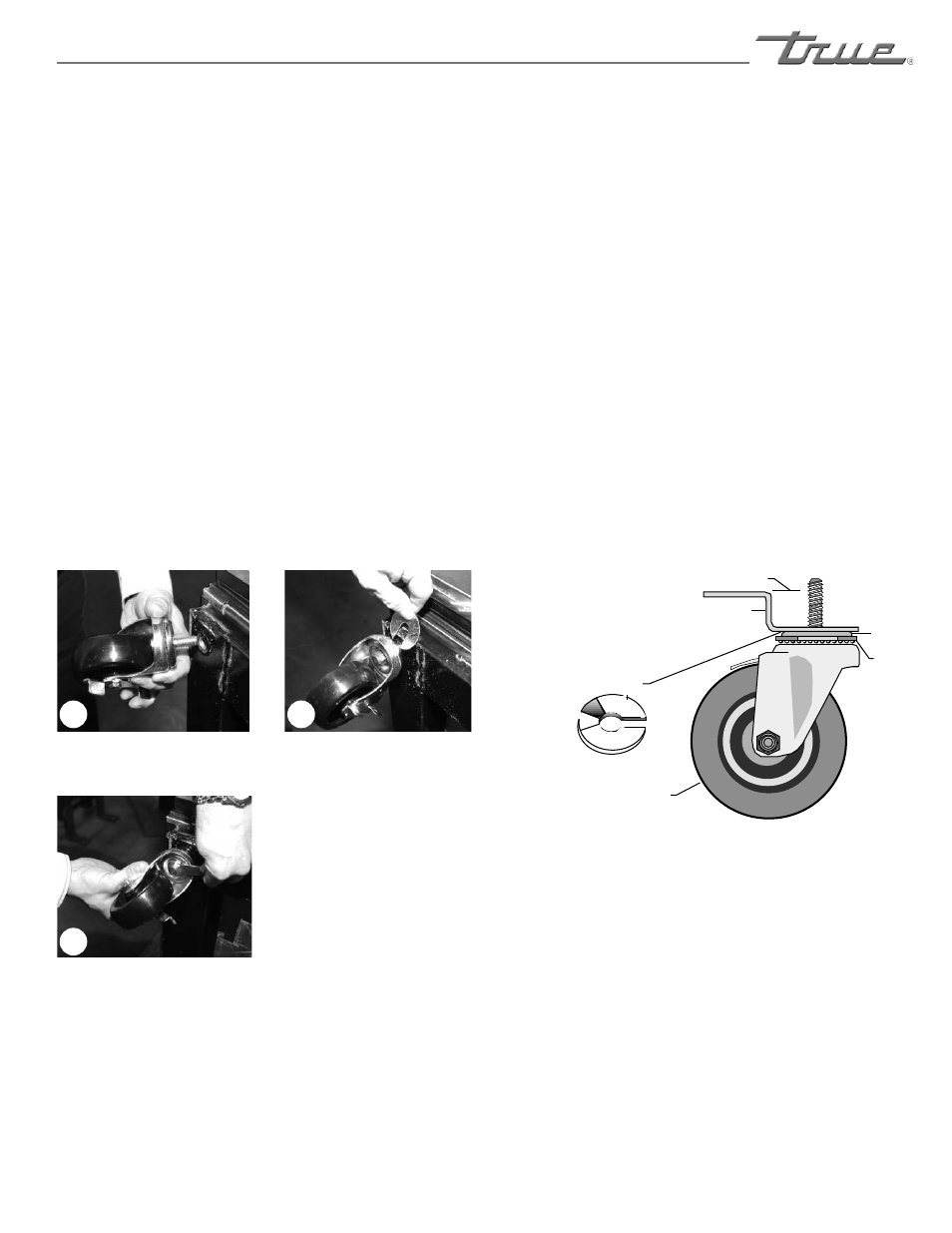

IMPORTANT SAFEGUARD FOR INSTALLATION OF LEG/CASTOR (IMAGES 1-3 DEMONSTRATE PROCEDURE)
Thread castor into the
underside of cabinet frame
rail.
1 2
For leveling, insert the shim
between the castor and frame
rail.
3
Use the tool provided to
tighten the castor into place.
Leveling Shim
Castor
Bearing
Race
Lower Rail Assembly
Snug Fit
Here
Rail End
Step 3
Securing Castors
To obtain maximum strength and stability of the unit,
it is important that you make sure each castor is secure.
The bearing race on the castor of the top edge of the
leg must make firm contact with the rail.
Unit leveling
Four leveling shims have been provided for leveling castored
units positioned on uneven floors. Shims must be positioned
between rail end and bearing race. True recommends a four
shim limit to any single castor.
A. Turn the bearing race counter-clockwise until the
cabinet is level. Level front to back and side to side
(diagonally).
B. Install the desired number of shims, making sure the
slot of the shim is in contact with the threaded stem of
the castor.
C.
If more than one shim is used, turn the slot at a 90°
angle so they are not in line.
D.
Turn the bearing race clockwise to tighten and secure
the castor by tightening the anchoring bolt with a 3/4
inch open-end wrench or the tool provided.
CAUTION
To avoid damage to lower rail assembly, slowly raise
unit to upright position.
