Model Information
TCS-081C
The TCS-081C is a compact passive two-way loudspeaker designed for use in a wide
range of fixed installations. It consists of an 8” reflex-loaded low frequency driver and a
1” high frequency compression driver on a 100°H x 60°V Converging Elliptical
Waveguide™ in an optimally tuned trapezoidal enclosure constructed from 12mm (1/2”)
birch plywood.

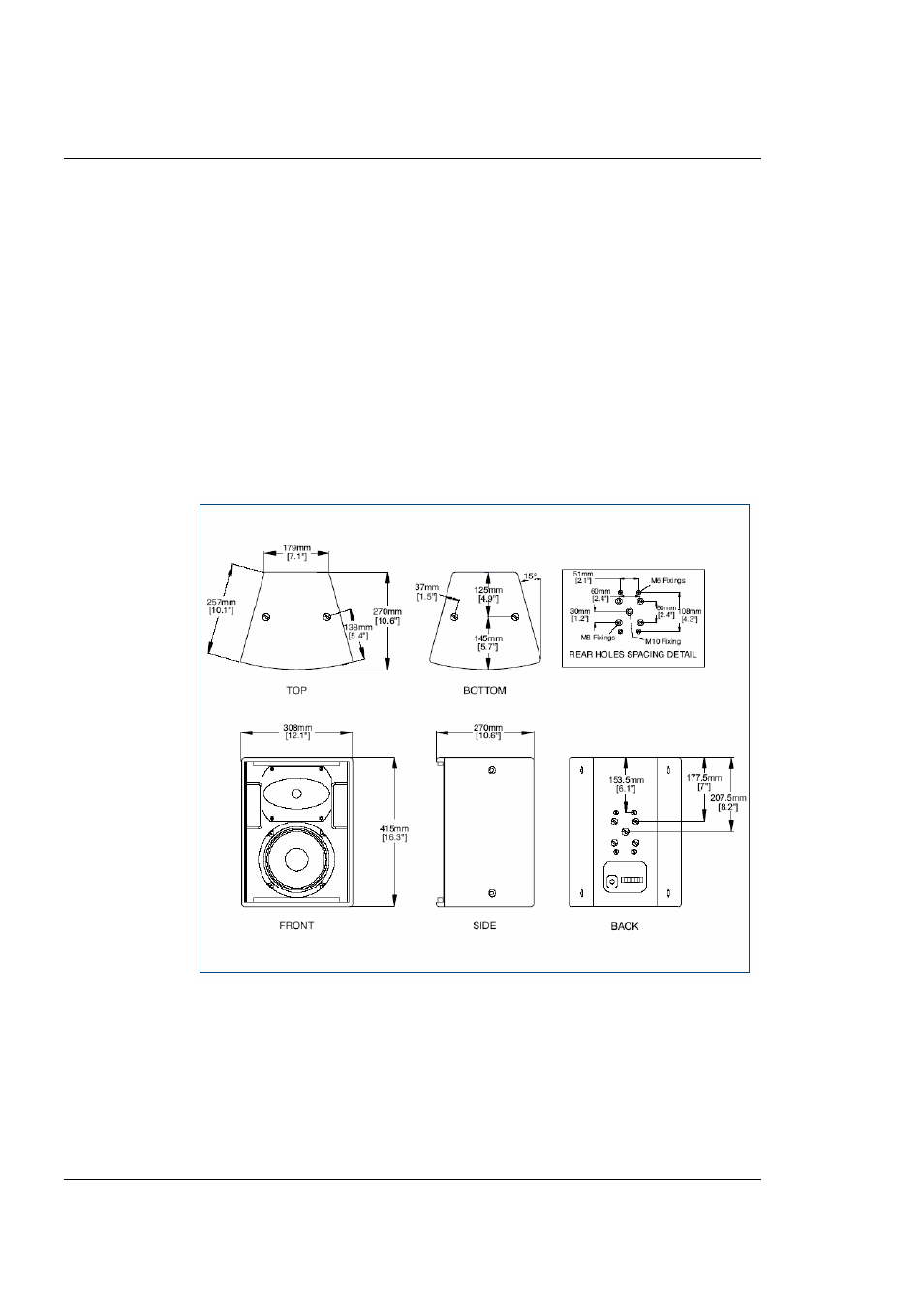

The cabinet is fitted with M8 internal rigging points on the rear panel which enable it to
be permanently installed using the Turbosound WB-20 wall bracket, or CB-55 ceiling
bracket. Four M6 internal rigging points are also provided for use with OmniMount™
series 30 brackets.
