DC-315 Series User’s Manual
3 3
2.1 Board Layout

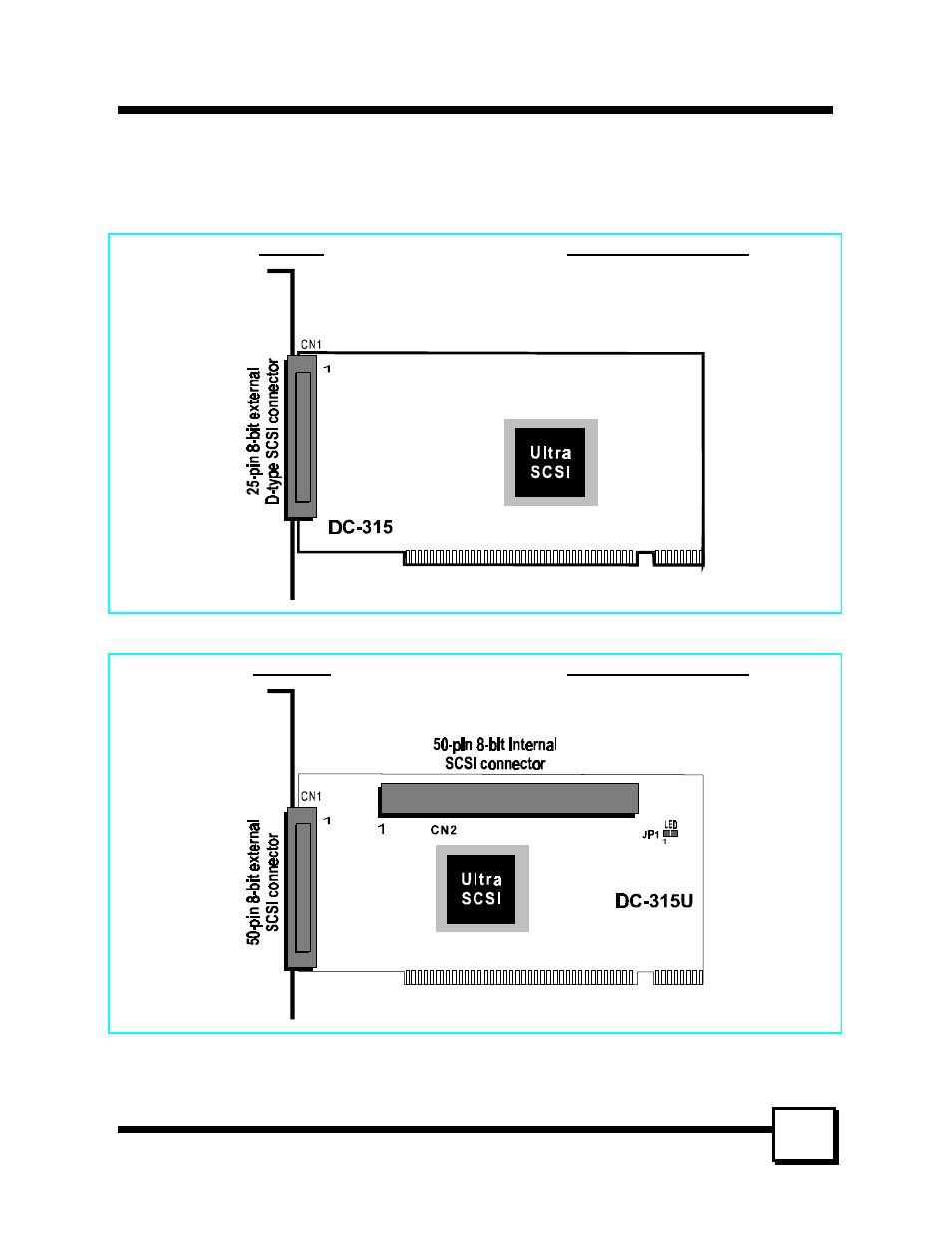

The following figures illustrate the jumper and connector locations for the DC-315 Series
PCI SCSI Host Adapters:
DC-315 Ultra SCSI-3 adapter
DC-315U Ultra SCSI-3 adapter
