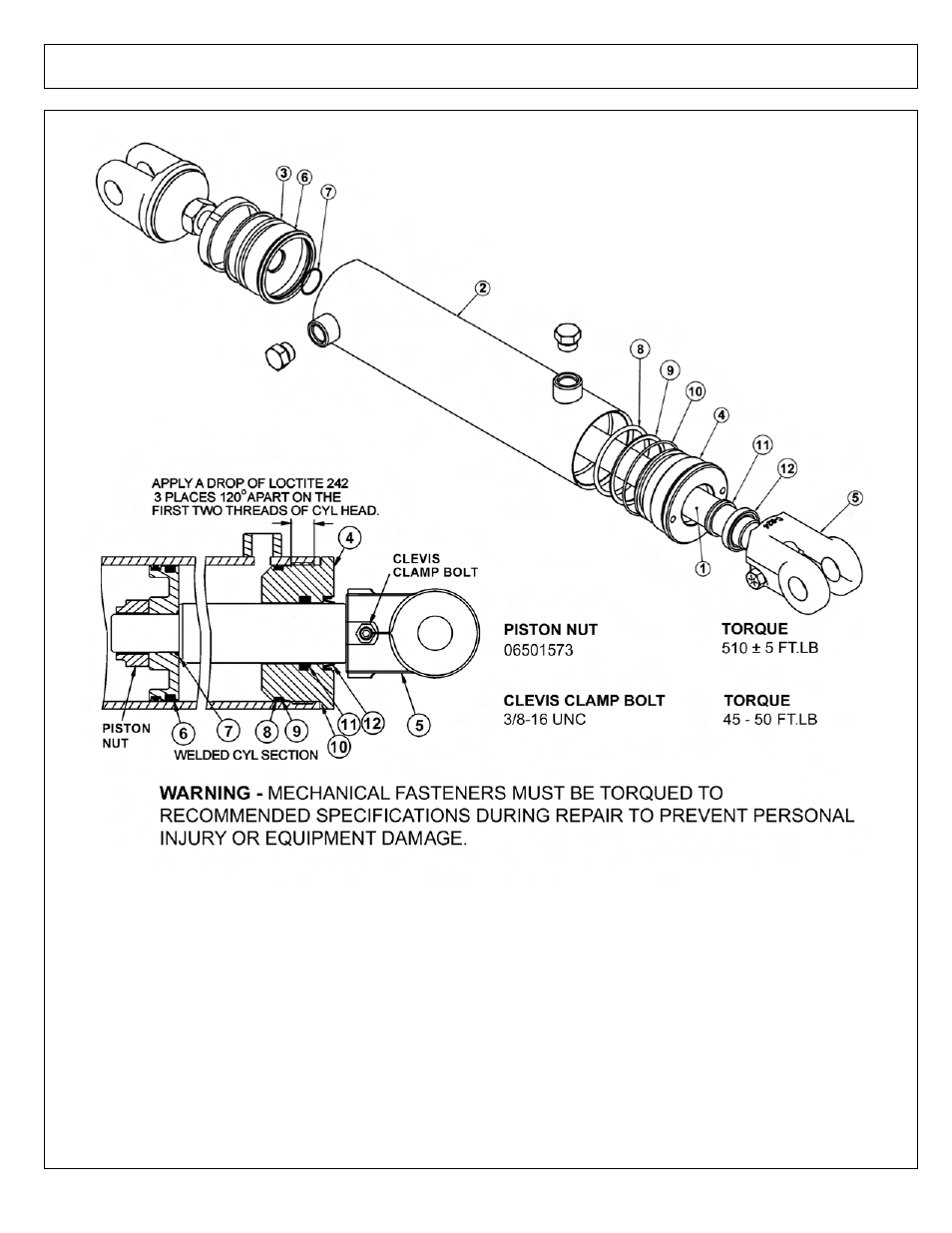

4IN X 20IN WELDED CYLINDER BREAKDOWN
ITEM
PART NO. QTY.
DESCRIPTION
------
06501022
-
HYDRAULIC CYLINDER COMPLETE
1
06501556
1
ROD
2
06501557
1
TUBE WELDMENT
3
06501558
1
PISTON
4
06501559
1
CYLINDER HEAD
5
6T0172
1
CLEVIS
------
30172
-
CLEVIS (FOR EXTENDED BOOM)
06501560
-
SEAL REPAIR KIT (ITEMS 6 THROUGH 12)
