Tannoy Di8DC - Manual (Page 8)

Di8DC
Tannoy United Kingdom
Tannoy North America
Tannoy Deutschland
Tannoy France T: 00 44 (0) 1236 420199
T: 00 1 (519) 745 1158
T: 00 49 (180) 1111 881
T: 00 33 (0)1 7036 7473 E: [email protected]
E: [email protected]
E: [email protected]
E: [email protected]
Tannoy adopts a policy of continuous improvement and product specification is subject to change Di8 DC data file // issue 1.06 // 15.01.08

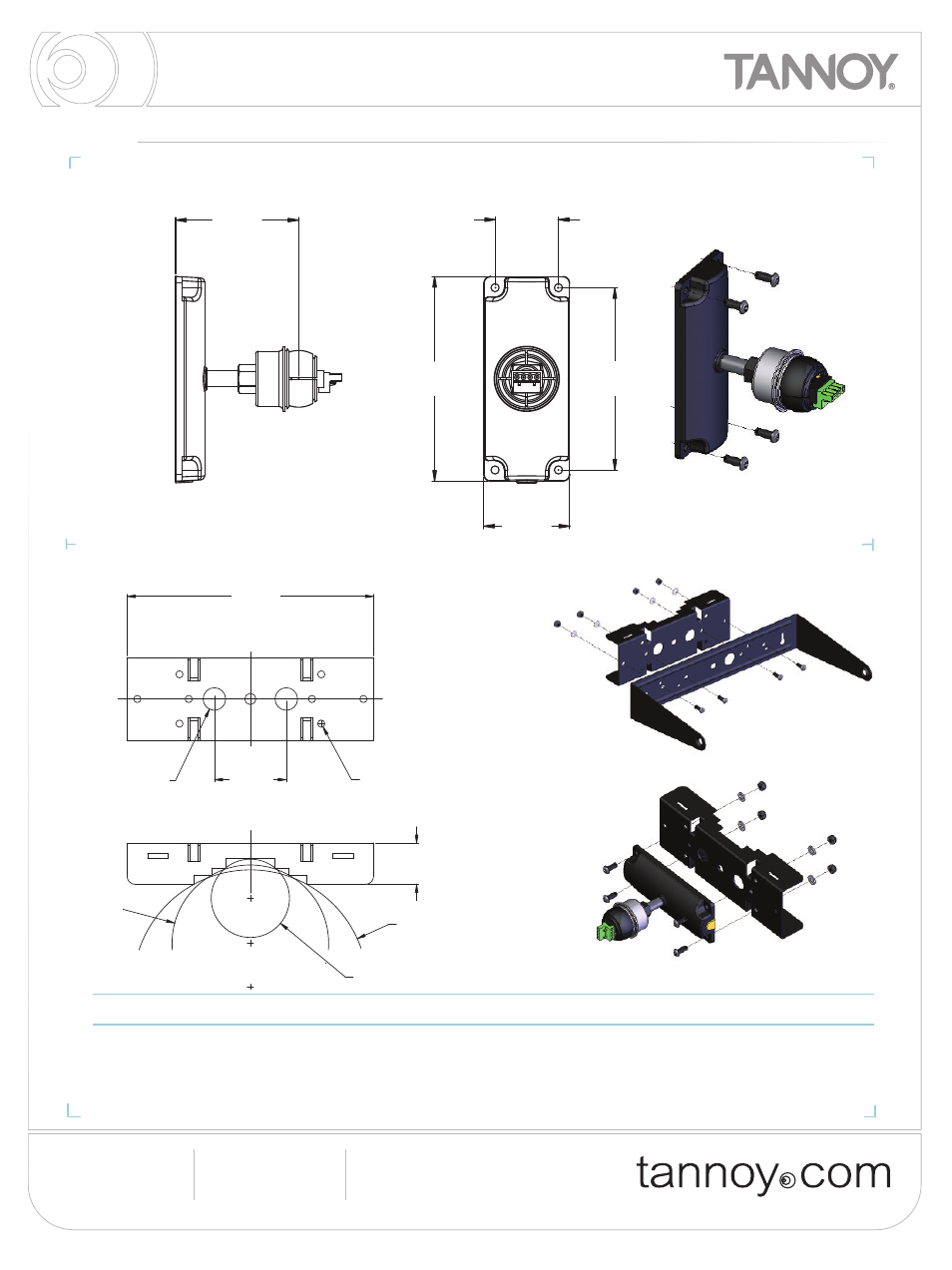

OPTIONAL ACCESSORIES
47.7
[1.88"]
137.9
[5.43"]
93.2
[3.67"]
155.0
[6.10"]
65.0
[2.56"]
155.0mm
(6.10”)
137.9mm
(5.43”)
65.0mm
(2.56”)
K-Ball™ Bracket
93.0mm
(3.67”)
47.7mm
(1.88”)
Pole Mount Adapter
Pole Mount Adapter with K-Ball™ bracket
Pole Mount Adapter with Yoke bracket
240.0
[9.45"]
70.0
[2.76"]
40.0
[1.57"]
Ш22.0
[Ш0.87"]
Ш7.0
[Ш0.28"]
Ш76.2
[Ш3.00"]
Ш152.4
[Ш6.00"]
Ш228.6
[Ш9.00"]
8001 4190 K-Ball™ Bracket Black 1
8001 4191 K-Ball™ Bracket White 1
8001 4600 Pole Mount Adapter Black 1
8001 4601 Pole Mount Adapter White 1
PACKED QUANTITY PART NUMBER COLOUR MODEL NAME
Ordering Information
240.0mm
(9.45”)
40.0mm
(1.57”)
Ø22.0mm
(Ш0.87”)
Ш152.4mm
(Ш6.00”)
Ш76.2mm
(Ш3.00”)
Ш226.6mm
(Ш9.00”)
Ш7.0mm
(Ш0.28”)
Ш70.0mm
(Ш2.76”)
