Quick Start Guide
IMPACT series
IMPACT Quick Start Guide - Page - 2
Mounting and Fixing

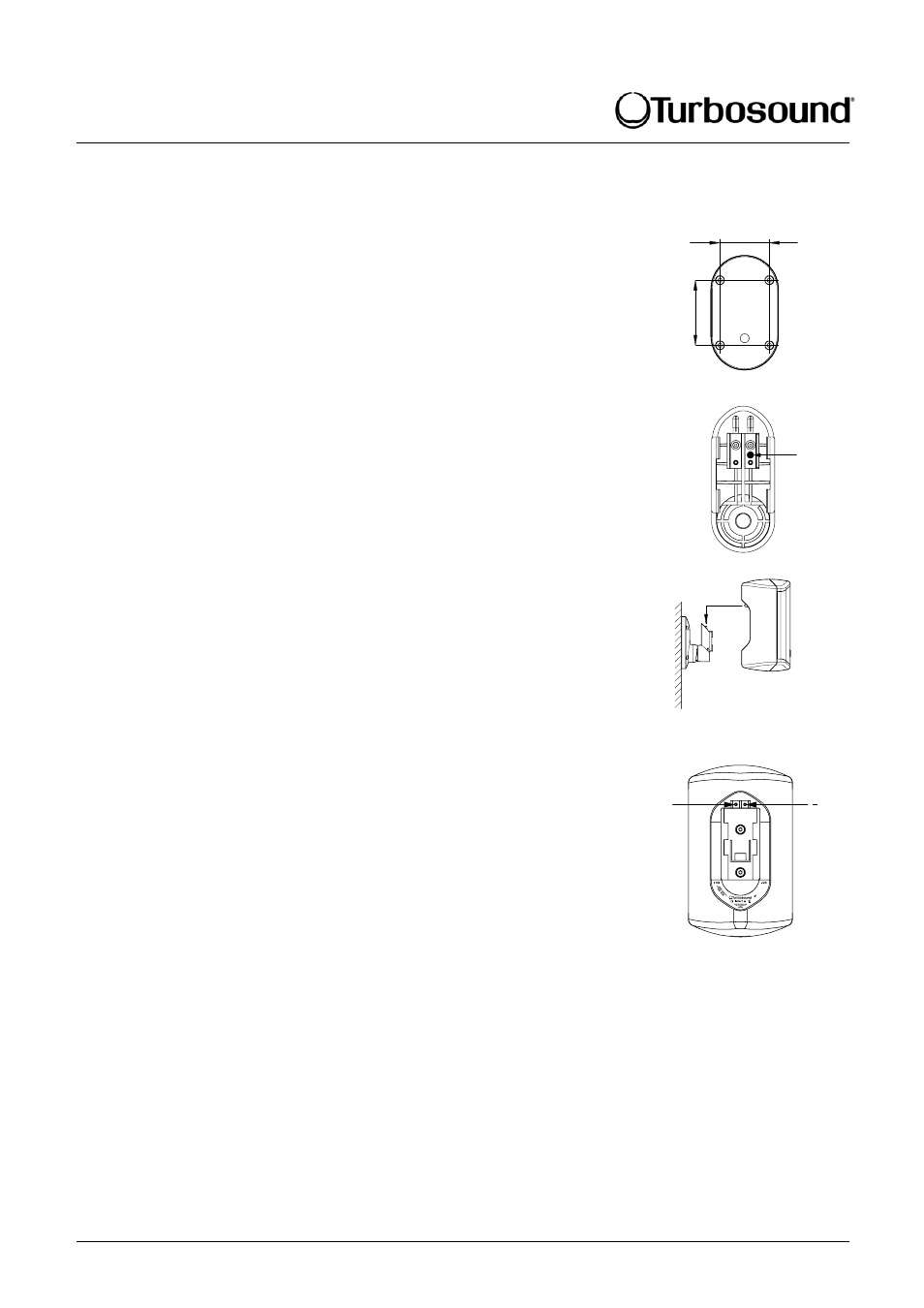

Installing the Loudspeaker with the Supplied Wall Bracket
• The loudspeaker connections are provided as an integral part of the wall bracket.
• Site the bracket on to the mounting surface, making sure there is sufficient free
travel vertically and horizontally to allow full angle adjustment of the loudspeaker,
and feed the speaker cables through the main bracket assembly from the rear.
• Fix the wall bracket securely to the mounting surface using appropriate fixings. The
correct hole spacing and bracket orientation are shown here.
• Terminate the speaker cable by stripping to length and connecting to the bracket
assembly, ensuring correct polarity. Use the smaller Allen key to tighten the grub
screws on to the cable. The right terminal is positive (+ve) and the left terminal is
negative (-ve).
• Offer the loudspeaker up to the bracket and lock into place with a downward motion.
This action automatically closes the electrical connections.
• Angle the loudspeaker as required and lock the bracket using the larger Allen key
provided.
Installing the Loudspeaker with other Wall and Ceiling Brackets
• When installing IMPACT loudspeakers with CB-10, WB-10 or OmniMount brackets
you will need to terminate the cables directly at the loudspeaker as shown.
• Unscrew the M6 countersunk bolts holding the bracket shoe. Leaving the bracket
shoe in place attach the wall or ceiling bracket directly to the loudspeaker’s M6 fixing
points using the screws provided with the bracket. Angle as necessary and tighten
all fixings.
Spares and Accessories
LS-35 3.5” low frequency driver for IMPACT35
LS-50 5” low frequency driver for IMPACT55T
LS-51 5” low frequency driver for IMPACT65T
TW-52 High frequency tweeter for IMPACT35/55T/65T
WB-5 Adjustable plastic wall bracket
WB-10 Adjustable steel wall bracket
CB-10 Adjustable steel ceiling bracket
Turbosound Ltd, Star Road West Sussex RH13 8RY, United Kingdom
tel: +44(0)1403 711447 fax: +44(0)1403 710155 www.turbosound.com
version 1.0
73mm [2.9"]
97mm
[3.8"]
+ve ve
+ve
terminal
