Using The TPA005D12 Class-D EVM Stand-Alone

3-18

Details

3.5

Using The TPA005D12 Class-D EVM Stand-Alone

Using the TPA005D12 class-D stereo audio power amplifier evaluation
module stand-alone is much the same as using it with the platform. The same
4.5-V to 5.5-V power supply range and the isolated out+ and out– lines for BTL
operation (Section 3.2.3) requirements exist. Figure 3–10 shows the
connections that are required for operation (with the exception of the fault
monitor circuit, which is optional). The discussion in this section is in reference
to this figure unless otherwise noted.

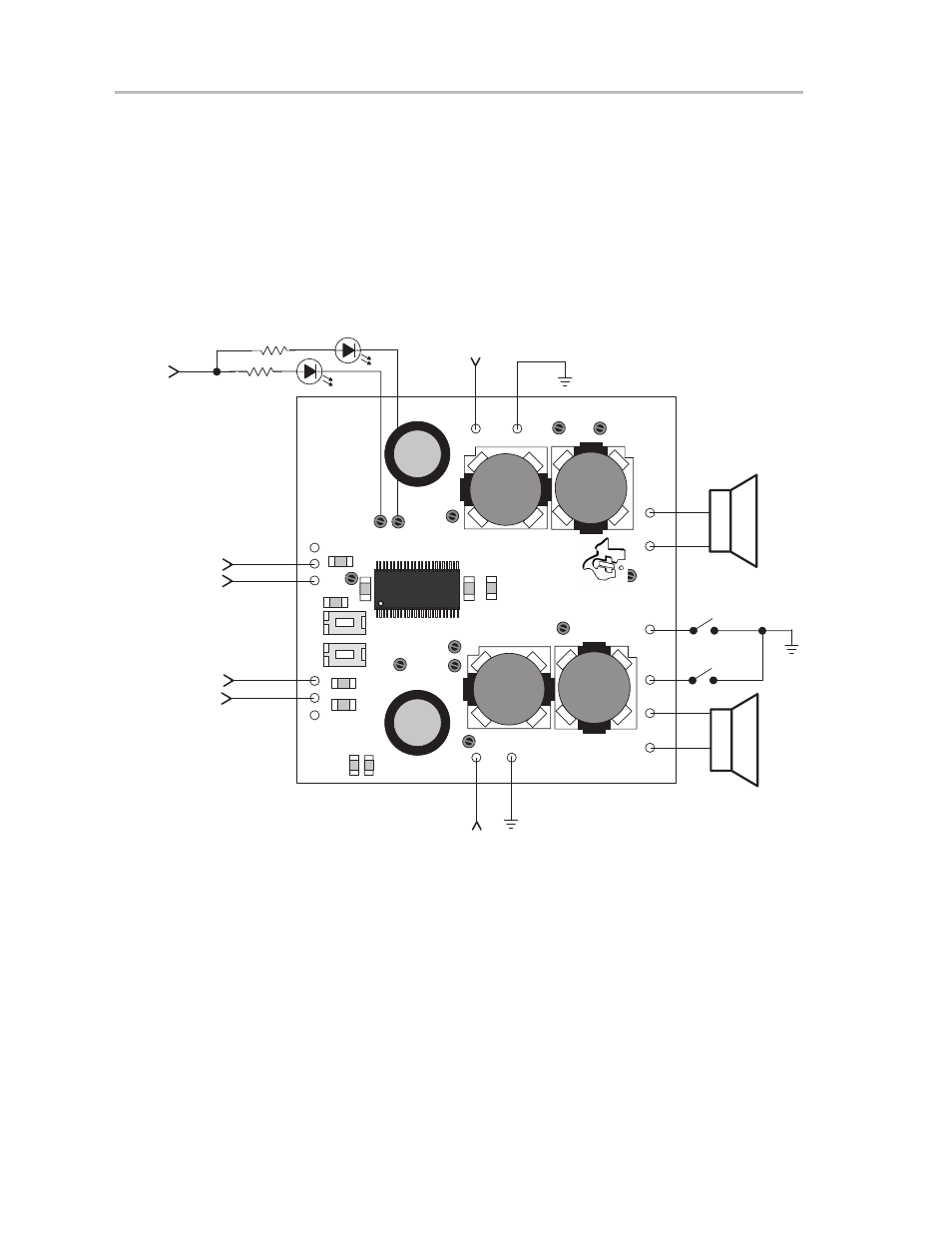

Figure 3–10. TPA005D12 Class-D EVM Stand-Alone Connections for Stereo BTL Output

5 V

5 V

Left

Right

Audio

Inputs

(Right)

Audio

Inputs

(Left)

LED 0

R

Shutdown

Mute

R

5 V

LED 1

Fault

Monitor

T

exas

1999

U1

+RIN–

TP1

C5

Rout+

R2

R1

SD

Mute

Rout–

Lout+

Lout–

GND

VDD

SLOP246

TPA005D12 EVM Board

GND

VDD2

Instruments

GND

–LIN+

GND

S1

Mute

S2

SD

C1

C4

C3

C2

C18

L4

L3

L2

L1

TP1

1

TP10

C14

TP7

TP3

TP2

TP12

TP5

TP6

TP4

C13

+

+

TP9

TP8

C19

3.5.1

Power Connections

Power must be connected to both the VDD and VDD2 module pins. Power
supply ground can be connected to any module ground pin, although best
results are achieved if power supply grounds are connected to the pins
adjacent to the VDD and VDD2 module pins. The ground and power wires
should be twisted to reduce inductance and noise pickup if they are long.
