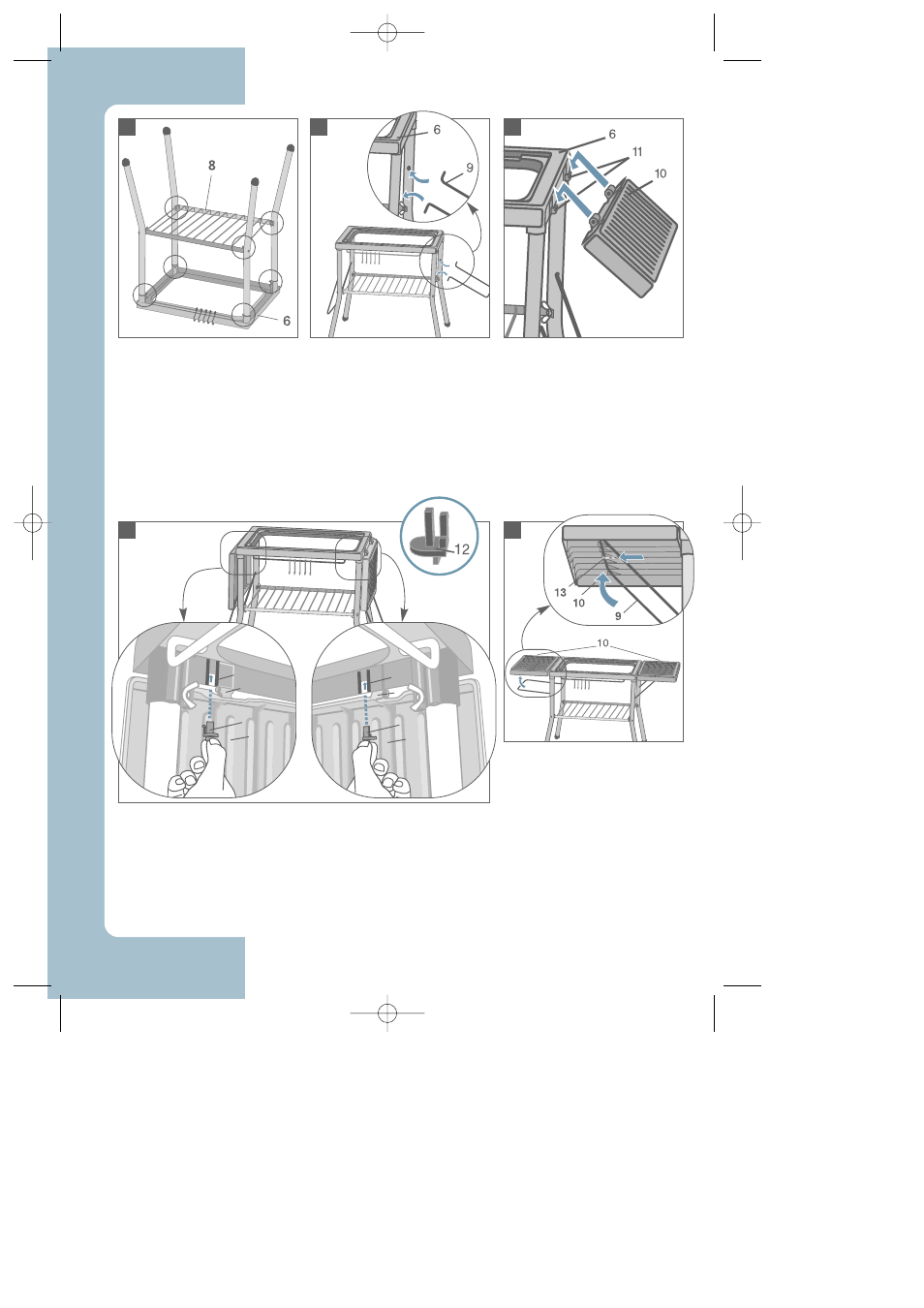

To place the folding
trays (10) in the
horizontal position, lift
the tray and latch the
wire support strut (9)
into the catch provided
for this purpose.
Then lock the support
struts (9) by sliding the
tabs (13).
G
For each folding tray (10), lock the front hinge by
inserting a locking clip (12). Fit it between the two
guide grooves provided for this purpose on the
edge of the support frame (6).
F
Turn over the assembly.
Insert the wire support
struts (9) into the legs,
on either side of the
support frame (6).
D
Insert the folding
trays (10) on either side of
the support frame (6),
in the notches provided
for this purpose (11).
E
Repeat step B on the
opposite corner of the
storage rack (8) so that
it is horizontally stable.
Finally, fix the other two
corners of the storage
rack (8).
Tighten the four butterfly
nuts on the frame (6).
C
12
11
10
6
12
11
10
6
