MAKING THE CONNECTIONS
CONNECTING POWER
CAUTION:
CONNECTING TO YOUR HEADPHONE
You can power the system from a standard AC outlet by using the supplied power cord.
The supplied AC power cord has a polarized plug that fits into the wall outlet only one
way. If the plug does not fit properly, turn it over and try again. Do not force it.
A Headphone Jack is provided for using headphones instead of the built-in speaker.
(Headphones are sold separately.)
CONNECTING TO YOUR TV
VIDEO CONNECTION
The Singing Machine provides a patch cord to give you the option of connecting your unit to an
external audio/sound system and video device. The patch cord has three RCA jacks at each
end. White and Red are for left and right audio connections and the yellow is for connecting the
video.
Make sure that you have a CDG disc in the Singing Machine and playing when you are making
this connection. You will know you have the proper settings on your TV or VCR as soon as you
see the Singing Machine logo or lyrics on the screen!
Please follow the steps below to display CDG lyrics on the TV screen:

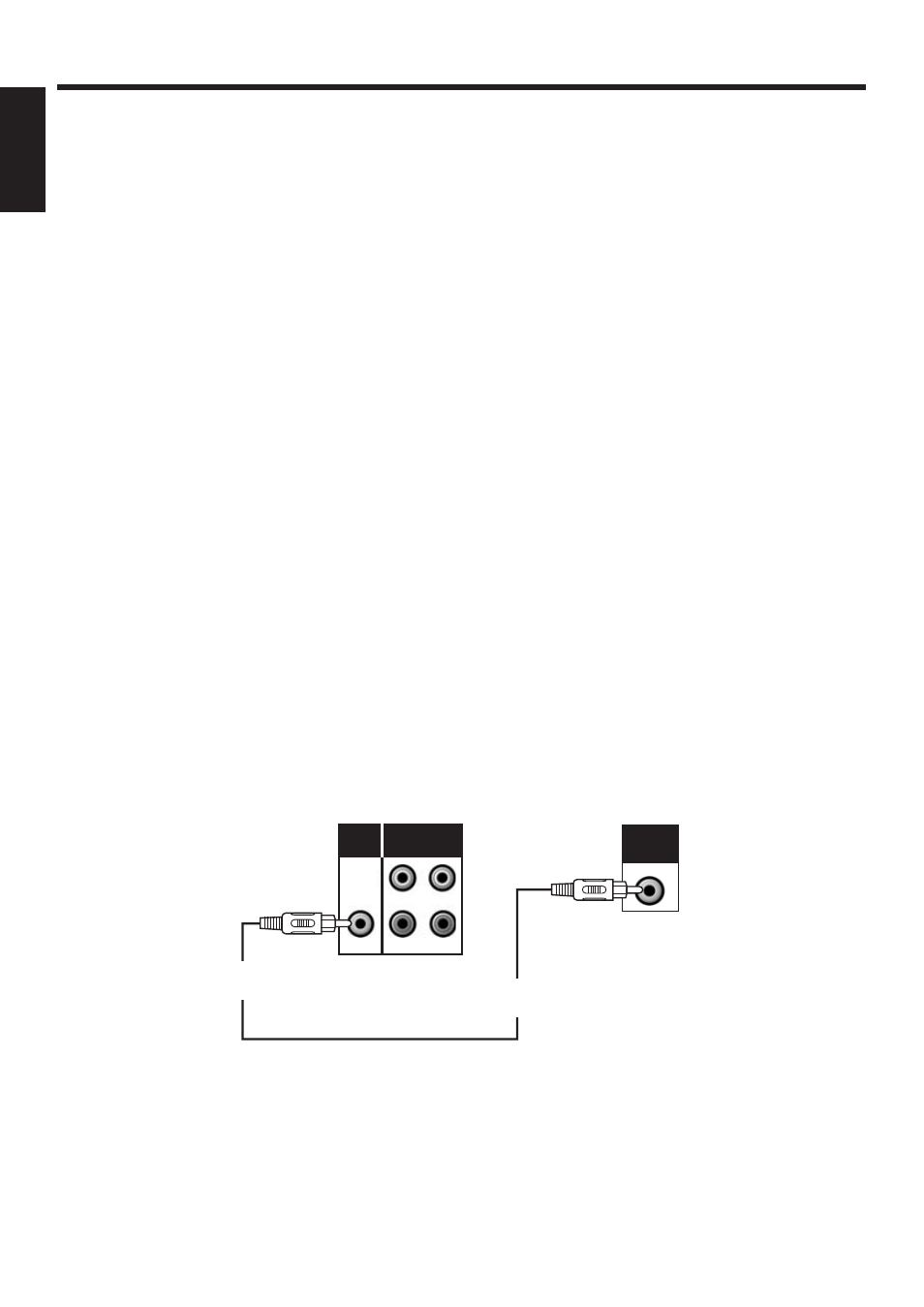

(1) Locate the multi-colored patch cords.
(2) Connect video cable (yellow) to the Video Out of the back of the Singing Machine.
(3) Connect the other end of the video cable (yellow) to the Video Input on your TV or
VCR.
E7
ENGLISHENGLISH
R
L
OUT IN
AUX VIDEO
OUT
VIDEO
INPUT
VIDEO INPUT
(Yellow Jack)
REAR VIEW OF
SINGING MACHINE
REAR VIEW OF TV
VIDEO OUTPUT
(Yellow Jack)
