TD-8817 ADSL2/2+ Ethernet/USB Router User Guide
11

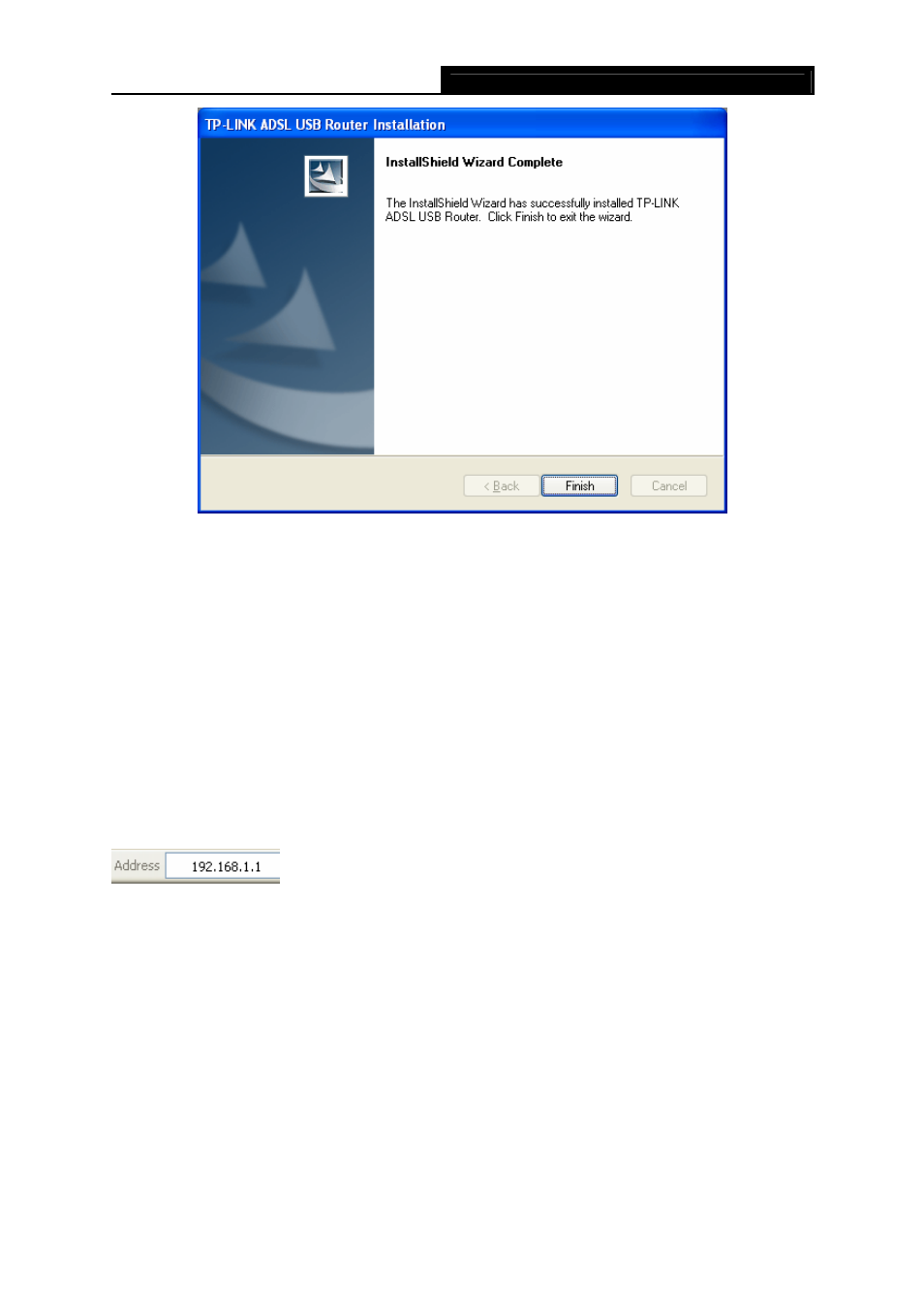

Figure 3-9
)
Note:
1) All of the above settings are under windows XP.
2) If you want to pull out the USB device you must disconnect the network of USB first.
3) In the Vista operating system, maybe the “Unknown Device” screen will pop up when you
insert the USB cable of the Router to a computer, please just unplug the USB cable and try
again.
3.3 Login
Once your host PC is properly configured, please proceed as follows to use the Web-based Utility:
Start your web browser and type the private IP address of the Router in the URL field: 192.168.1.1.
After that, you will see the screen shown below, enter the default User Name admin and the
default Password admin, and then click OK to access to the Quick Setup screen. You can follow
the steps below to complete the Quick Setup.
