Tunturi S30 - Manual (Page 35)

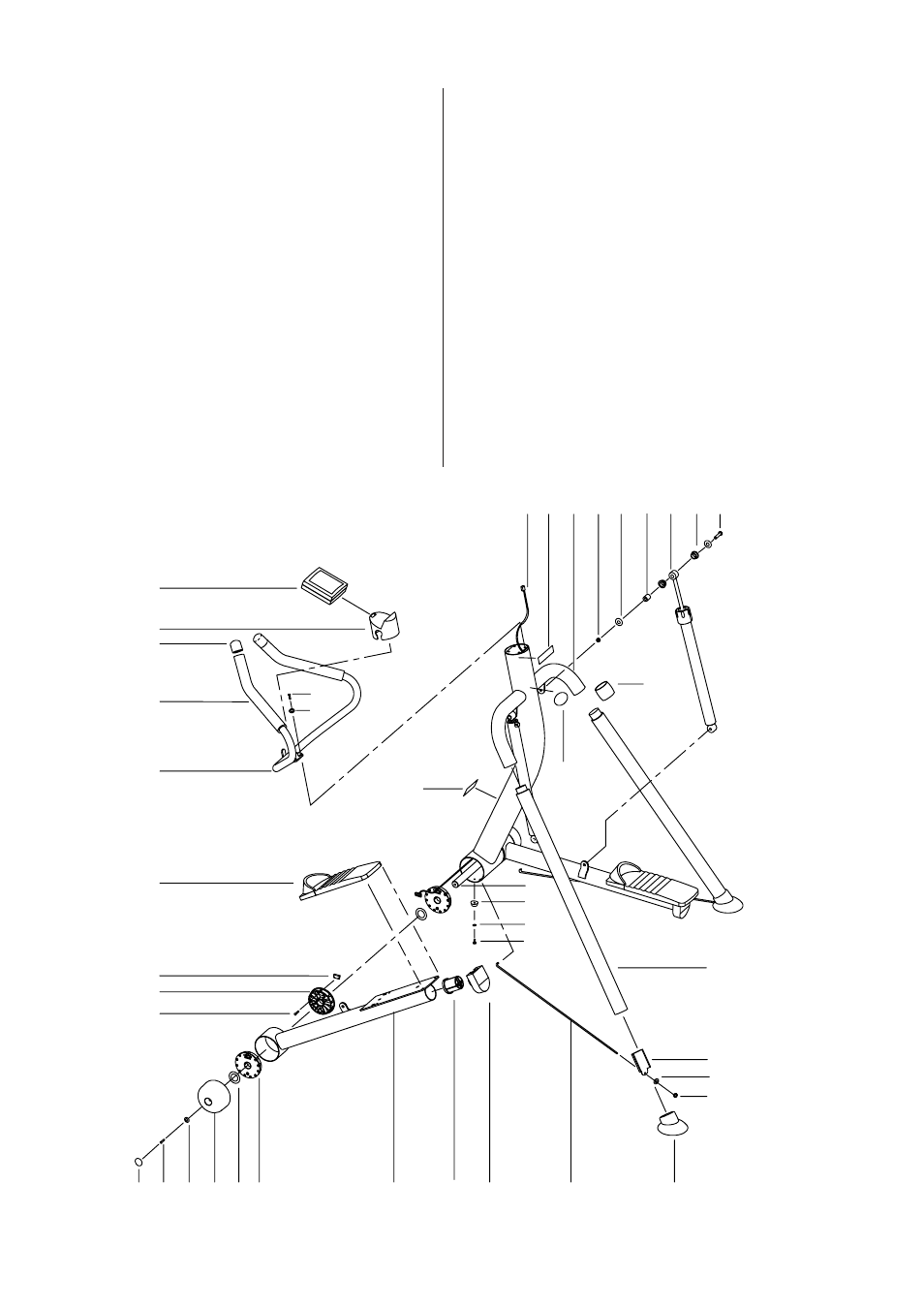

1 2 3 4 5 6 13 8 9
52
51
50
49
48
57
45
39
63
42 43 44 41 40 39 38 64 36 35 31
61
34
33
32
58
59
33
60
2
62
103
53
54
1 403 7006 Cable + sensor 1
3 103 7011 Frame 1
*4 M8 DIN 985 Nut nylock 4
*5 M8 DIN 9021 Washer 8
*6 523 7006 Sleeve, shock axle 4
8 533 7029 Sleeve, shock 8
*9 M8x40 ISO 7380 Bolt 4
13 163 7010 Shock, (incl. 8) 2
31 533 7018 Foot, left 1
- 533 7023 Foot, right 1
*32 M5 DIN 934 Nut 2
*33 M5 DIN 125 Washer 4
*34 503 7002 Tie rod bracket 2
35 103 7009 Tie rod 2
36 533 7017 Pedal bumper 2
38 103 7015 Pedal, left 1
- 103 7014 Pedal, right 1
39 523 7004 Bearing 6
40 25x38x1 DIN 988 Spacer 6
41 533 7014 Wheel 2
42 533 7031 End plug 2
43 M8x30 DIN 933 Screw 2
44 M8 DIN 9021 Washer 2
45 403 7005 Magnet 1
48 203 7010 Handlebar (incl. 49) 1
49 213 1001 Handle grip, pair (incl. 50) 1
50 533 7039 Plug 2
51 503 7003 Meter mount 1
52 233 7008 Meter (incl. 1, 45) 1
*53 M6x16 DIN 912 Screw 4
*54 M6 DIN 125 Washer 4
57 363 7001 Footpad 2
58 343 7001 Axle 1
59 533 7025 Stand shoe 2
60 M5x10DIN7985C Screw 2
61 103 7010 Lower leg 2
63 3,5x13 DIN 7981 Screw 2
64 533 7040 Sleeve 2
103 173 7010 Cover, Tinfo 3/99 2
- 423 7062 Label set (incl. 2, 62) 1
* 553 7002 Assembly tools 1
* 553 7003 Hardware kit (incl. * ) 1
- 583 7012 Owner’s manual 1
- 583 0006 Warranty booklet 1
