Troy-Bilt 675B--Pony - Manual (Page 33)

Parts List 33
Model 675B
1 1100068 Hex Hd. Screw, 3/8-16 x 3/4* ............. 12
2 1985101 Tine – right-hand ................................ 3
3 1110108 Hex Lock Nut, 3/8-16 .......................... 14
5 710-3096 Hex Hd. Screw, 3/8-16 x 2, Grade 8.... 2
7 1985100 Tine – left-hand ................................... 3
8 1916693 Tine Holder, left-side........................... 1
8A 1916694 Tine Holder, right-side ........................ 1
9 634-04033 Wheel & Tire Assy., left-side ............... 1
10 634-04032 Wheel & Tire Assy., right-side ............ 1
11 GW-9380 Clevis Pin, .312 x 1-3/4 long ............... 2
12 GW-9338 Hitch Pin ............................................. 2
IMPORTANT: LEFT and RIGHT sides of tiller are determined by standing in the operator
position (BEHIND THE HOOD) and facing the direction of forward travel.
RIGHT-HAND TINE LEFT-HAND TINE
(TOP)
(BOTTOM)

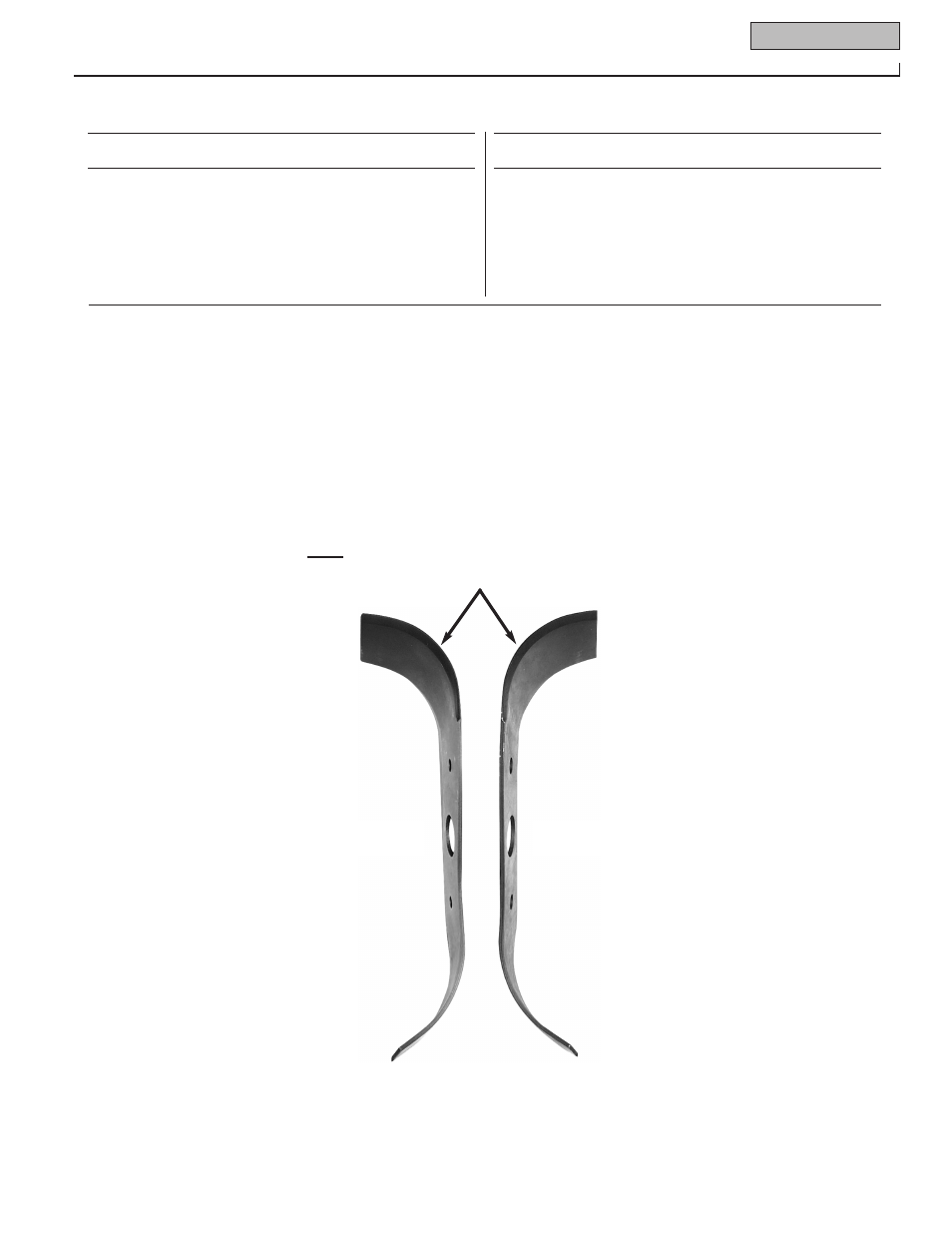

MOUNT TINES SO THE CUTTING EDGE AT THE
TOP OF EACH TINE FACES THE OPERATOR
REF. PART
No. No. DESCRIPTION QTY.
REF. PART
No. No. DESCRIPTION QTY.
TINES & WHEELS
