quick start
TSB-110
TSB-110 quick start guide
Page 3

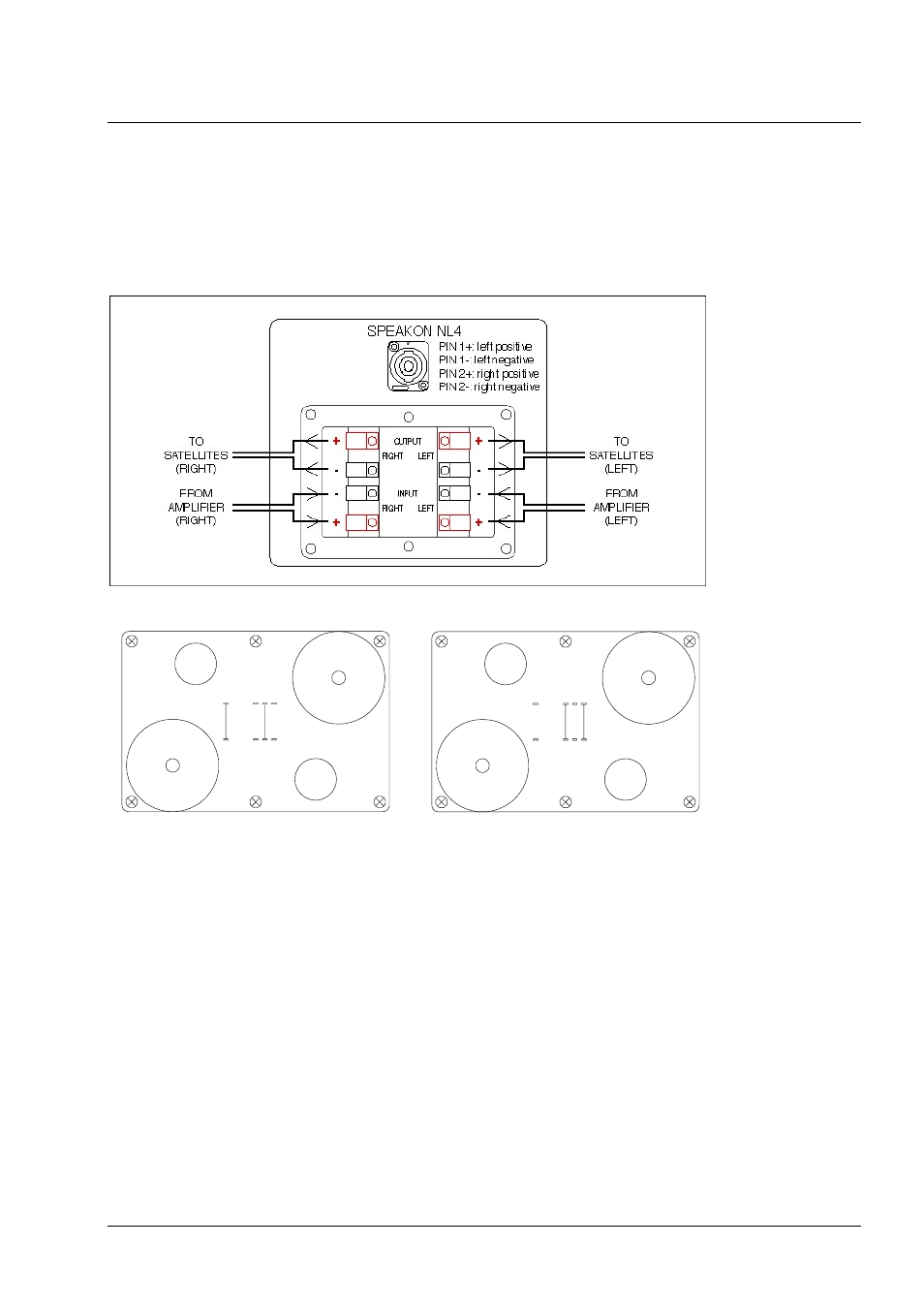

Locate the four jumper locations on the circuit board, labelled J1, J2, J3, and J4. The unit is
shipped with J2 and J4 connected with J1 and J3 not connected (dual 4 ohm mode). For single 8
ohm operation unplug J2 and J4 and transfer the jumpers to J1 and J3. This connects the two
voice coils in series and transfers the input to the left input only (pins 1+ and 1- on the Speakon
NL4MP). Note: In single coil mode DO NOT use the right inputs and outputs as this will result in
incorrect operation and may damage loudspeakers and amplifiers.
Technical Specifications
Dimensions 330mm x 585mm x 330mm (13” x 23” x 13”)
Net weight 16.5 kg (36.3 lbs)
Frequency Response 45Hz to 180Hz
Power Handling 300 watts r.m.s., 600 watts program
Nominal Impedance 2 x 4 ohms
Sensitivity 95dB, 1 watt @ 1metre
Calc. Max SPL 120dB continuous, 126dB peak
Crossover Built-in high pass crossover network at 150Hz
Construction 15mm (5/8”) birch plywood
Rigging 4 x M10 internal rigging points
Options TurboBlue or white semi-matt textured paint
Spares & Accessories LS-1019.2 10” LF driver (requires M5 x 35 fixing bolts)
RC-1019.2 recone kit
J1
J2
J3
J4
TSB-110 Configured for 8 ohms TSB-110 Configured for 2 x 4 ohms
J4
J3
J2
J1
