Please read these instructions carefully and follow
the installation steps in sequence.
Clip nuts provide mounting points on 19" rack mount
equipment rails.
Tools Required
Phillips head screwdriver

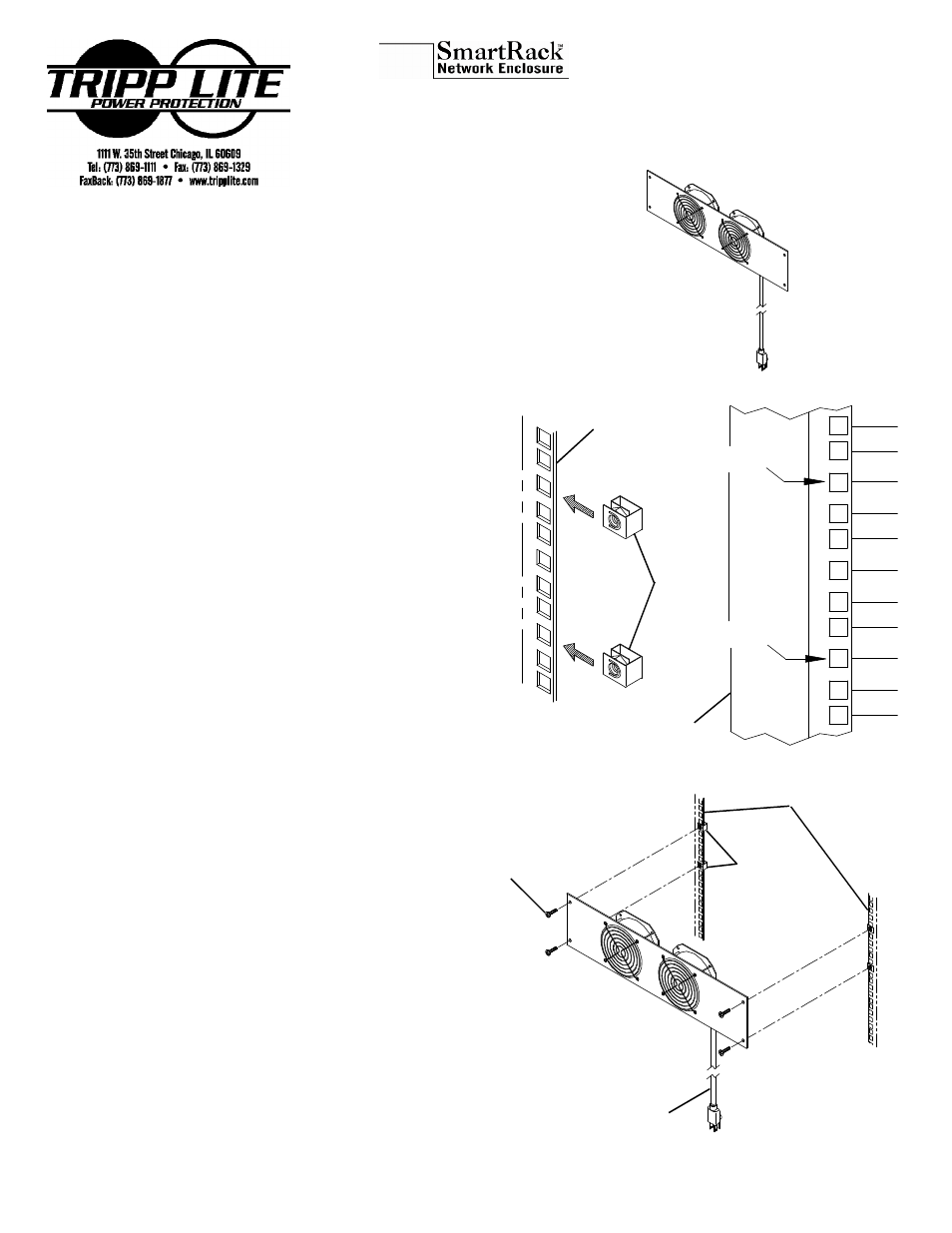

Figure 1
1
CLIP NUT INSTALLATION
Clip nuts have a front or screw side. Consider which
way it should face for ease of access to the screwhead
during component installation. (see figure 1)
To remove a clip nut from a rail, insert a flat blade
screwdriver or knife under the tab on the front and
pry up, freeing the retainer ring from the rail.
1. Select the location at which the fan panel will be
installed in the enclosure.
2. Install one clip nut into the top hole at the selected
position and then install another one six holes down.
(see figure 2)
3. Measure from the bottom of the vertical rail to the top
clip nut. Assemble the clip nuts onto the opposite rail
at the measured height.
4. Assemble the Fan Panel to the rails with the 10-32 x 1/2
phillips head screws. (see figure 3)
5” Fan Panel
.625”
.5”
.625”
.5”
.625”
.625”
.625”
.625”
.5”
.5”
Figure 2
Clip nuts
Rail
Use this hole
Use this hole
Rail
Figure 3
Rails
Cord
10-32 x 1/2 phillips
Clip nuts
Manual Part #93-1865
07/09/02 rev. A
SR14
Dual Fan Kit
