WE WANT YOU LISTENING FOR A LIFETIME
Used wisely, your new sound equipment will provide a lifetime of enjoyment. Since hearing damage from loud noise is often
undetectable until it is too late, THIEL and the Electronics Industries Association’s Consumer Electronics Group recommend
you avoid prolonged exposure to excessive noise. Depending on room size and amplifier power, some home audio systems
can reach sound pressure levels in excess of 95 decibels with peaks of over a 105 decibels. For your protection, the list below
identifies sound levels for various noises.
Decibel
Level
Example
30
Quiet library, soft whispers
40
Living room, refrigerator, bedroom away from traffic
50
Light traffic, normal conversation, quiet office
60
Air conditioner at 20 feet, sewing machine
70
Vacuum cleaner, hair dryer, noisy restaurant
80
Average city traffic, garbage disposals, alarm clock at
two feet
The Following Noises Can Be Dangerous Under
Constant Exposure
90
Subway, motorcycle, truck traffic, lawn mower
100
Garbage truck, chain saw, pneumatic drill
120
Rock concert in front of speakers, thunderclap
140
Gunshot blast, jet plane
150
Rocket launching pad
Information courtesy of the Deafness
Research Foundation and the EIA.
We
Want You
LISTENING
For A Lifetime
CS2.3 SPECIFICATIONS
Bandwidth (–3dB)
35 Hz-23 kHz
Amplitude Response
36 Hz-20 kHz
±
2 dB
Phase Response
Minimum
±
10
°
Sensitivity
87 [email protected] V-1m
Impedance
4 ohms (3 ohms minimum)
Recommended Power
100-400 watts
Size
11" W x 15" D x 41.5" H
Weight
70 pounds

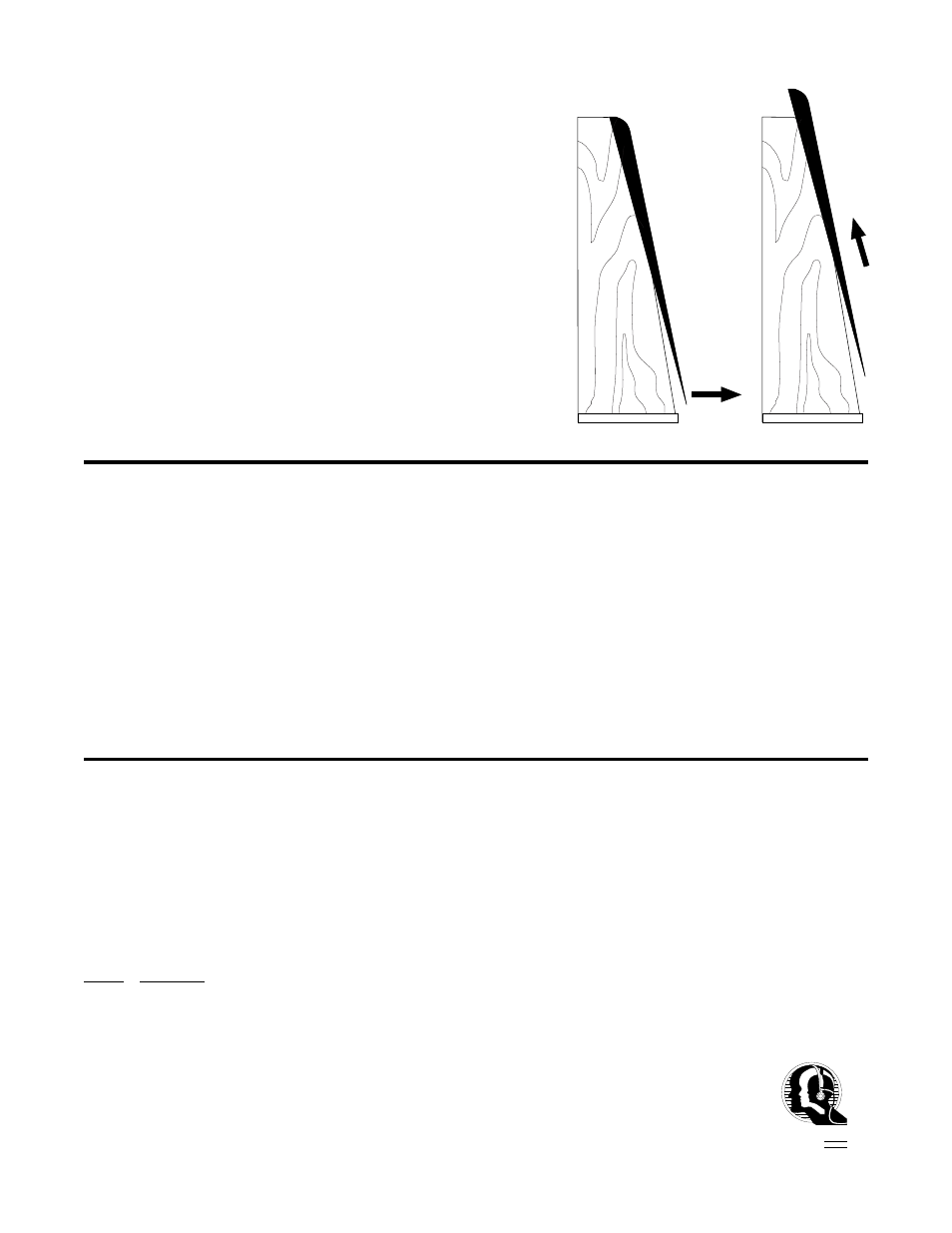

GRILLE
The CS2.3 grille is designed to not produce diffraction so there is no sonic
reason to remove it. If you do need to remove the grille, pull the bottom of
the grille frame away from the speaker an inch or so and then lift the grille
upward to remove it. When replacing the grille, first push the top down
onto the baffle and then push the bottom back.
The grilles can be cleaned of dust by using an upholstery attachment of a
vacuum cleaner. To prevent damage to the tweeter, take care not to push
the cloth in toward the top of the grille.
SERVICE
If your system requires service, contact your authorized THIEL dealer. If
you need to contact THIEL, service information and technical support is
available at (606) 254-9427, Monday-Friday, 8:30 a.m. - 5:00 p.m. Eastern
Time, or via e-mail at [email protected].
