Toshiba XXXXXXX(X/X)

– 21 –

4-way Air Discharge Cassette Type

Owner’s Manual

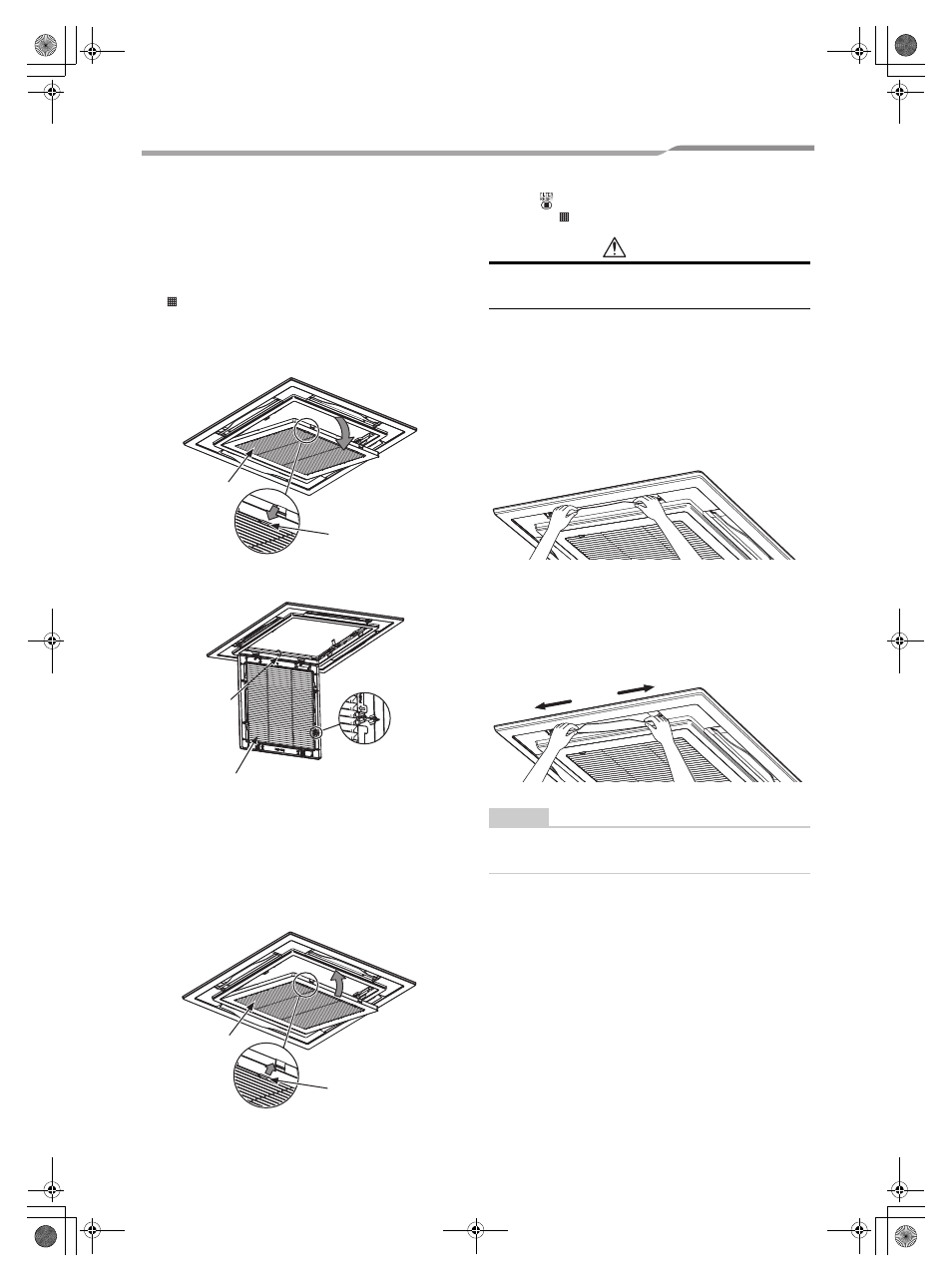

Cleaning the air filter

The fan is running for self cleaning maintenance after
running the cooling or dry mode. Terminate the self
cleaning mode forcibly when maintaining the air
conditioner.

• If

is displayed on the remote control, clean the air

filter.

1. Open the return air grille by sliding the latches. Let

the grille drop while holding it.

2. Remove the air filter from grille.

3. Vacuum the filter and rinse it with water.
4. Dry the filter.
5. Wipe the inside of the return air grille with water or

mild detergent and then dry it.

6. Reinstall the filter.
7. Close the grille and secure it to the frame by the

latches.

8. Push

button

to

reset filter timer.

• “FILTER ”

disappears.

CAUTION

• Do not start the air conditioner while leaving the panel

and air filter removed.

Cleaning Unit Grille and Frame

To clean the grille and the frame, wipe the outside with
a soft, dry cloth. If necessary, a mild liquid detergent
can be applied and wiped off with a dry cloth.

Cleaning The Louvers

1. Remove the discharge louver by holding it at both

ends and pulling downwards towards the center.

2. Clean the louvers with water or mild detergent.
3. Mount the discharge louver by inserting one end and

bending it outwards to allow the other end to be
inserted.

NOTE

When installing the louvers, make sure the side with
marking faces upwards.

Preparing for long Shut Down Period

1. Clean the filters and repostion them in unit.
2. Operate the unit in fan mode for 3 or 4 hours to dry

all internal parts.

3. Turn the unit off and disconnect the main power

supply.

4. Before unit is turned on again, make sure the circuit

breaker has been turned on for at least 12 hours.

Return air grille

Knob

Strap to

prevent falling

Air filter

Return air grille

Knob

2)Insert in the louver sagging

down the center downward.

1) Insert
