2101 Field Wizard
Section 2 Preparation and Installation
2-9

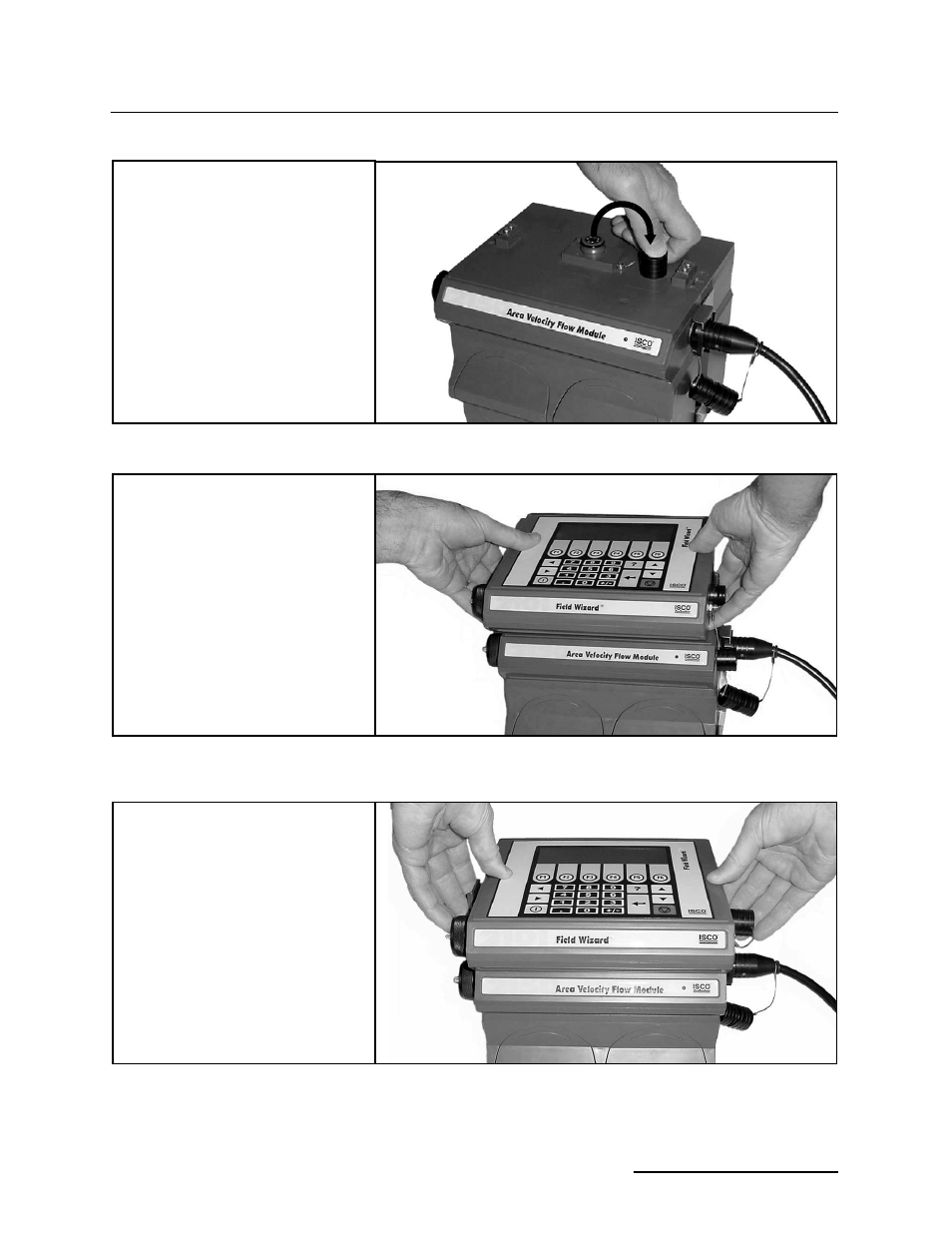

Figure 2-10:
2100 Series Module -
uncap the connector
Uncap the connector on the top
2100 Series module. Store the
cap on the holder.
Figure 2-11:
Align the modules
Align the modules and gently
press the Field Wizard Module
onto the 2100 Series Module.
Figure 2-12:
Push down and lock
the latch
While gently pressing down on
the stack, lock the Field Wizard
Module’s latch.
