Optional Configuration
www.ti.com
(baseband = 30MHz, NCO = 30MHz with NCO Gain disabled, QMC Gain = 1446)

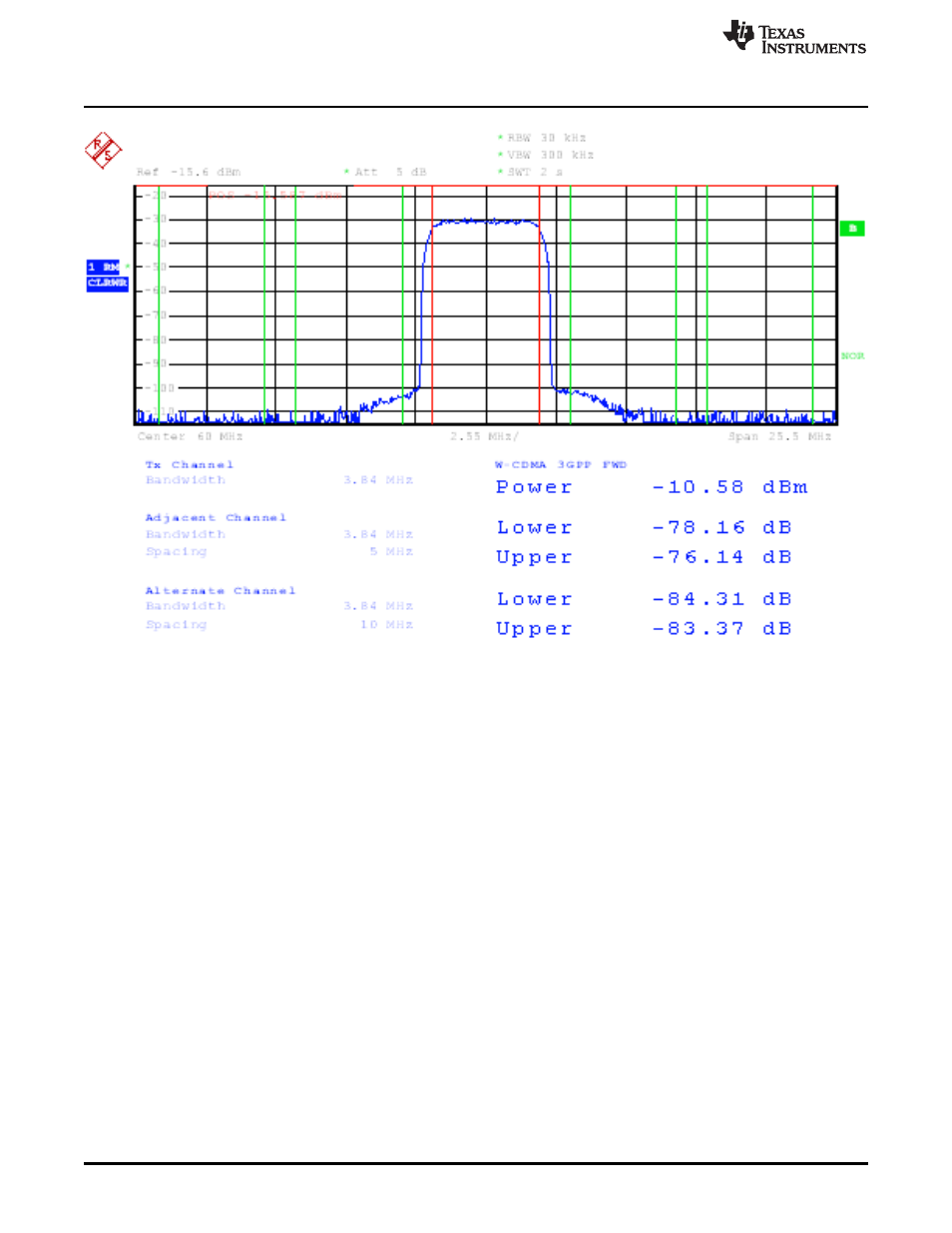

Figure 12. DAC3484 Transformer Coupled Output at 60MHz IF
