The Power in Dust Control
The Air Boss ® Cyclone Separators are among the
most efficient and cost-effective dust collectors
available. Air Boss Cyclones are offered in capacities
from 800 CFM to 13,000 CFM and efficiently remove
moderate to large-sized particles from the airstream.
Fans are self-cleaning, material handling, radial blades
designed to deliver peak airflow, and the low
horsepower conserves energy.
The centrifugal action of the Cyclone, created by
rapid rotation of the high velocity air stream, forcibly
precipitates the dust out through the bottom of the
Cyclone and into a collection drum or hopper for the
specific application. Standard dust storage
capacities vary from 7.5 cu. ft. to 110 cu. ft., with
special hopper configurations available. All models
can be housed indoors or outdoors.
Options
• Afterfilter assemblies
• Access doors
• Sprinkler heads
• Increased hopper clearance
• Explosion venting
• Non-sparking aluminum fan wheels
• Rotary air locks
• Silencers
Common Applications
• Woodworking
• Buffing and polishing
• Powders (material handling)
• Rubber grinding
• Abrasive cutting
• Metal grinding
• Pre-cleaning (cartridge/baghouses)

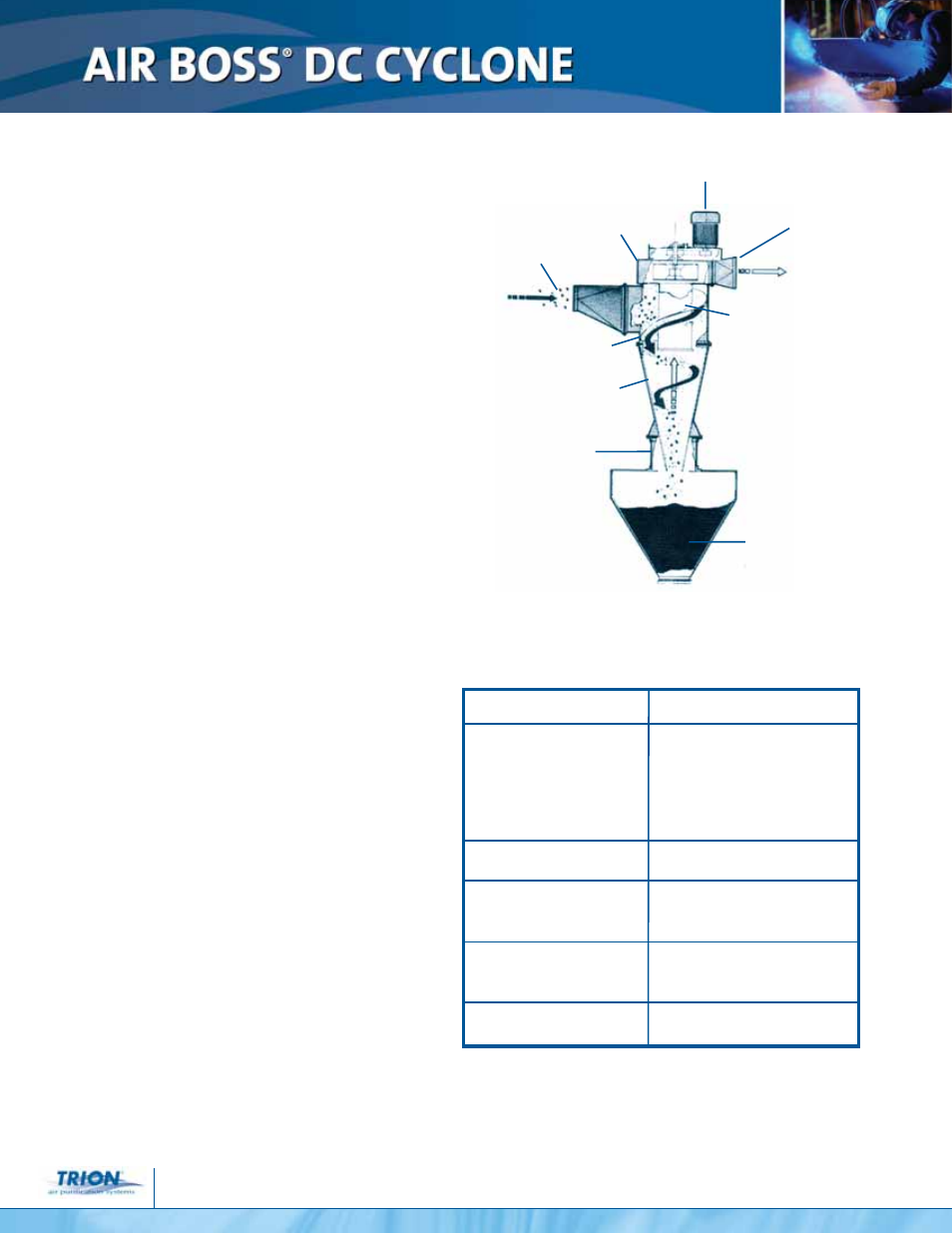

Inlet
Blower
Motor
Blower Outlet
Cyclone Outlet
Cyclone Cylinder
Cone
Dust Chute
Optional
Throw-out Bin
Features Benefits
Heavy–duty construction
Tapered Cone design
No internal moving parts
Various sizes and
configurations
Radial blade material
handling fan
Small footprint
Long collector life
• High constant efficiency for
large particulates
• Provides a cleaner
work environment
Reduced maintenance
Wide range of capacities to
meet application requirements
Delivers peak airflow with the
lowest horsepower
Saves valuable floor space
