TL-WA501G 54M Wireless Access Point User Guide
read-only.
1. Network
This field displays the current settings or information for the Network, including the
MAC address, IP address and Subnet Mask.
2. Wireless
This field displays basic information or status for wireless function, including
Operating Mode, SSID, Channel, Mode, MAC Address and IP Address.
3. Traffic Statistics
This field displays the AP's traffic statistics.
4. System Up Time
The time of the AP running from it's powered on or reset .

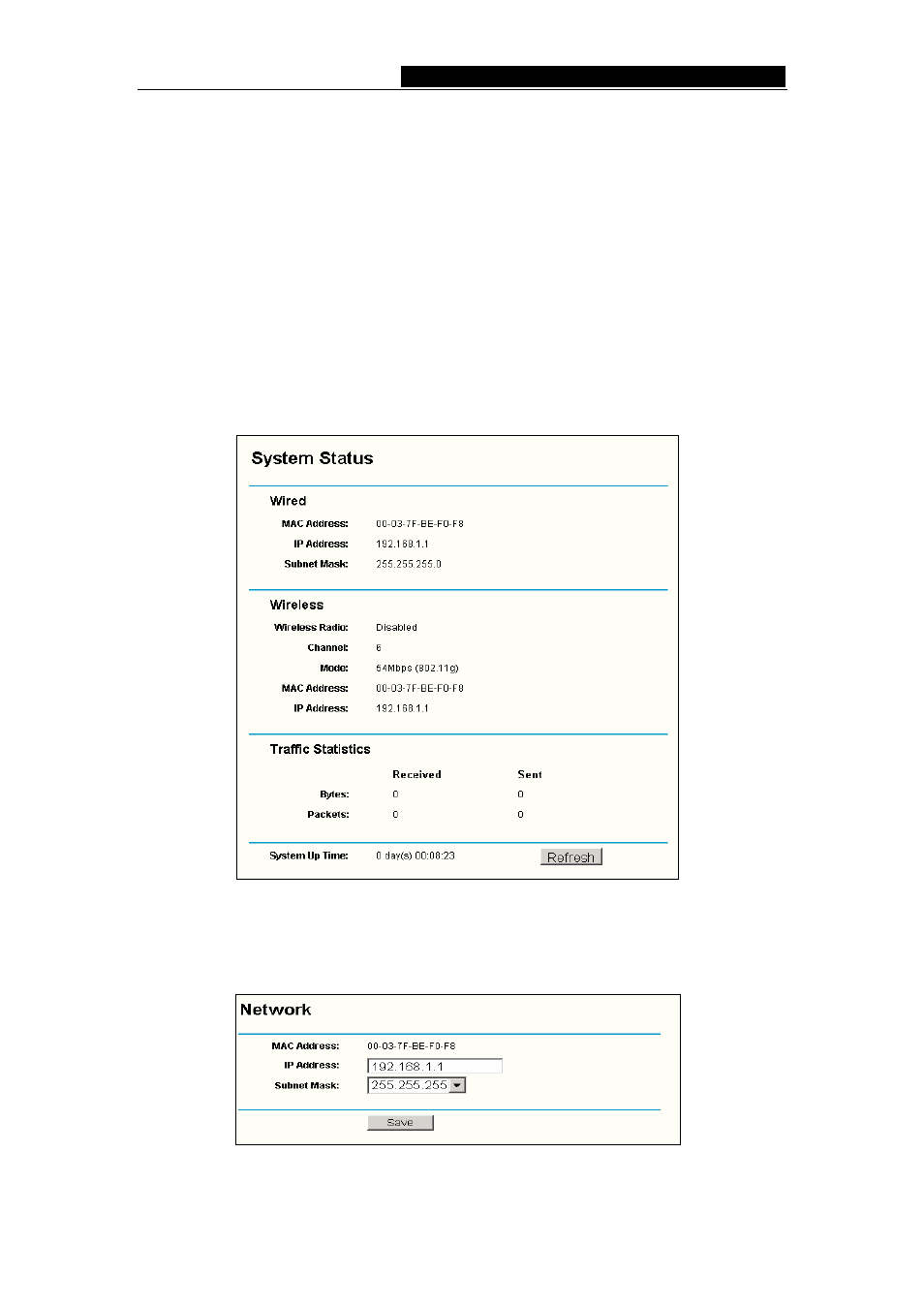

Figure 5-3: AP Status
5.3 Network
You can configure the IP parameters of Network on this page.
Figure 5-4: Network
- 11 -
