3
MODEL 12180 BRONCO TM TILLER
HANDLEBARS, CLUTCH CABLES AND HANDLEBAR MOUNTING HARDWARE
REF PART
No. No. DESCRIPTION QTY.
REF PART
No. No. DESCRIPTION QTY.
1 1916996 Handlebar, Upper – Incl. Ref. Nos.
2 and 28..................................... 1
2 1916928 Decal–Forward Clutch Bail ............ 1
3 1100799 Hex Hd. Screw,
5/16-18 x 1-1/2 .......................... 6
4 1100806 Hex Screw, 1/4-20 x 1-1/4............. 1
5 55044 Bracket, Forward Clutch Cable....... 1
6 1916106001 Bail, Forward Clutch ...................... 1
7 9855 Screw, #10-24 x 2 ......................... 1
8 1916712 Spring, Forward Clutch.................. 1
9 1100242 Lockwasher, 5/16 .......................... 6
10 1186230 Hex Nut, 5/16-18 ........................... 6
11 9811 Hex Locknut, 1/4-20 ...................... 1
12 55048 Cable Assembly, Forward Clutch ... 1
13 1100068 Hex Screw, 3/8-16 x 3/4 ................ 2
14 9837 Hex Locknut, 3/8-16 ...................... 2
15 1107383 Flat Washer, 3/8............................. 2
16 1100044 Hex Screw, 5/16-18 x 3/4 .............. 2
17 1902173001 Support, Handlebar ....................... 2
18 1110107 Hex Locknut, 5/16-18 .................... 2
19 1902174001 Handlebar, Lower........................... 1
20 9386 Klip Ring........................................ 1
21 9856 Clevis Pin....................................... 1
22 9552 Hex Screw, 1/4-20 x 1/2,
Self-Tapping .............................. 6
23 1901273010 Panel ............................................. 1
24 1916818 Decal–Model Name/Logo ............. 1
25 1916674001 Bracket, Reverse Clutch Cable ....... 1
26 1916719 Cable Assembly, Reverse Clutch.... 1
27 1186227 Hex Nut, #10-24 ............................ 1
28 1916929 Decal–Reverse Drive Control ......... 1
29 1735531 Cable Tie........................................ 1
1 1100005 Hex Screw, 5/16-24 x 1, Grade 5 .... 1
2 9944 Washer, Belleville ............................ 1
3 1916532 Pulley, Transmission ....................... 1
4 9301 Key–Transmission Pulley, 3/16 x 1.. 1
5 50027 Support Washer, Front .................... 1
6 9517 Snap Ring ....................................... 1
7 1714 Bearing, Tapered Roller (with race) . 2
8 50043 Support Washer, Rear ..................... 1
9 1904281 Drive Shaft Assembly...................... 1
10 1224-1 Shim, Rear Bearing Cap,
.010 thick ................................... A/R
1224-2 Shim, Same as above except
.030 thick .................................... A/R
1224-3 Shim, Same as above except
.005 thick .................................... A/R
1224-4 Shim, Same as above except
.062 thick .................................... A/R
1325C Shim Set–Includes the following
shims: two #1224-1, two 1224-2,
one 1224-3, and one #1224-4 .... A/R
A/R – As Required
REF PART
No. No. DESCRIPTION QTY.

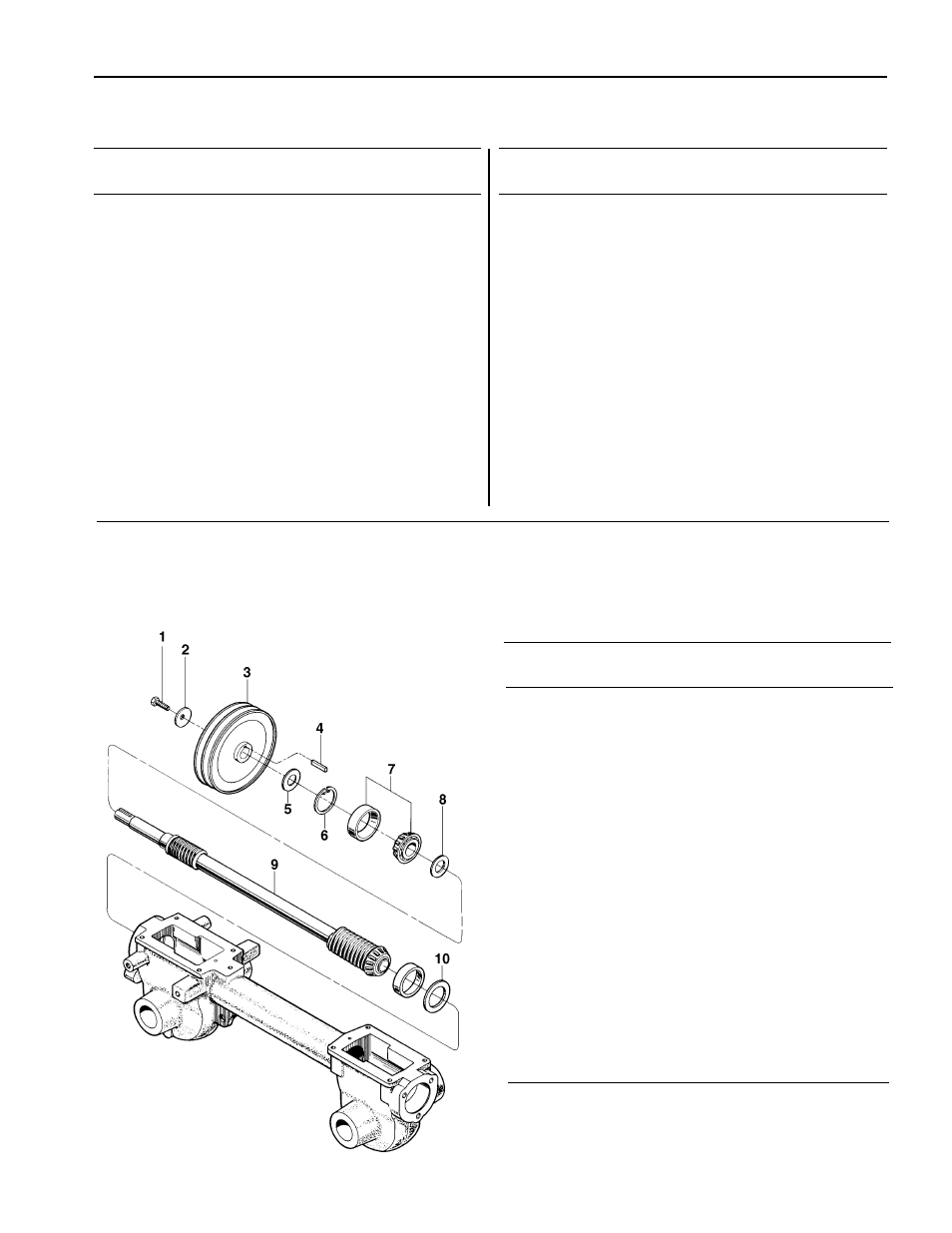

DRIVE SHAFT ASSEMBLY
