www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 6

HTD-2522PF

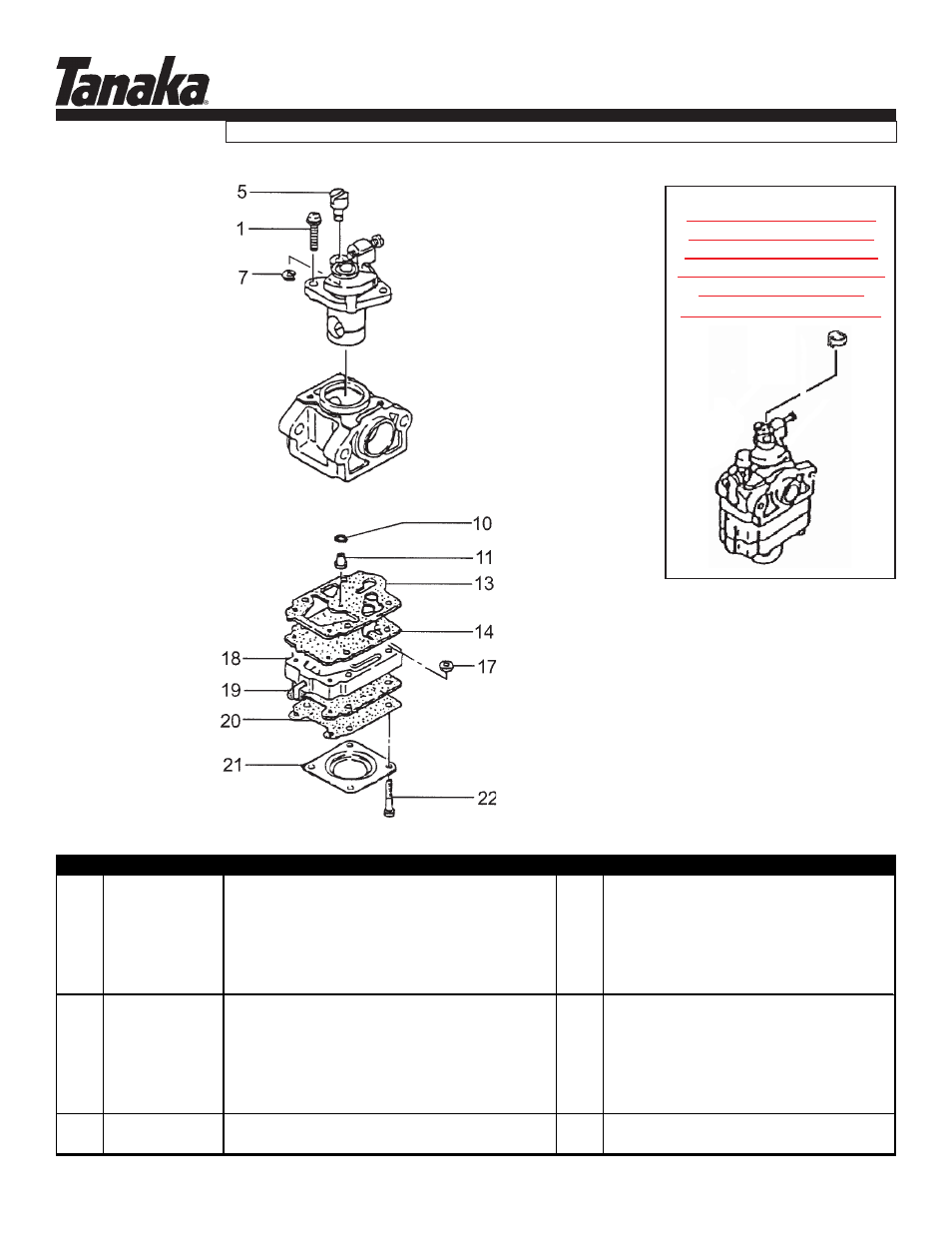

CARBURETOR • FIGURE 5

ITEM PART NUMBER

DESCRIPTION

QTY

COMMENTS

5-0

4550300290

SET,CARBURETOR

1

Carburetor set includes gasket

5-1

54825140200

SCREW,THROTTLE SET

2

5-5

53925120200

SWIVEL

1

Carburetor Repair Kit - 650-25140-900

5-7

48925100200

RING,STOP

1

Gasket / Diaphragm Kit - 652-25140-900

5-10 55025100200

O-RING

1

5-11 5992001W34

JET,MAIN,#34

1

~ Contained in Carb Kits

5-13 ~ ~ ~

GASKET,PUMP

1

5-14 ~ ~ ~

DIAPHRAGM,PUMP

1

5-17 ~ ~ ~

SCREEN,INLET

1

5-18 5752522580

BODY,PUMP

1

5-19 ~ ~ ~

GASKET,DIAPHRAGM

1

5-20 ~ ~ ~

DIAPHRAGM,METERING

1

5-21 47625004200

COVER,DIAPHRAGM

1

5-22 54825101200

SCREW,SET

4

A small retainer (560-02170-

20), has been added to this

model after serial # A099801

to prevent the barrel end of the

throttle wire from coming

detached from the carburetor.
