TRION CV MODEL
PRODUCT CV2 CV4
Max Air Vol m 3 /hr * 2040 4080
No. of Cartridges 2 4
Filter Area total 52m 2 104m 2
Noise level dBA* 75 dBA 75 dBA
Input Voltage 400V/3ph/50Hz 400V/3ph/50Hz
Power 3.0 Kw 5.5 Kw or (2 x 3.0 Kw)**
Efficiency 99.93% 99.93%
Cleaning System Pulse-Jet Pulse-Jet
Dust Collection Hoppers 1 2
Inlet Connection 200mm x 1 200mm x 2
Height Inlet Connection (mm) 1460 1460
Height (mm) 3170 3491 (3170)
Width (mm) 750 1500
Depth (mm) 850+200 Tank 850+200 Tank
Weight (kgs) 318 455
Nominal Resistance (Polyester Cartridge) 1500 PA 1500 PA
External available Pressure 900 PA 1600 PA (900 PA)
* Depending on configuration
** Alternatively available with 2 x 3.0 Kw or 1 x 5.5 Kw
The TRION CV Series units are freestanding, self-cleaning cartridge filters suitable for the removal of most
dry smoke and dusts (not explosive or flammable).
The filter cabinet is made from 1.5mm welded sheet metal. The unit is supplied on a stand with a collection
hopper and dust barrel which can be easily removed and emptied.
The self-cleaning system utilises compressed air which is stored in tanks on the outside of the unit. The
compressed air is led directly through the tank into the cartridges. Alternatively, the cartridges can be
cleaned during operation (on-line) or through pressure difference, which saves on compressed air.
Additionally, there is an off-line cleaning system installed. The control box with a filter monitoring
mechanism for cleaning is included. The interval-pulse sequences are individually adjustable as are
the
δ
-p-value settings.

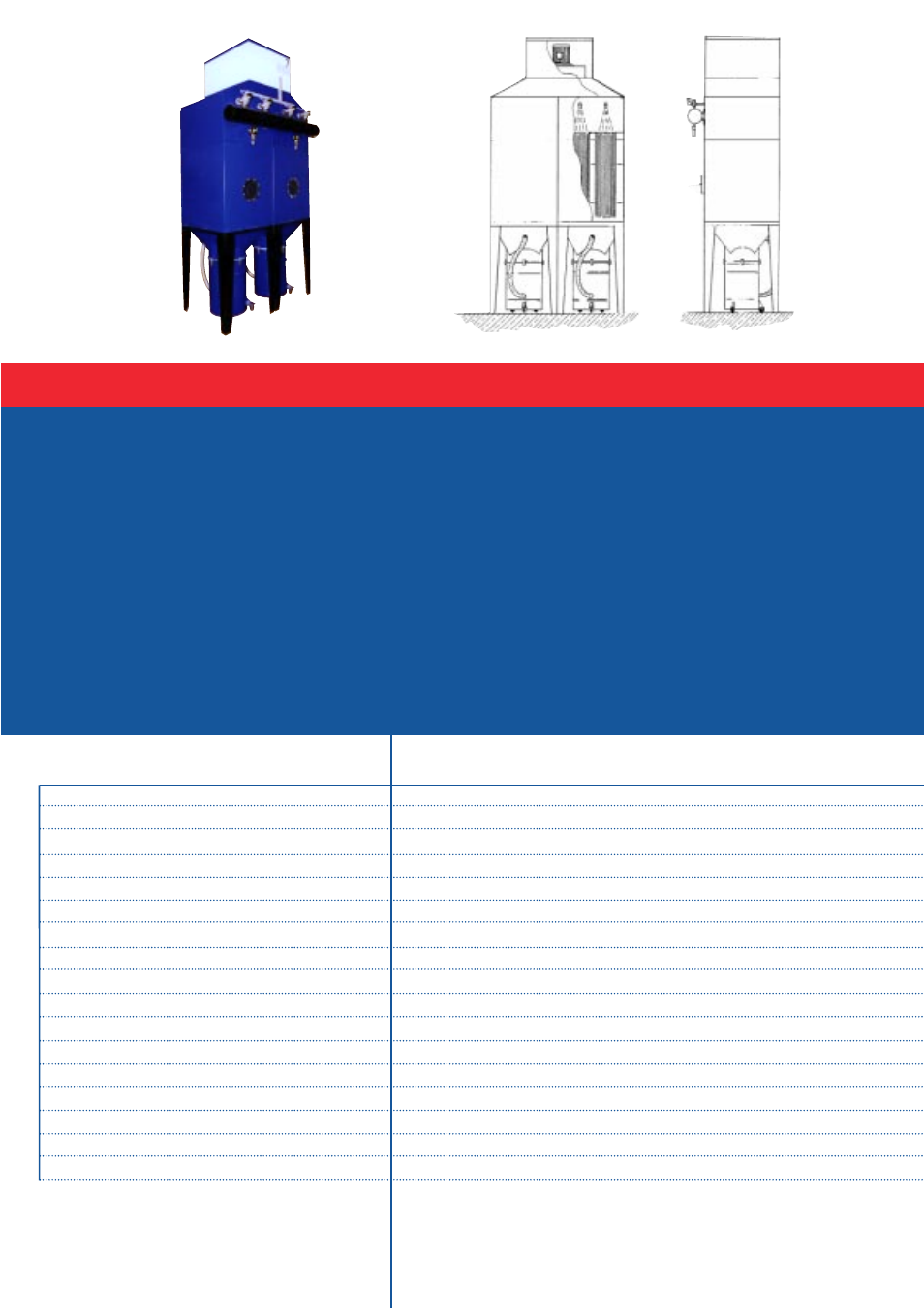

Model CV4 shown
