MIU202T-S Installation, Operation & Diagnostics Edition: March 16, 1999 Page 12

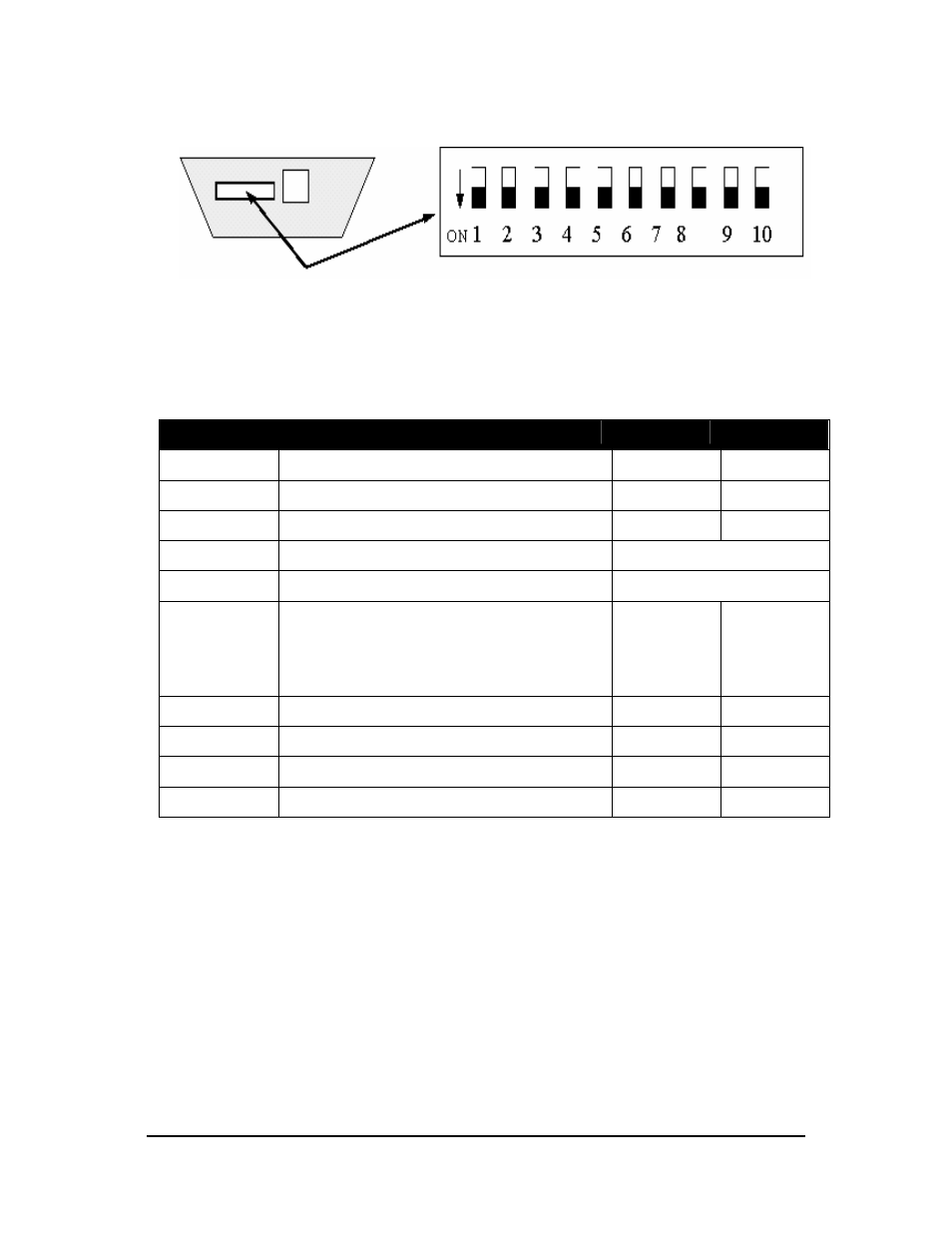

9. DIP SWITCH FUNCTIONS
IMPORTANT NOTE: Invert modem to view dip switches as shown above
Table 1
Switch Function ON OFF
Switch 1 Transmit Analog (TxA) Signal Level 0 dBm -10 dBm
Switch 2 Anti-Streaming 45 secs OFF
Switch 3 Received Analog (RxA) Signal Level -33 dBm -43 dBm
Switch 4 RTS/CTS Delay See Table 2
Switch 5 RTS/CTS Delay See Table 2
Switch 6 Switched/Constant Carrier Constant
Carrier Switched
Carrier
(Follows
RTS State)
Switch 7 2 or 4- Wire Selection 2-Wire 4-Wire
Switch 8 Line Termination 600 ohms None
(22k h
)
Switch 9 Soft Carrier (900Hz) Turn Off ON OFF
Switch 10 Spare
