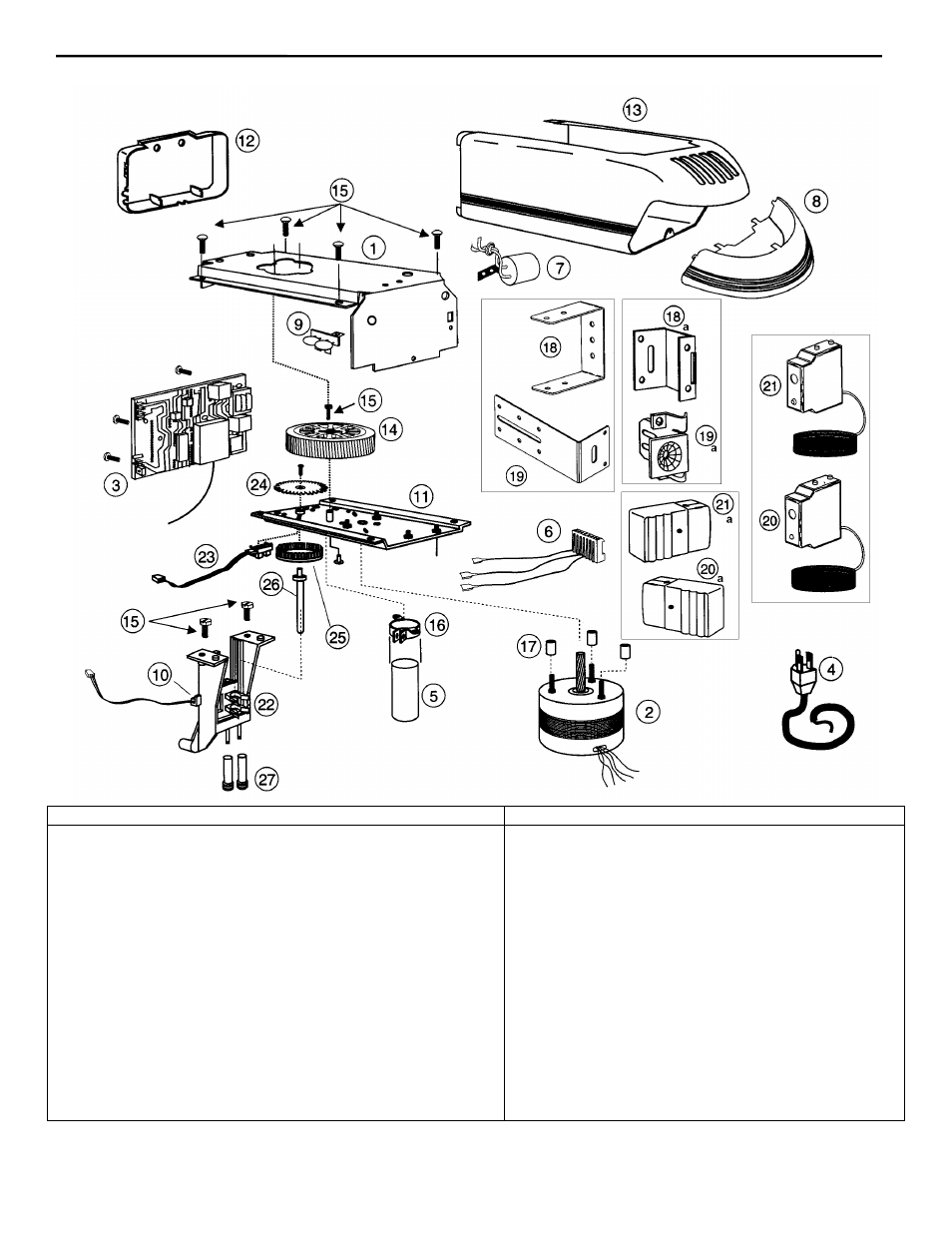

Parts Breakdown Power Head Assembly – All Models
#.
Part #
Description
Per Unit
#.
Part #
Description
# Per Unit
1.
157167
Frame
1
17.
157496
5/16” Motor Spacers
3
2.
292123
Motor – 1/2 H.P.
1
18.
157166
Wired Sensor Mounting Bracket
2
3.
306137
Motor Control Board (all
models)
1
18a.
157159
Wireless Sensor Wall Mounting
Bracket
2
4.
306364
Power Supply Cord
1
19.
157165
Wired Sensor Sliding Bracket
2
5.
260570
Capacitor – 1/2 H.P.
1
19a
157162
Wireless Sensor Mounting Bracket
2
6.
306486
Wiring Harness
1
20.
250597
Wired Receiving Unit
1
7.
269025
Light Socket
1
20a
260598
Wireless Transponder Unit
1
8.
260552
Lens
1
21.
260600
Wired Sending Unit
1
9.
252994
MOV Surge Suppressor
1
21a
260599
Wireless Sending Unit
1
10.
252993
Limit Switch
1
22.
252092
Limit Assembly (includes items
#10, 27 & 26
1
11. 252125 Sub-Frame
1
23. 249321 LED
interrupter
1
12.
260532
End-Cap
1
24.
260556
Limit Driver Gear
1
13.
260530
Housing
1
25.
157039
Interrupter Disk
1
14. 260525 Gear,
Driven
1
26.
260557
Shaft, Limit Driver
1
15.
251248
Screw 1/4-20 x 3/8
7
27. 157055
Limit
Adjuster
2
16. 249257 Capacitor
Clamp
1
