Quantum 600 XL

www.quantumrehab.com

35

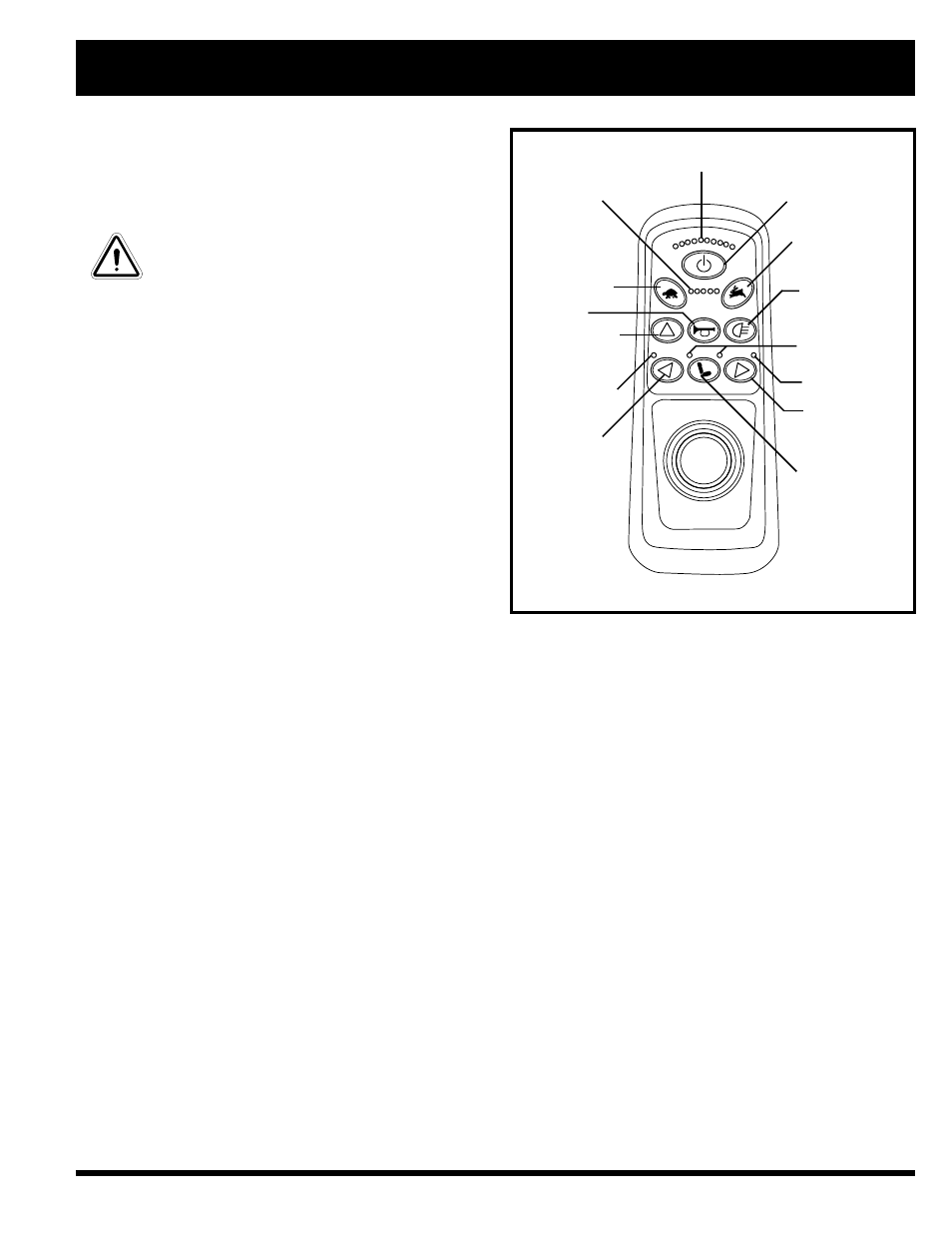

Figure 28. FLIGHT Controller Keypad

V I I . O P E R A T I O N

On/Off Key

The on/off key turns the FLIGHT on and off.

WARNING! Unless faced with an emer-

gency situation, do not use the on/off

key to stop the chair. This will cause

the power chair to stop abruptly.

WARNING! Always turn the power off

when you are stationary to prevent un-

expected movement.

Battery Condition Meter

The battery condition meter consists of ten lights arranged
in an arc over the on/off key. As the battery voltage drops,
the number of lights reduces from right to left. When the
battery capacity drops to 10% or below, the left red LED
will flash.
! Left Red LED Flashing: Battery charge is low;

charge the batteries as soon as possible.

! Right-to-Left Ripple of LEDs: FLIGHT is in lock

mode; unlock the FLIGHT.

! Left-to-Right Ripple of LEDs Alternating with

Steady Display: FLIGHT is in programming, inhibit,
or charging mode.

! Right Green LED Flashing: FLIGHT is in speed

limit mode.

! All LEDs Flashing Slowly: The joystick was not in the neutral position when the controller was turned on. If you get

“all LEDs flashing slowly,” turn off the controller, allow the joystick to return to the neutral position, then turn on the
controller.

! All LEDs Flashing Quickly: The FLIGHT has detected a fault; Refer to the Error Code table.

Lock Mode

The FLIGHT controller is equipped with a feature that enables you to “lockout” unauthorised users.

To lock the FLIGHT controller:
1. While the power is on, press and hold the on/off key for 2 seconds. The display will turn off immediately. After 2

seconds, all LEDs will flash briefly and the horn will sound a short beep.

2. The FLIGHT controller is now locked.

To unlock the FLIGHT controller:
1. While the FLIGHT is locked, press the on/off key to turn on the FLIGHT. All LEDs will flash briefly. The LEDs will

then slowly ripple from right to left.

2. Press the horn key twice before the LED ripple has completed, approximately 10 seconds. The FLIGHT is now

unlocked.

Actuator Keys and Actuator Lights (For Optional Equipment)

Actuator keys and actuator lights are used for optional equipment such as power elevating leg rests. For specific operation
of the actuator keys and actuator lights, contact your Quantum Rehab Specialist.

BATTERY CONDITION METER

SPEED SETTING
INDICATOR

TORTOISE KEY

HAZARD LIGHT
KEY (OPTIONAL)

INDICATOR LIGHT

LEFT TURN
INDICATOR KEY
(OPTIONAL)

ON/OFF KEY

HARE KEY

HORN KEY

HEADLIGHT KEY
(OPTIONAL)

ACTUATOR LIGHTS

INDICATOR LIGHT

SEAT ACTUATOR
KEY (OPTIONAL)

RIGHT TURN
INDICATOR KEY
(OPTIONAL)
