Using VGM to create a test sequence
You can use VGM to create and run test sequences.

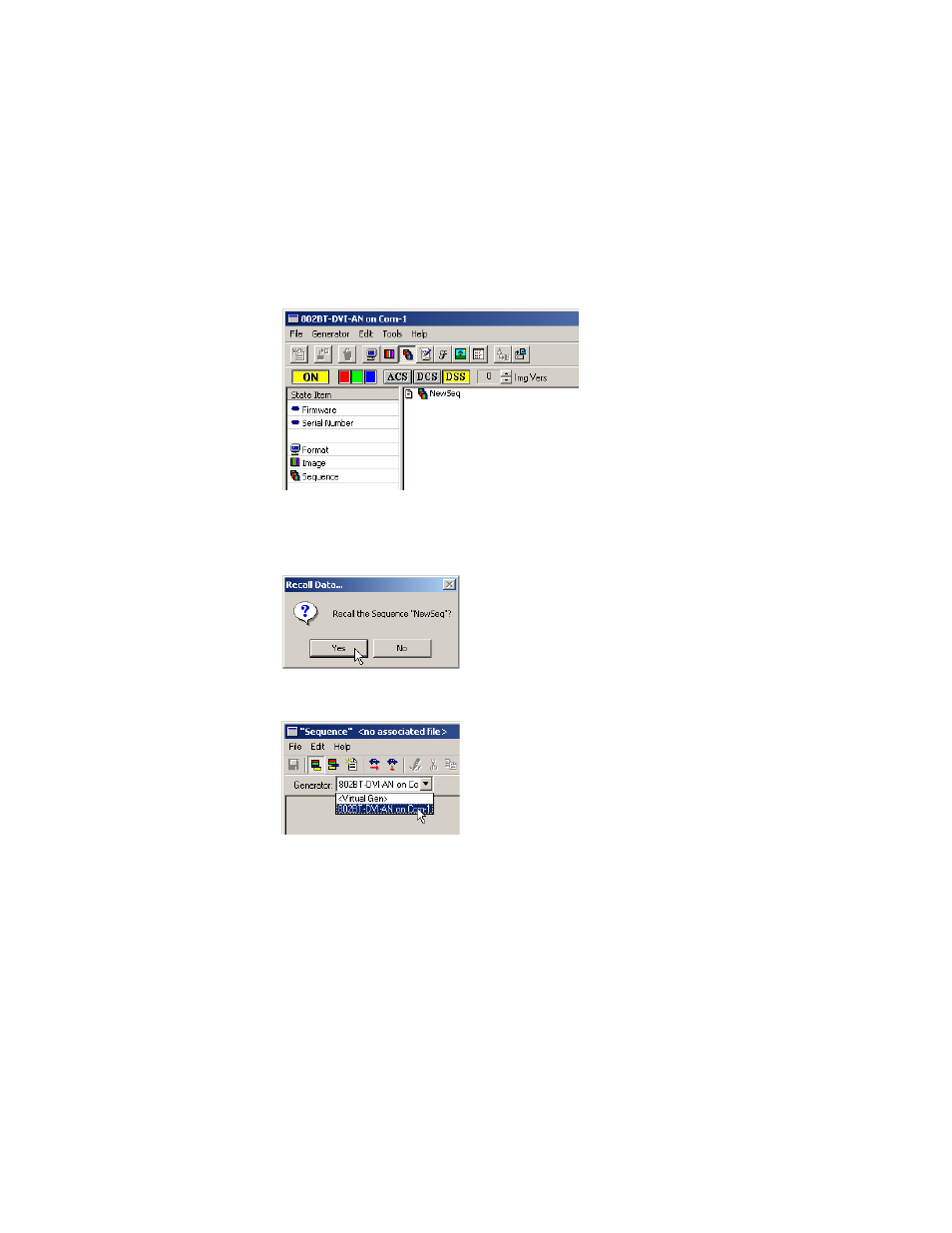

To create a sequence using VGM:
1. Connect VGM with the generator.
2. Double-click the generator name to open the generator window.
3. In the generator window, right-click the NewSeq object, and then choose Edit.
4. In the Recall Data dialog box, click Yes.
5. ]In the Sequence Editor, select your generator from the Generator list.
6. The NewSeq file, which is a template for creating new sequences, contains default
steps. Modify these steps, and values, as needed.
