I I I . Y O U R P O W E R C H A I R

Battery Connector: This is where the controller connects to the batteries.

Charger Inhibit Connector (optional onboard charger only): The charger inhibit enables the onboard battery charger
to disable the controller during charging. See VII. “Operation.”

Controller Connector: This is where the controller connects to the power base.

Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries and the
motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage to the motors and
the electronics. If the circuit trips, allow your power chair to “rest” for approximately one minute. Next, push in the circuit
breaker button, turn on the controller, and continue normal operation. If the main circuit breaker continues to trip repeat-
edly, contact your Quantum Rehab Specialist.

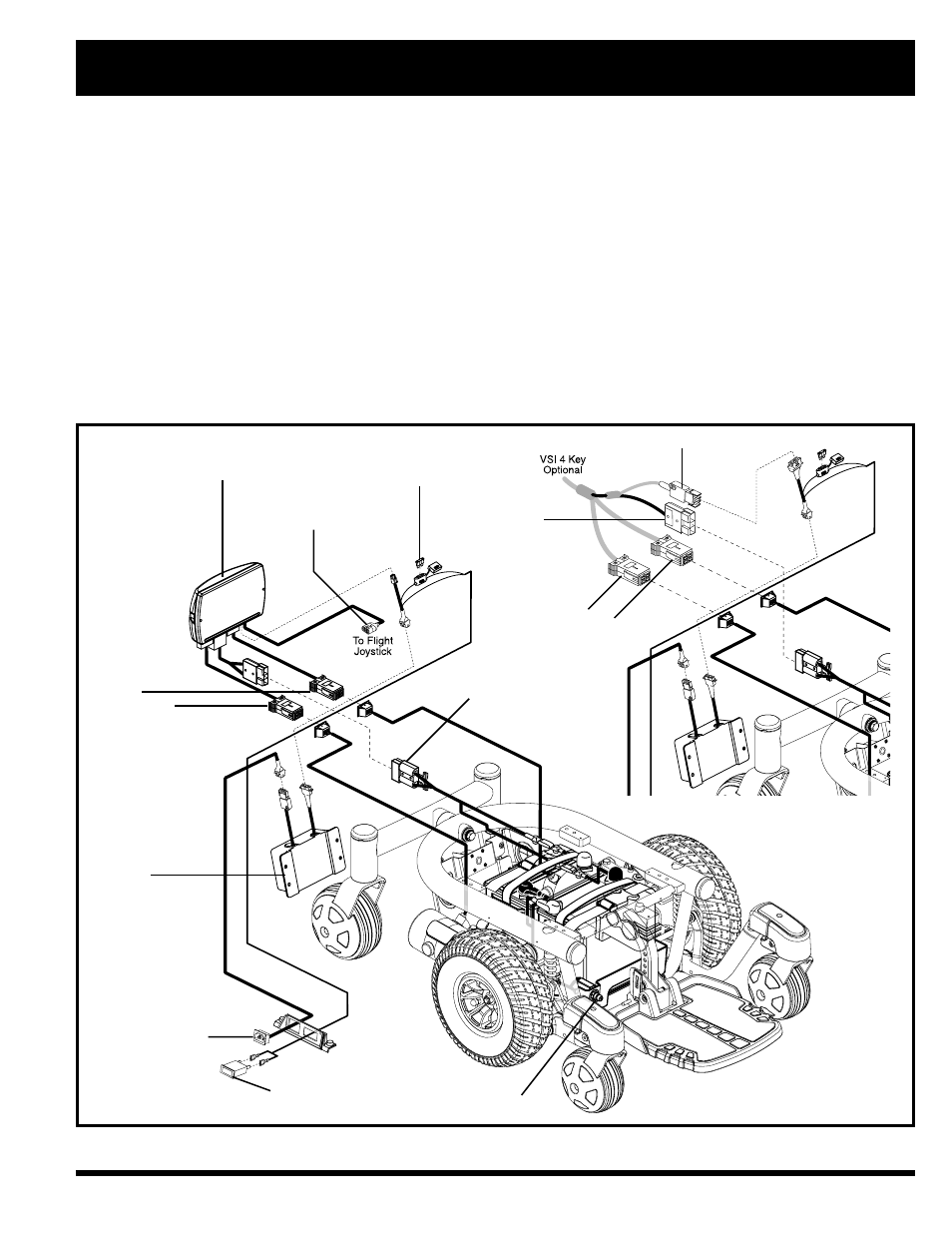

Figure 7. Quantum 610 Electrical Components (Shown With Optional Onboard Battery Charger)

BATTERY
CONNECTOR

CHARGER POWER
CORD RECEPTACLE

CHARGER CIRCUIT FUSE

ONBOARD BATTERY
CHARGER

MAIN CIRCUIT BREAKER

AMMETER

FLIGHT POWER MODULE

MOTOR
CONNECTORS

CHARGER INHIBIT CONNECTOR

BATTERY
CONNECTOR

VSI CONTROLLER

CONTROLLER CONNECTOR

MOTOR
CONNECTORS
