Page 4
PowerLight 2 Series

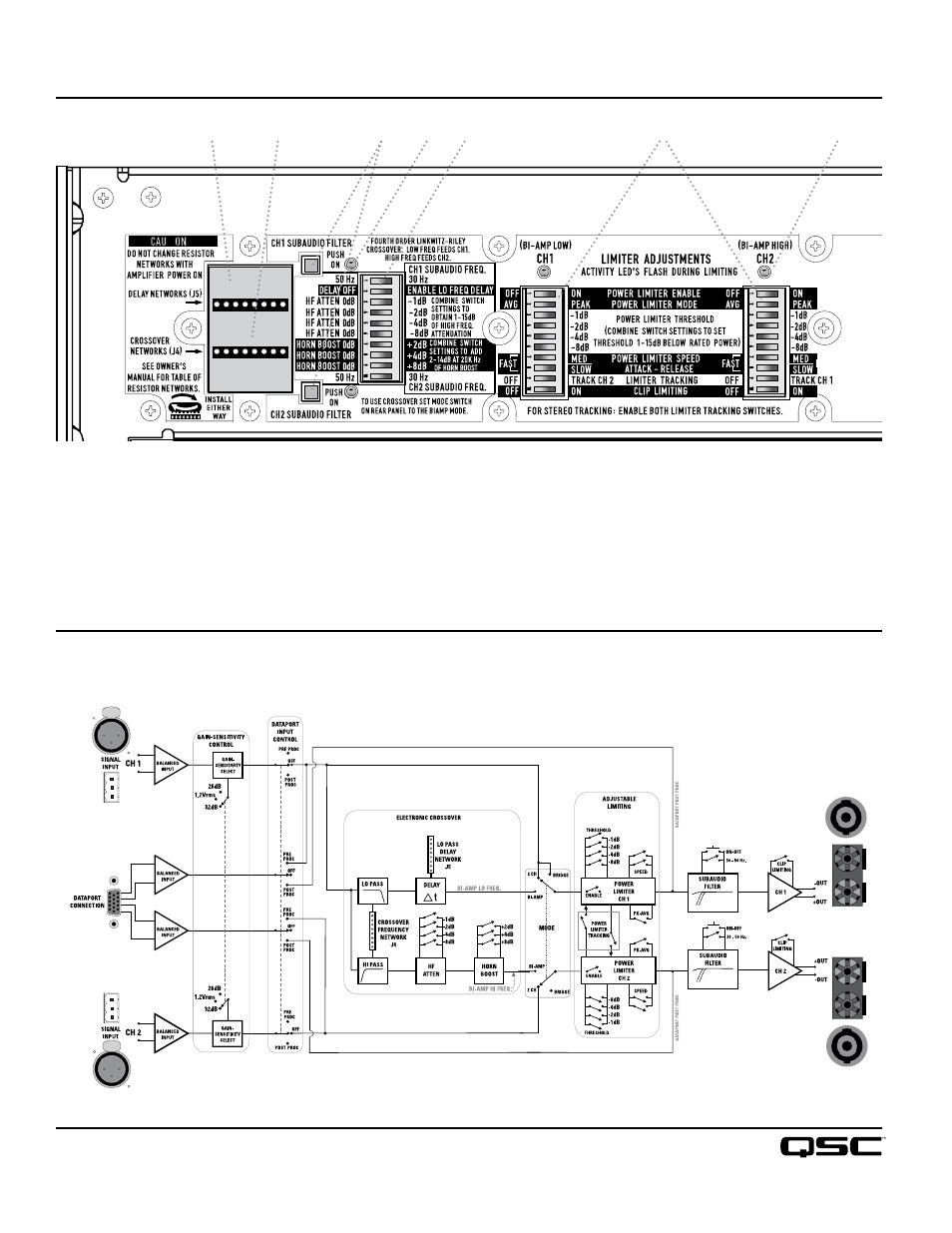

Side Panel | Block Diagram
qscaudio.com
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
PowerLight 2 Spec Sheet - 07/24/06
PL2A Model
PL2A Model
1
2
3
4
5
6
7
1 Low pass delay network SIP* socket (J5)
2 Crossover frequency network SIP socket (J4)
3 Subaudio filter push-button switches (1 per channel)
4 Subaudio filter “on” indicator LEDs (1 per channel)
5 DIP** switch for subaudio filter frequency select, low frequency delay
enable, HF attenuation and horn boost
6 DIP switches for power limiting adjustments and clip limiting enable
7 Activity LEDs for indication of power limiter activity (1 per channel)
* SIP is the abbreviation for Single-In-line Package
** DIP is the abbreviation for Dual-In-line Package
