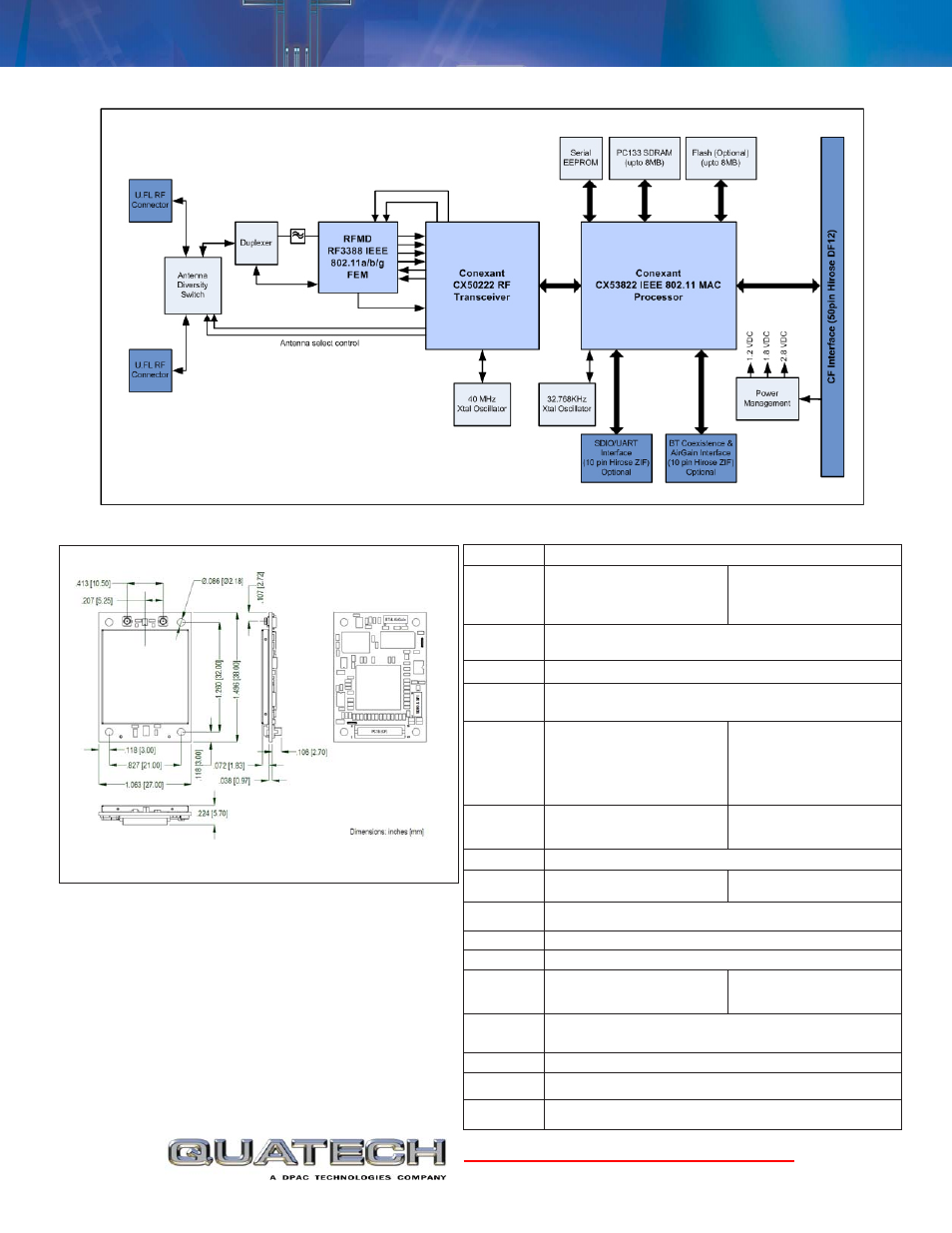

Block Diagram
5675 Hudson Industrial Parkway Hudson, OH 44236
1.800.553.1170 www.quatech.com
Rev. B 2/2008 © 2008 Quatech, Inc.
Specifications
Technology IEEE 802.11a/b/g, WiFi Compliant
Frequency 802.11a
5.15-5.35 GHz (US/Canada/Europe/Japan)
5.47-5.725 GHz (Europe)
5.725-5.825 GHz (US/Canada/China)
802.11b/g
2.4-2.4835 GHz (US/Canada/Europe)
2.4-2.497 GHz (Japan)
Modulation
Technology
DSSS, CCK, OFDM
Modulation Type DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Network Access
Modes Infrastructure, ad-hoc
Channels 802.11a
US/Canada - 12 channels
Europe - 19 channels
China - 5 channels
Japan - 4 channels 802.11b/g
US/Canada - 11 channels (1-11)
Europe - 13 (1-13)
France - 4 channels (10-13)
Japan - 14 channels (13 channels for ‘g’
rates)
Wireless Data
Rates 802.11a - 54,48,36,24,18,12,9,6 Mbs 802.11b - 11,5.5,2,1 Mbs
802.11g - 54,48,36,24,18,12,9,6 Mbs
MAC CSMA/CA with ACK, RTS, CTS
Transmit Power 802.11a - 14dBm (25mW)
802.11b - 15dBm (32mW)
802.11g - 14.5dBm (28mW)
Security
Protocols Disabled, WEP 64 and 128 bit, WPA (TKIP), WPA (AES), WPA2 (AES), 802.1x
(EAP) Supplicant
Antenna Two U.FL coaxial connectors, 50 ohms, supports receive diversity
Supply 3.3Vdc +/-5%
DC
Characteristics
802.11a
TX current = 500mA typical
RX mode = 360mA typical 802.11b/g mode
TX current = 500mA typical
RX mode = 340mA typical
Operating &
Storage
Temperature Operating: -40°C to +85° C Storage: -55°C to +150° C
Connector 50 Pin High Density SMT connector from Hirose (DF12-50DS-0.5V), 4mm Height
Interface PC16 (CompactFlash), SDIO (1 & 4 bit), SPI (1 & 4 bit), Bluetooth Coexistence,
Airgain Smart-antenna
Agency
Approvals FCC Part 15 Class B Sub C Intentional Radiator, IOC XXXX
Mechanical Outline
