PLX1104 PLX1804 PLX1802 PLX2502 PLX3102 PLX3602
Stereo Mode (both channels driven)*
8Ω FTC 20 Hz – 20 kHz 0.05% THD 310 W 550 W 320 W 425 W 550 W 725 W
8Ω EIA 1 kHz 0.1% THD 325 W 600 W 330 W 450 W 600 W 775 W
4Ω FTC 20 Hz – 20 kHz 0.05% THD 500 W 800 W 525 W 675 W 900 W 1100 W
4Ω EIA 1 kHz 0.1% THD 550 W 900 W 575 W 750 W 1000 W 1250 W
2Ω EIA 1 kHz 1% THD − − 900 W 1250 W 1550 W 1800 W
Bridge-Mono Mode*
8Ω 20 Hz - 20 kHz 0.1% THD − − 1100 W 1400 W 1900 W 2500 W
8Ω EIA 1 kHz 0.1% THD − − 1200 W 1500 W 2100 W 2600 W
4Ω 1 kHz 1% THD − − 1800 W 2500 W 3100 W 3600 W
Signal to Noise (20 Hz - 20 kHz) -106 dB -106 dB -107 dB -106 dB -107 dB -107 dB
Input Sensitivity at 8Ω 1.18 Vrms 1.20 Vrms 1.28 Vrms 1.15 Vrms 1.23 Vrms 1.25 Vrms
Voltage Gain at 8Ω 32.5 dB 35 dB 32 dB 34 dB 35 dB 36 dB
Output Circuitry Class AB 2-tier Class H Class AB 2-tier Class H 2-tier Class H 2-tier Class H
Power Requirements (1/8 power, pink noise at 4Ω) 8 A /120V 9.4 A /120V 8.7 A /120V 7.5 A /120V 9.5 A /120V 11.5 A /120V
04 MODELS 02 MODELS
Distortion (SMPTE-IM) < 0.02% < 0.02%
Distortion (typical)
1/8 rated power, 20 Hz – 20 kHz < 0.02% < 0.02%
Full rated power, 20 Hz – 20 kHz < 0.02% < 0.02%
Damping Factor > 200 > 500
Input Impedance 10k ohms unbalanced / 20k ohms balanced 10k ohms unbalanced / 20k ohms balanced
Input Clipping 5.5 Vrms (+15 dBu) 11 Vrms (+21 dBu)
Cooling Variable-speed fan, rear-to-front air flow Variable-speed fan, rear-to-front air flow
Input Connectors, each channel 3-pin XLR and 1/4" TRS balanced, parallel 3-pin XLR and 1/4" TRS balanced, parallel
Output Connectors, each channel Neutrik NL4 Speakon ® / Neutrik NL4 Speakon ® and touch-proof binding posts /
Both channels available on Ch 1 NL4 connector Both channels available on Ch 1 NL4 connector
Amplifier Protection Full short circuit, open circuit, thermal, Full short circuit, open circuit, thermal,
infrasonic, ultrasonic, and RF protection. infrasonic, ultrasonic, and RF protection.
Stable into reactive or mismatched loads Stable into reactive or mismatched loads
Load Protection On/off muting, On/off muting,
DC-fault power supply shutdown DC-fault power supply shutdown
Dimensions
Height 3.5" (8.9 cm) - 2 RU 3.5" (8.9 cm) - 2 RU
Width 19" (48.3 cm) 19" (48.3 cm)
Depth - Rack mounting surface to rear 8.95" (22.7 cm) 12.8" (32.6 cm)
- Overall 11" (27.9 cm) 14.875" (37.9 cm)
Weight - Shipping / Net 18 lb (8.2 kg) / 13 lb (5.9 kg) 26 lb (11.8 kg) / 21 lb (9.5 kg)
Agency Approvals CE, FCC, cUL, UL CE, FCC, cUL, UL
PLX2 Series
Specifications
qscaudio.com
Specifications subject to change without notice.
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
PLX2 Spec Sheet 06/05/08

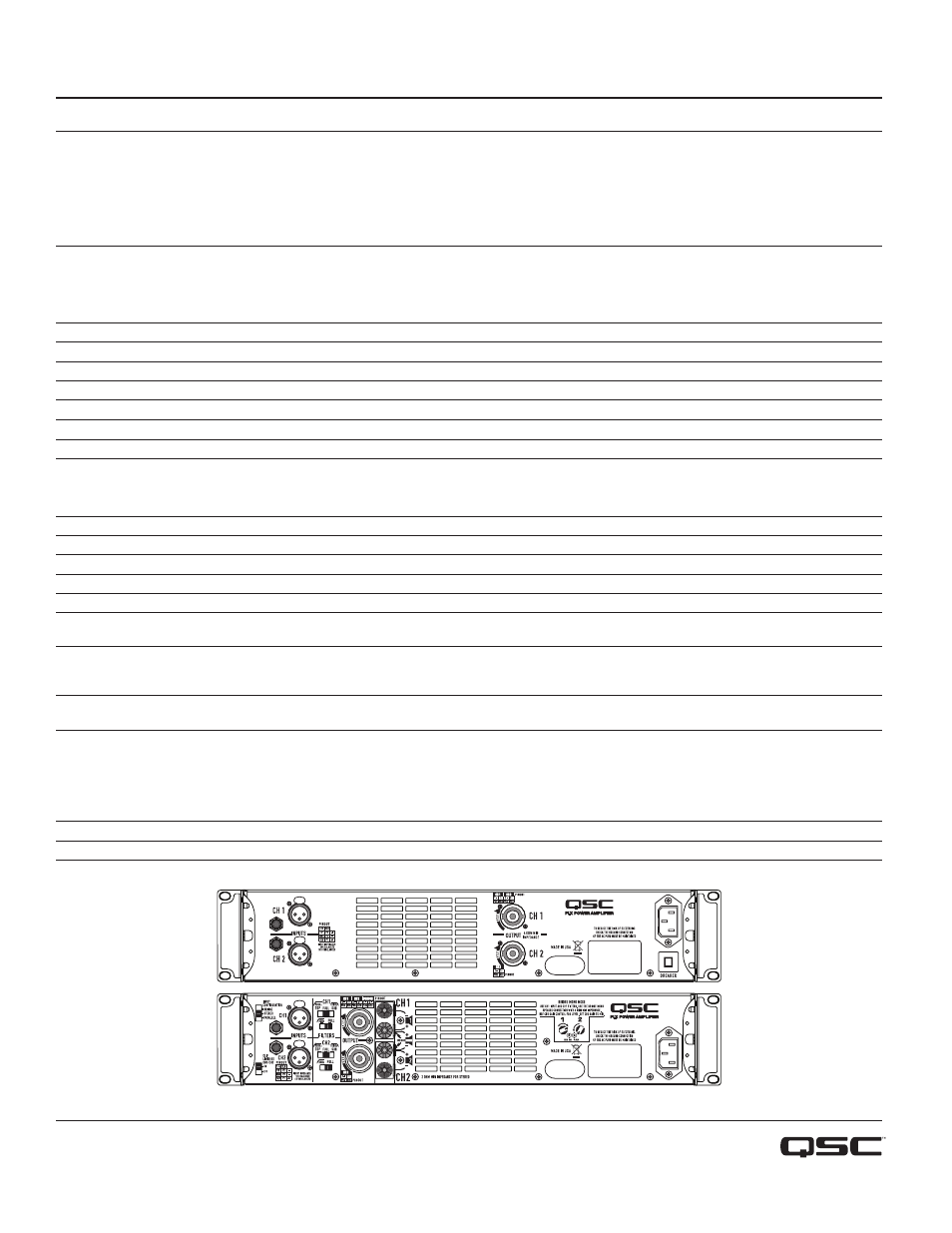

02 MODELS
04 MODELS
* CE versions may have up to 12% (0.5 dBw) less power due to special construction to meet EN-61000 AC harmonic limits
