28 Quadra-Fire • Sapphire • 7055-116 Rev. D • 6/11

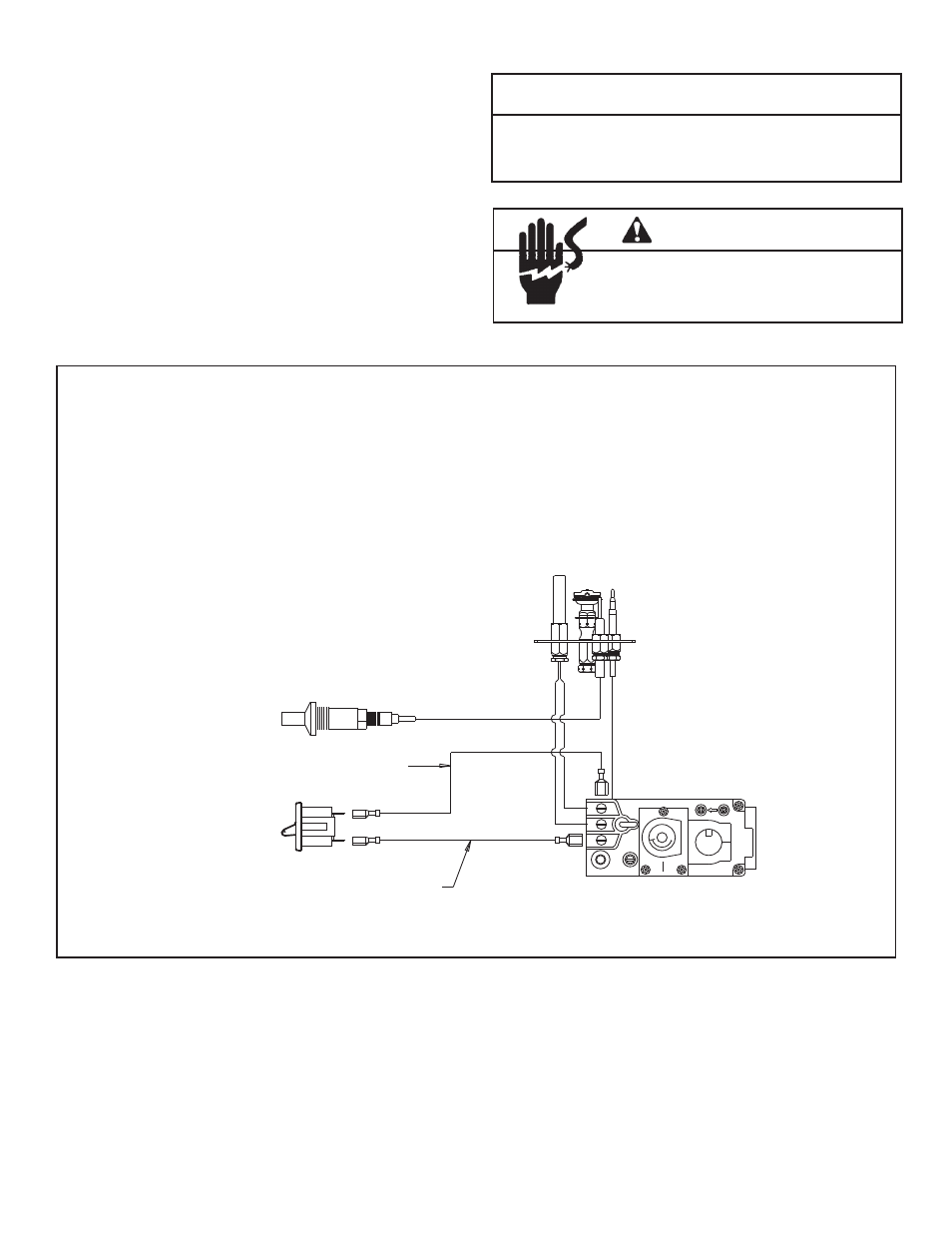

Figure 7.1
CAUTION
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Shock hazard.
• Replace damaged wire with type 105
O C
rated wire.
• Wire must have high temperature insulation.
CAUTION
Red
28 in. (711mm)
Ignitor
Switch
ON/OFF
O FF
PIL O T
ON
T P
T H
T P T H
LO
H I
E A
P I L O T
Thermopile Gas Pilot Ignitor Thermocouple
Valve
Red
28 in. (711mm)
C. Standing Pilot Ignition System Wiring
This appliance DOES NOT require 110 VAC supply for
operation. See wiring diagram below.
This appliance is equipped with a millivolt control valve.
