Quadra-Fire MTVERNON-AE-CWL - Manual (Page 40)

Page 40 7034-106E September 1, 2008
R Mt. Vernon Pellet Stove (AE)

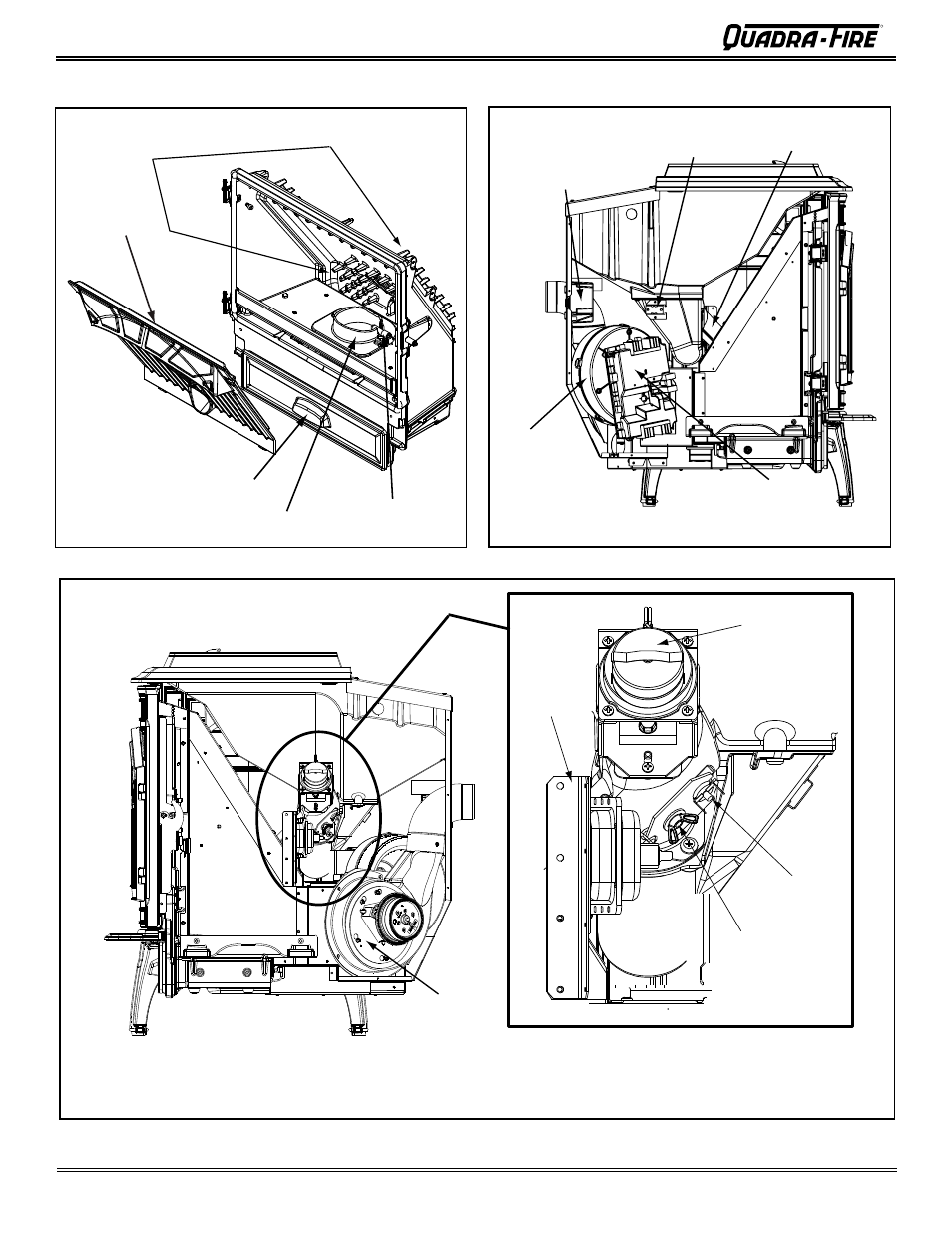

B. Component Locations
Baffle
Firepot
Ash Pan
Thermocouple and
Thermocouple Cover
Heat Exchanger,
Front & Back
Figure 40.1
RIGHT SIDE
Combustion
Blower
Vacuum
Switch
Feed Motor
Overheat
Sensor
Wing Nut - Securing
Overheat Sensor in
place
Power
Supply
Low Fuel
Indicator
Control Board
Convection
Blower
Drob Tube
Figure 40.3
Figure 40.2
LEFT SIDE
