CV-160
Power Consumption 50mA (max.)
Video In connector DB-15 x 1 Male
Video Out Connector HD-15 x 1, Female
ADB Interface Mini DIN 4-pin x 2. Female
PS/2 Keyboard Connection Mini DIN 6-pin x 1, Female
PS/2 Mouse Connector mini DIN 6-pin x 1, Female
DIP Switch 8 bits x
1
Power ON/OFF Push Button x
1
Status
LED Red LED x
1
Operation Temp. 5°C ~ 40°C
Stock Temp. -20°C ~ 60°C
Humidity 0% ~ 80%
Enclosure Plastic
- -
Weight
130g
Dimensions (LxWxH) 100 x 80x 36 ( m m )
4

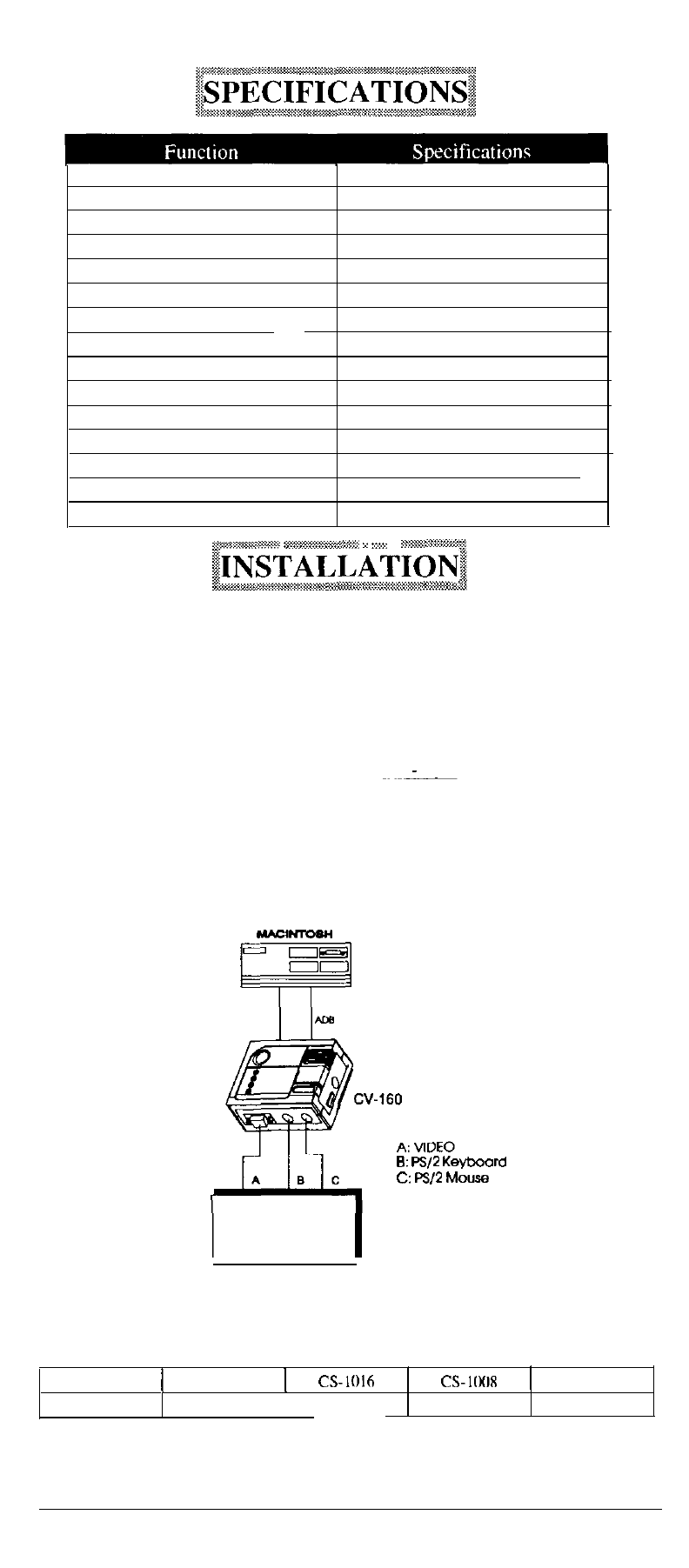

1. DEVICE CONNECTION:
1) Mac must be powered off before cable connection for safety
and peripheral enumeration.
2) Connect the CV-160 to a MAC computer, a PS/2 keyboard, a
PS/2 Mouse and a PC Monitor, see figure 1.
3) Press CV-160 POWER ON/OFF key to turn on the Mac.
Optional Connection
:
4) Remote control with CE-120,
Manual of CE- 120, see figure 2.
5) Console switch with CS-104,
Manual of CS-104, see figure 3.
please refer to the User’s
please refer to the User’s
CS Series Keyboard,
Mouse. Monitor
(The above device must have the PS/2 function)
Fig. 3 CS-Series application
l
Relativity Product List
cs-104 cs-122 CS-124
CS-221
1
CE-120 cv-130
For detail information of above products, please contact your
local dealer.
