QSC Audio WL2102 User Manual
QSC Audio Camcorders

To House
Left Sub
Amp Gain
-10 dB
Loudspeaker
Cables
Amplifier
Channels
Line-Level
Audio Cables
SC28
1±
1±
1±
1±
4±
4±
Subwoofer
Subwoofer
Low Frequency
Low Frequency
High Frequency
High Frequency
Set SC28 “AMP GAIN” Value to Match Amplifier Setting.
Source Left
Source Right
Array Config
WL10 2way
Setup Highlights:
In the SC28’s “Setup Menu”, select:
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main (714) 754-6175 Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834

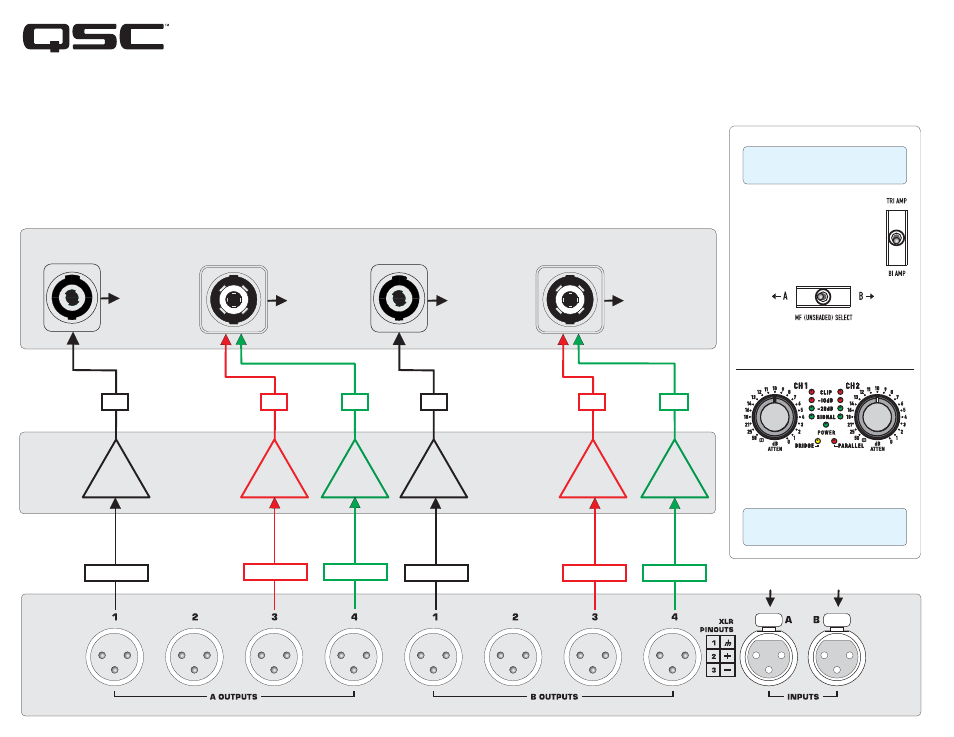

SC28 Biamp Connection Diagram for QSC’s WideLine-10 Loudspeaker System (WL2102)
In the Setup Menu…
•In the Input Sens menu, set the input sensitivity to correspond with expected audio source levels.
•In the Array Config menu, select the crossover type as WL10 2way.
•In the Array Size menu, select the number of enclosures in each array.
•In the Total Splay menu, select the total of all the splay angles between the enclosures in each array. For more info go to http://www.qscaudio.com/products/dsp/sc28/sc28_array_compensation_eq.pdf
•In the Subwoofer menu, select the appropriate QSC sub, “None” for no sub, or “Bypass/Thru” to use an external crossover and EQ for the sub.
If the system includes subwoofers…
•In the Sub Management menu, configure the subwoofers as Stereo or Summed Mono.
•In the Sub Gain menu, adjust the level to compensate for the use of more or fewer subwoofers than a typical system.
•In the Sub Delay and Array Delay menus, you may add alignment delays if necessary.
•In the Limiters menu, configure the output limiters to protect the loudspeakers or for clip limiting only of the SC28 output. Disabling the loudspeaker protection is not recommended.
•In the Out Amp menus, select the QSC amplifier attached to each output.
•In the Out Amp Cfg menus, select whether each amplifier is configured as Stereo or Bridge Mono.
•In the Amp Gain menu, select the gain to match the gain control settings of the amplifiers connected to the outputs. All amplifiers must be set to the same value.
In the EQ Menu…
•Adjust the equalization to compensate for environmental factors.
To House
Left Array
To House
Right Sub
To House
Right Array
NL4
NL4
NL8
NL8
Set WL2102 MODE selector to BIAMP.
This switch selects the side of the Mid Frequency transducer.
Typically, this switch should point toward the audience.
Panel-mount Neutrik
®
Speakon
®
Connectors
Set Amplifier Gain Controls to Same Setting.
