6
O PTIONAL E QUIPMENT C ONNECTIONS
Optional Equipment Connections
VCR Connection
VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the
optional equipment manual for more information.
Note: INPUT 1 is a dual-purpose input. It is primarily intended for connection with 480i devices such as a DVD player using
the Y P
B
P
R
component video jacks and Audio L & R jacks. However, it can also be connected to conventional
composite video sources such as a VCR, using only the Y/Video jack and Audio L & R jacks. The on-screen label will
display Component or Video 1 depending on which source is connected.
Procedure
1. Connect equipment as shown to rear Audio/Video input jacks.
2. Select the Video mode by pressing TV/VIDEO button.
3. Operate optional equipment as instructed in equipment manual.
Front Control Panel
The front control panel can be used to access menus and switch video mode when the remote control is not available.
Press to select VIDEO input mode.
L
R
ANT IN
VIDEO OUT
AUDIO OUT
ANT OUT
COMPONENT
VIDEO INPUT
INPUT 1
R AUDIO L
P
B
P
R
Y/VIDEO
TO AUDIO
AMP
L
R
R AUDIO L INPUT 2 VIDEO
S-VIDEO
CABLES NOT SUPPLIED

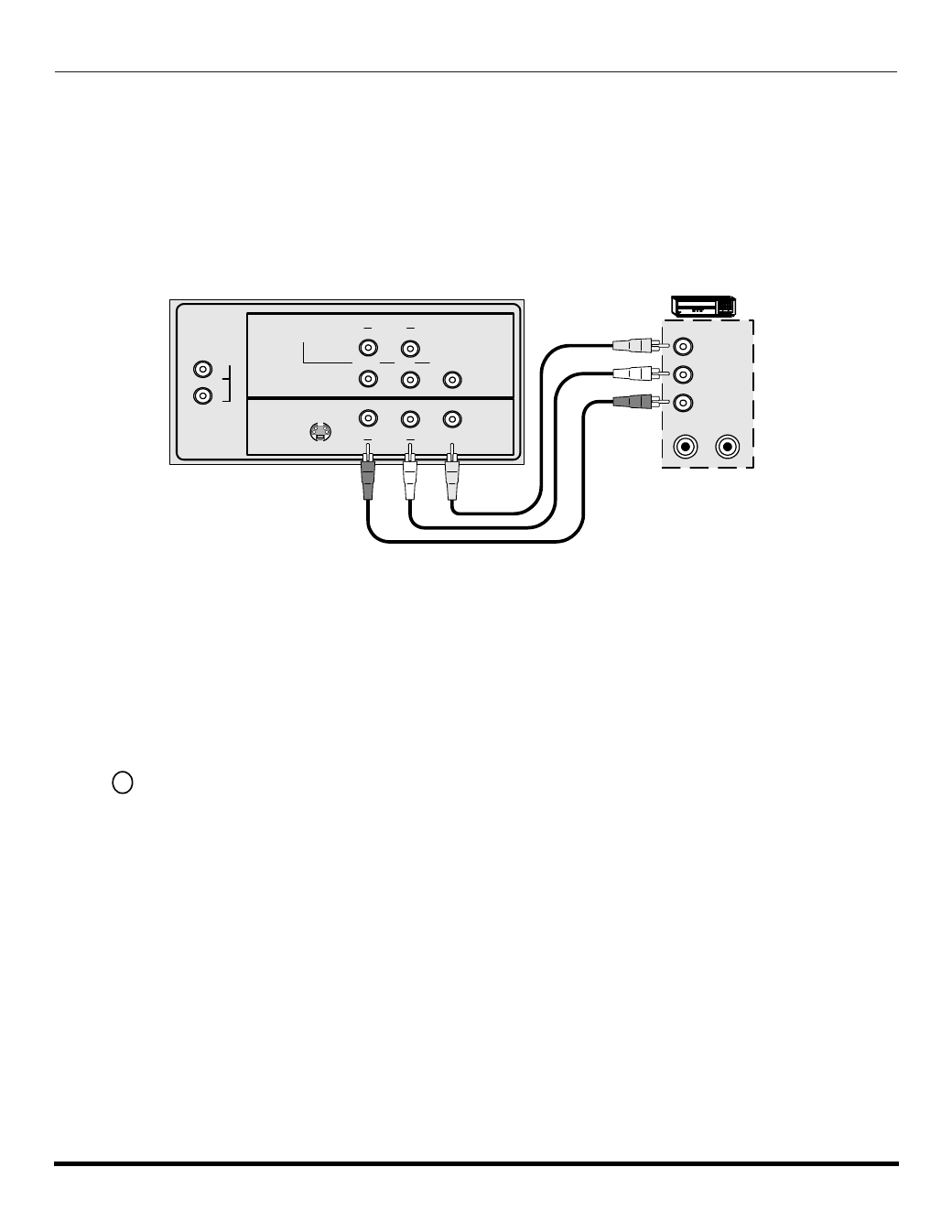

VCR CONNECTION ON BACK OF TV
TV/VIDEO
