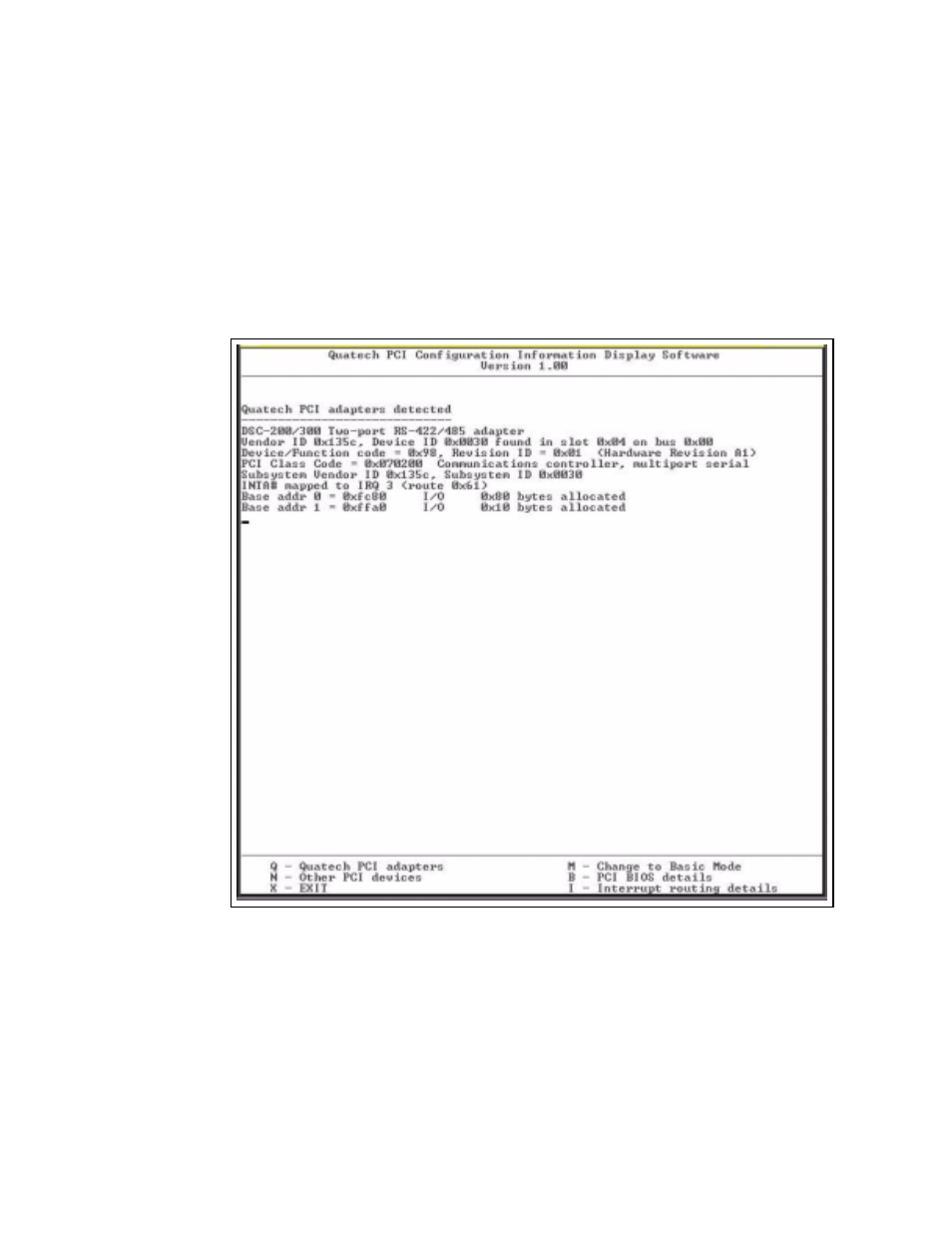

Figure 14 shows the Expert Mode display for the DSCLP-200/300 after
the "Q" key has been pressed. The information from the Basic Mode display is
presented along with more details such as the Vendor and Device IDs, PCI Class
Code, size of memory and I/O regions, etc. Pressing the "N" key will show
similar information for all non-Quatech PCI devices in the system, including those
devices integrated on the motherboard. In this example, the "Base addr 0"
resource is reserved.
For users interested in even more details, PCI BIOS information can be
displayed by pressing the "B" key. Pressing the "I" key displays the PCI interrupt
routing table.
Figure 14 --- QTPCI.EXE Expert Mode display
DSCLP/SSCLP-200/300 User's Manual 37
