8
EN

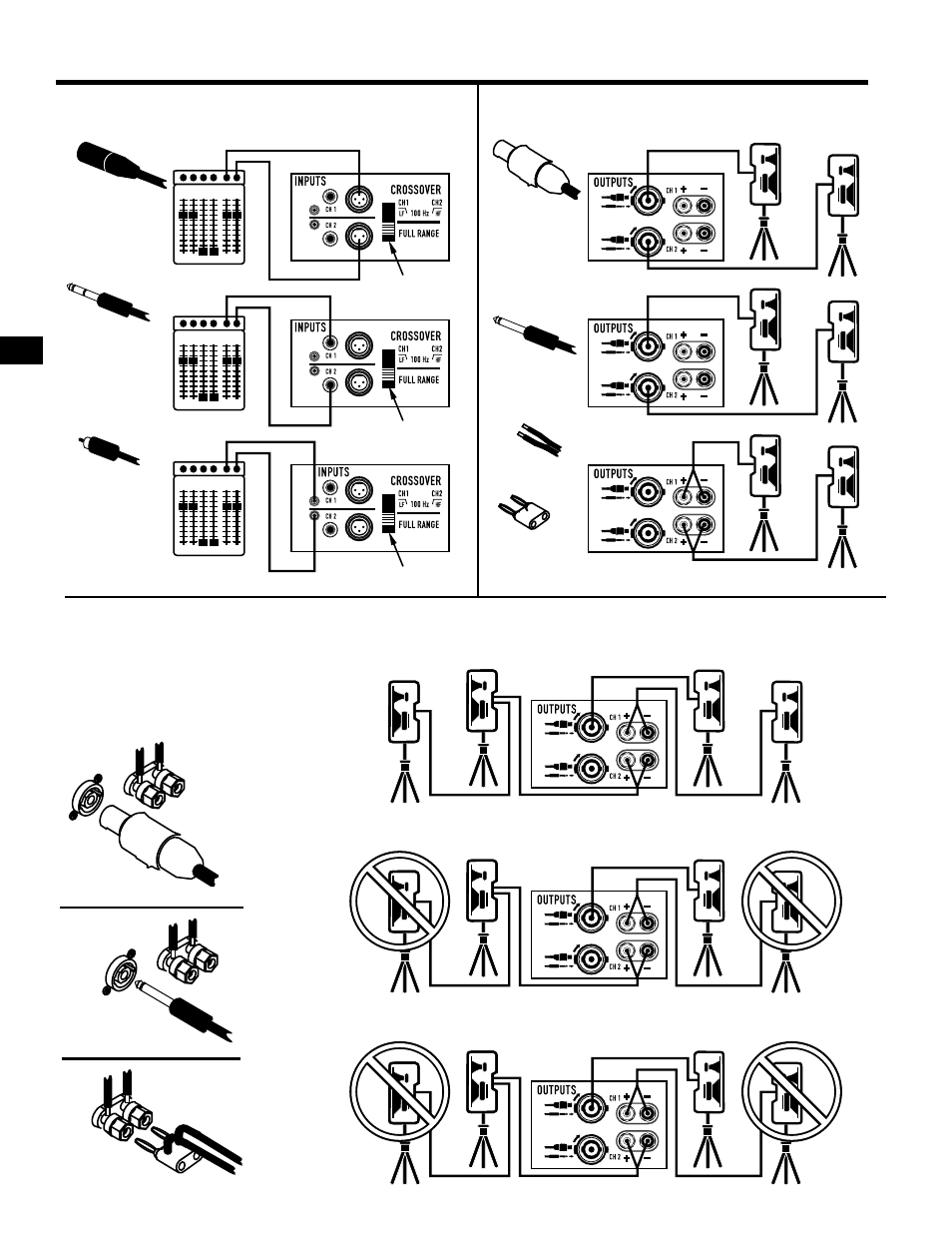

SYSTEM HOOKUP EXAMPLES
INPUT CONNECTIONS
XLR
MIXER
SIGNAL LEVEL SOURCE
¼
MIXER
SIGNAL LEVEL SOURCE
PHONO
MIXER
SIGNAL LEVEL SOURCE
SET TO FULL RANGE
SET TO FULL RANGE
SET TO FULL RANGE
SPEAKER CONNECTIONS
SPEAKON
¼
WIRE
BANANA JACKS
8 OR 4 OHM
CONNECTION MULTIPLE SPEAKERS
To connect two speakers to one amplifier channel,
connect one speaker with Speakon or 1/4 –inch jack,
and connect the other speaker with a banana plug
or wires to the binding posts.
It is also possible to use banana plug for one speaker,
and binding post wires for the other speaker.
Second speaker
Second speaker
Second speaker
First speaker
First speaker
First speaker
Speakon
and wires to
the binding posts.
1/4 –inch jack,
And wires to the
binding posts.
banana plug
and binding post
One 4-OHM speaker, or two 8-OHMspeakers, may be connected to each channel.
If speakers have pass through jacks, do not put more than two in a chain.
8 OHM
8 OHM
8 OHM
8 OHM
8 OHM
8 OHM
4 OHM
4 OHM
4 OHM
4 OHM
4 OHM
4 OHM
