9 . Lo-Pass Crossover Frequency Control - adjusts the frequency of the crossover .
0 . Remote Bass Gain Jack - connects RGC-2 (remote bass control) .
. Status LED - Will indicate any fault condition in amplifier, also lights briefly during
muting phase of turn-on .

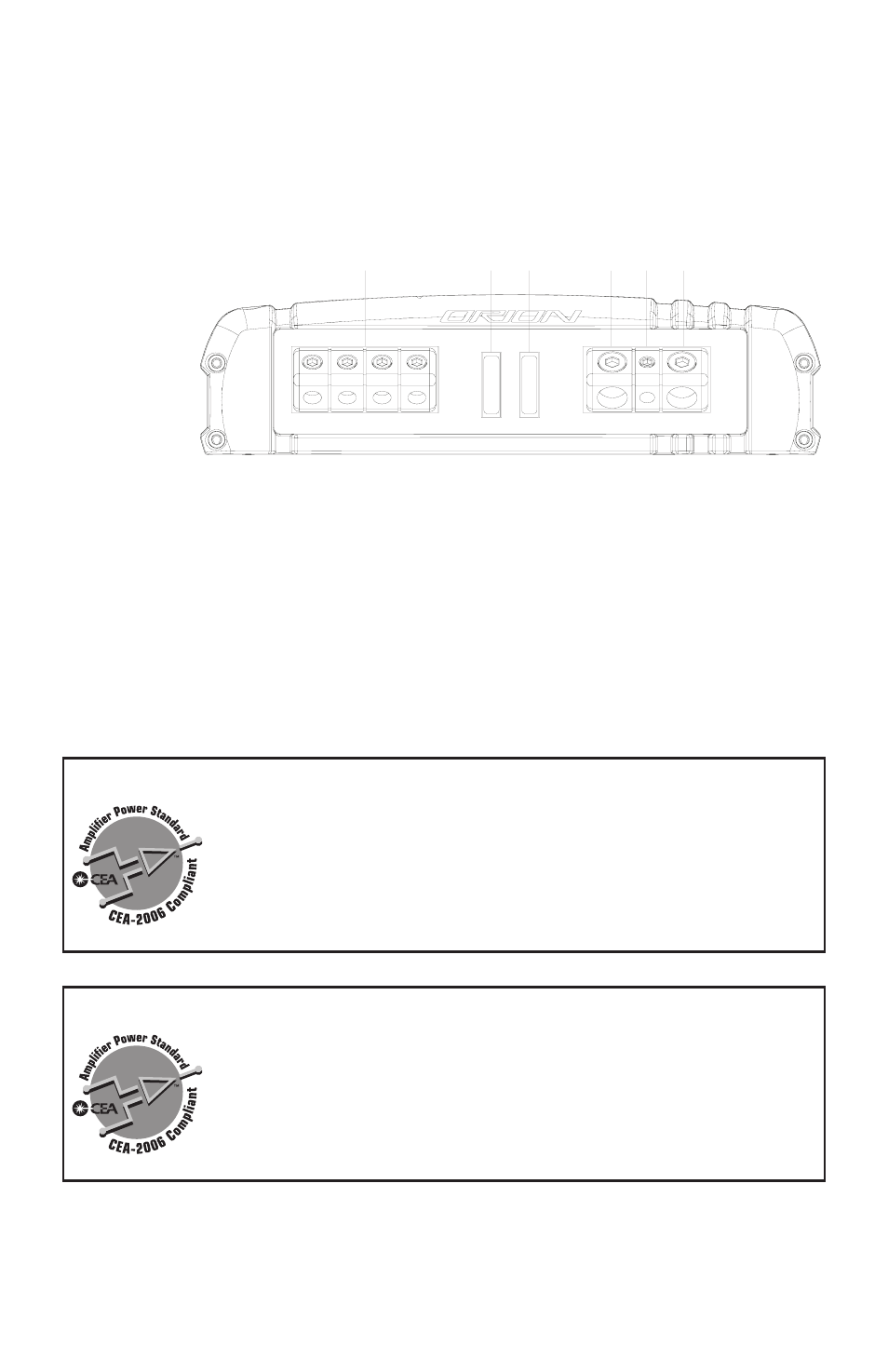

Output Plate
Figure 2
Figura 2
Abbildung 2
2
3 4
5
6
7 8
9 10 11
13
12
1
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
2
3
2
2
3
2
1
CO600.2
CO800.1
CO500.1
CO300.2
5
4
4
5
CO600.4
1
1
2
3
2
4
5
1
11
10
9
8
7
6
5
4
3
2
2
3
1
4
5
. Speaker Connections - accepts up to 2 AWG speaker wire .
2 . 2 ATC Fuses - protects the amplifier from over current situations .
3 . Power Connections - accepts up to 4 AWG power cables .
4 . REM Remote Turn-on Input - turns on/off the amplifier when fed Switched 9 - 5
V+ .
5 . Ground Connection - accepts up to 4 AWG ground cable .
CEA SPECIFICATIONS
CO500 .
Power Output: 75 Watts RMS x at 4 ohms and < % THD+N
Signal to Noise Ratio: -80 dBA (reference Watt into 4 ohms)
Additional Power: 250 Watts RMS x at 2 ohms and < % THD+N
CO800 .
Power Output: 300 Watts RMS x at 4 ohms and < % THD+N
Signal to Noise Ratio: -75 dBA (reference Watt into 4 ohms)
Additional Power: 400 Watts RMS x at 2 ohms and < % THD+N
