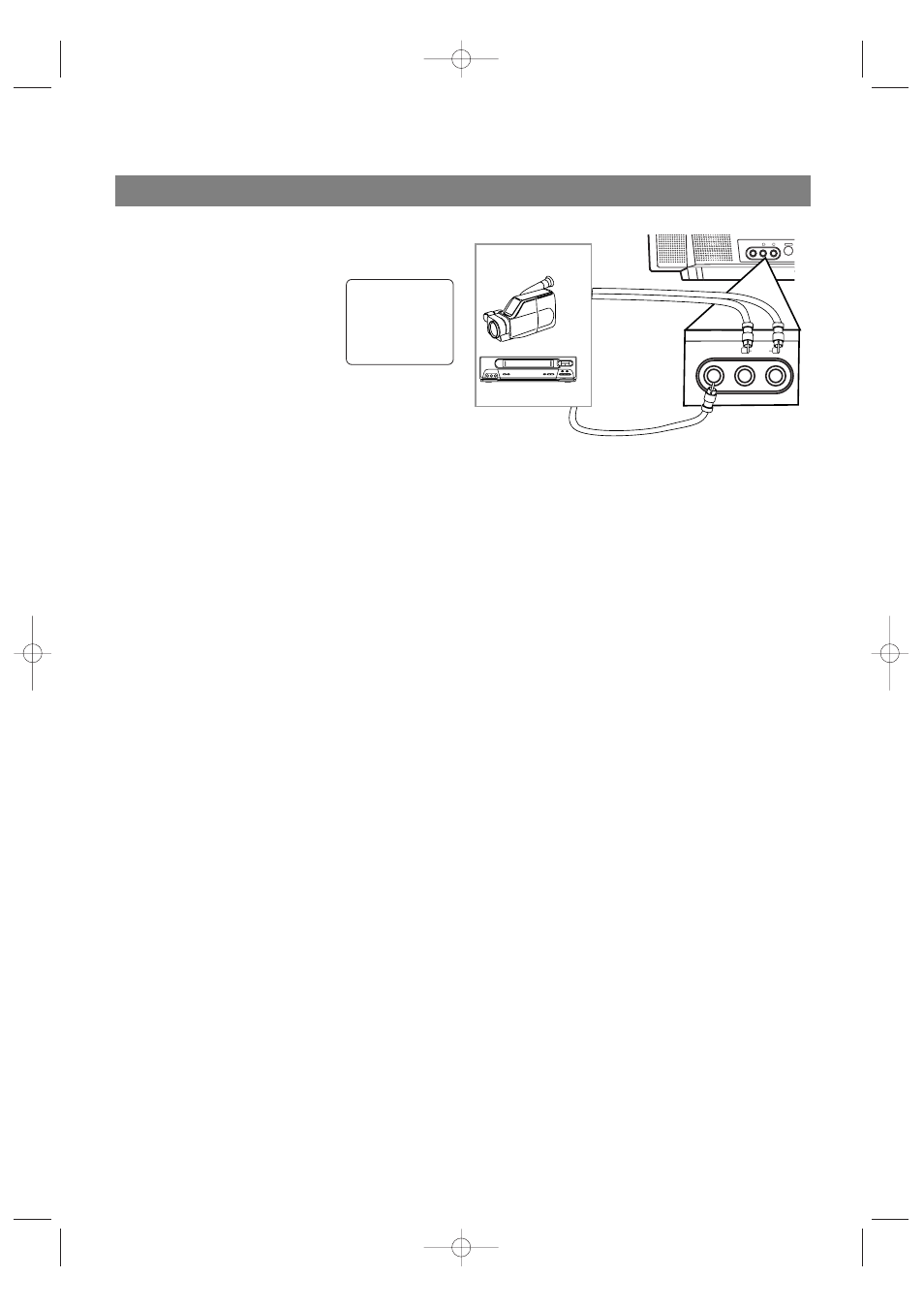

CONNECTING TO EXTERNAL INPUT JACKS
When you watch a program recorded on an another
source (VCR or video camera), use the audio/video
input jacks on the front of the TV/DVD.
Connect the audio/video output
jacks of another source to the
AUDIO L/R and VIDEO jacks of
this TV/DVD. Then press SELECT
until "AUX" appears on the screen.
NOTE:
• When you connect a monaural VCR (another
source) to this TV/DVD, connect the Audio output
jack of the monaural VCR (another source) to the
AUDIO L jack of this TV/DVD. The audio will
output in both L and R channel equally.
VIDEO L R AUDIO POWER
VIDEO L AUDIO R
[Another source]
To the audio
output jacks
Audio/Video
cables
(not supplied)
etc.
To the video
output jack
[Front of the TV/DVD]
AUX
[Fig. 6]
