Electrical connection, En-8, Wiring the inverter – Omron Healthcare VARISPEEDF7 User Manual

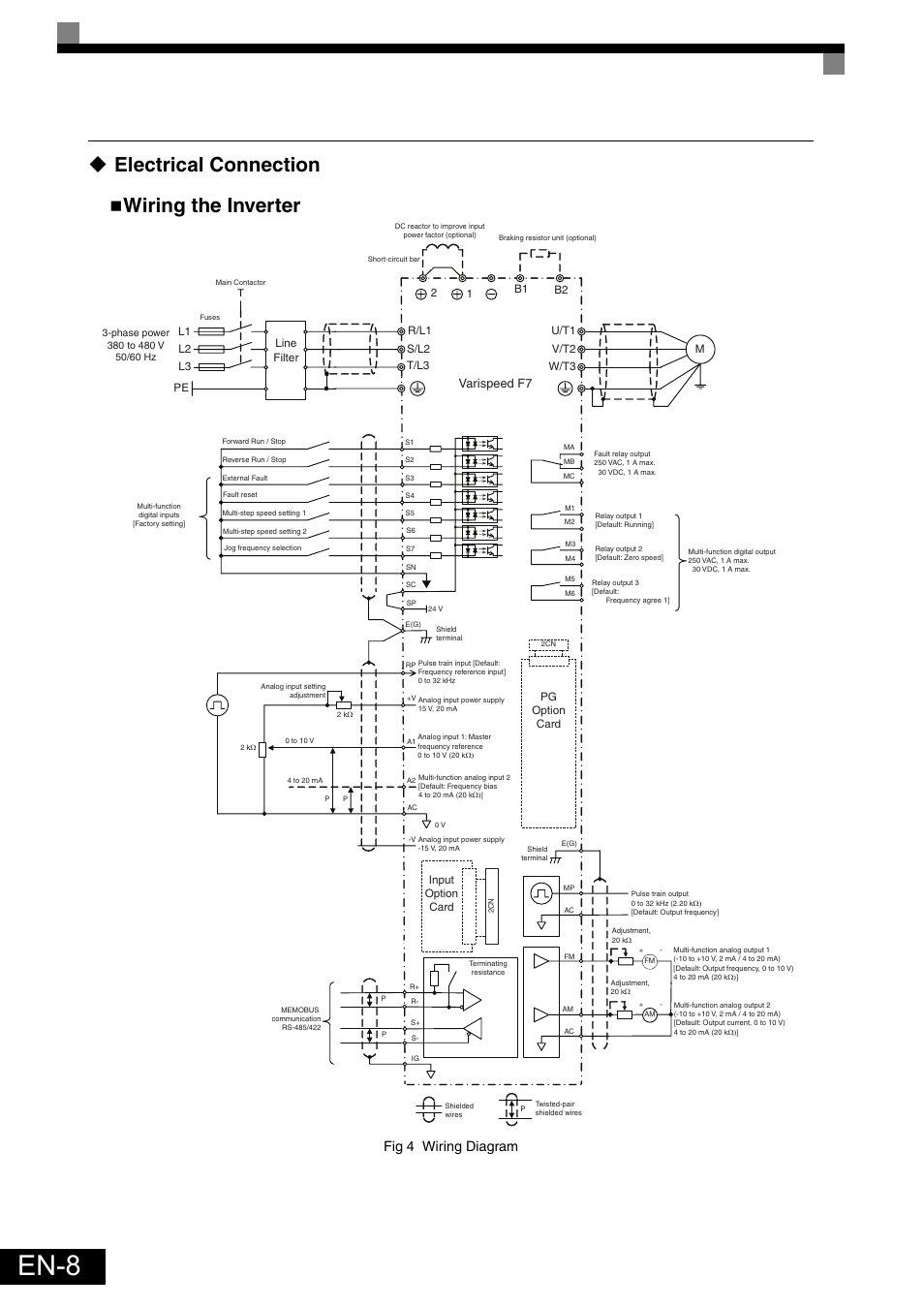

Page 9: Fig 4 wiring diagram, Va ri s peed f7, Line filter, Pg option c a rd, Inp u t option c a rd

Text mode
Original mode

Electrical connection, En-8, Wiring the inverter | Fig 4 wiring diagram, Va ri s peed f7, Line filter, Pg option c a rd, Inp u t option c a rd | Omron Healthcare VARISPEEDF7 User Manual | Page 9 / 25
