Ohlins FG 670 - Manual (Page 25)

1 01654-09 1 Piston holder
2 00530-22 1 Shims
3 01149-01 1 Wave washer
4 00525-18 2 Shims
5 - 1 Washer See spec. card
6 - - Shim stack (comp.) See spec. card
7 01447-02 1 Piston ring
8 02061-03 1 Piston
9 - - Shim stack (reb.)
10 - 1 Washer See spec. card
11 01674-01 2 Washer
13 01675-01 1 Nut
Pos. Part No. Pcs. Description Type/remarks

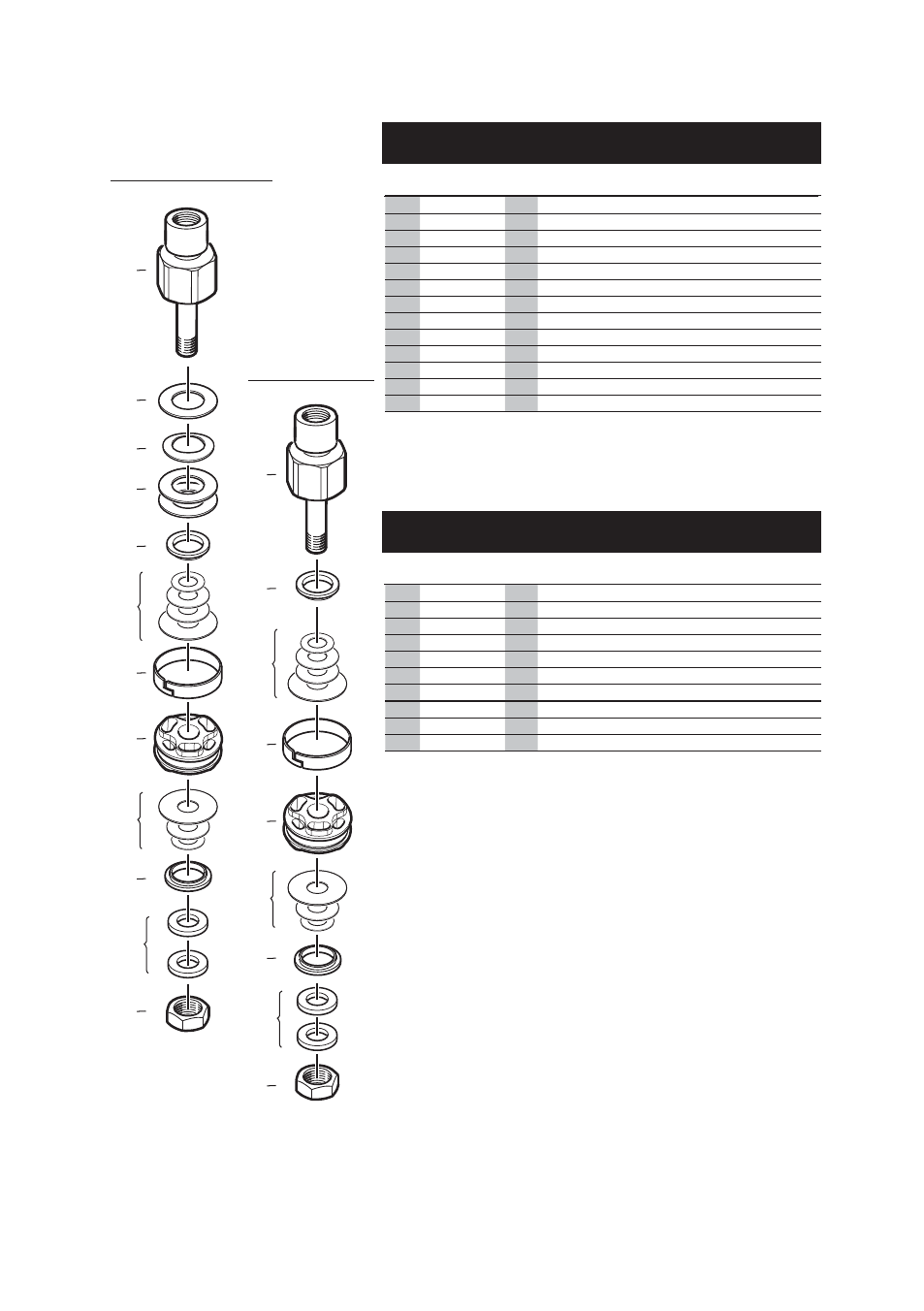

Spare parts list, Compression valve (LH)
3
Compression valve
2
1
4
5
6
7
8
9
10
11
13
Rebound valve
14 01654-09 1 Piston holder
15 - 1 Washer See spec. card
16 - - Shim stack (comp.) See spec. card
17 01447-02 1 Piston ring
18 02061-03 1 Piston
19 - - Shim stack (reb.) See spec. card
20 - 1 Washer (reb.) See spec. card
21 01674-01 2 Washer
22 01675-01 1 Nut
Pos. Part No. Pcs. Description Type/remarks
Spare parts list, Rebound valve (RH)
18
17
16
15
14
19
20
21
22
25
